agria Two-Wheel Tractor 3400; 3400 KL 41

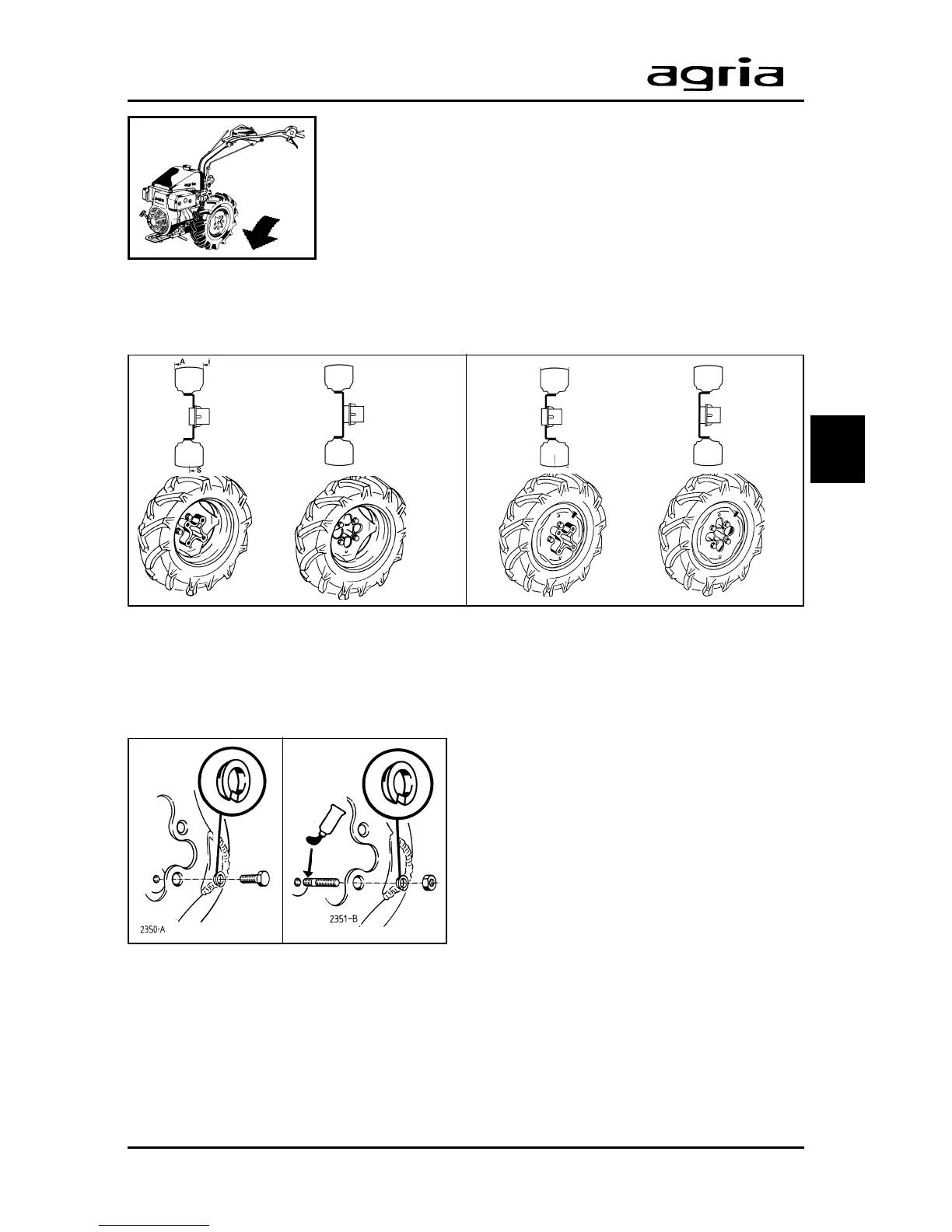

Drive-Wheels
For full tractive power, mount wheels with pointed parts
of lugs showing in driving direction (wheels seen from
above). Fit the countersunk side of spring-lock washer
into countersink-type holes of disk wheel (see fig. “Wheel
Attachment Bolts”).
The wheels can also be mounted either on their inner or outer sides for variable
track widths (see track widths table, p
26+27).
Differential Version
The drive-wheels are mounted onto the inner or outer part of the hub adapter,
depending on their use.
Wheel Attachment Bolts
Version A wheel bolt with spring-lock
washer.
Version B locking bolt with spring-lock
washer and wheel nut.
Screw short thread end of locking bolt
tightly into hub, if possible, glue with
LOCTITE 270 (or similar glue).
Fit countersunk side of spring-lock
washer onto disk wheel.
On a new machine or after wheel change, re-tighten wheel bolts and nuts after
the first 2 operating hours with 100 Nm. Re-tighten bolts and nuts in each mainte-
nance.
Snow Chains
When working with snow chains fitted on wheels, observe manufacturer’s instruc-
tions, make sure there is sufficient clearance between chains and machine parts.
3. Devices and Operating Elements
3
Loctite
270
A B
