38 agria Two-Wheel Tractor 3400; 3400 KL

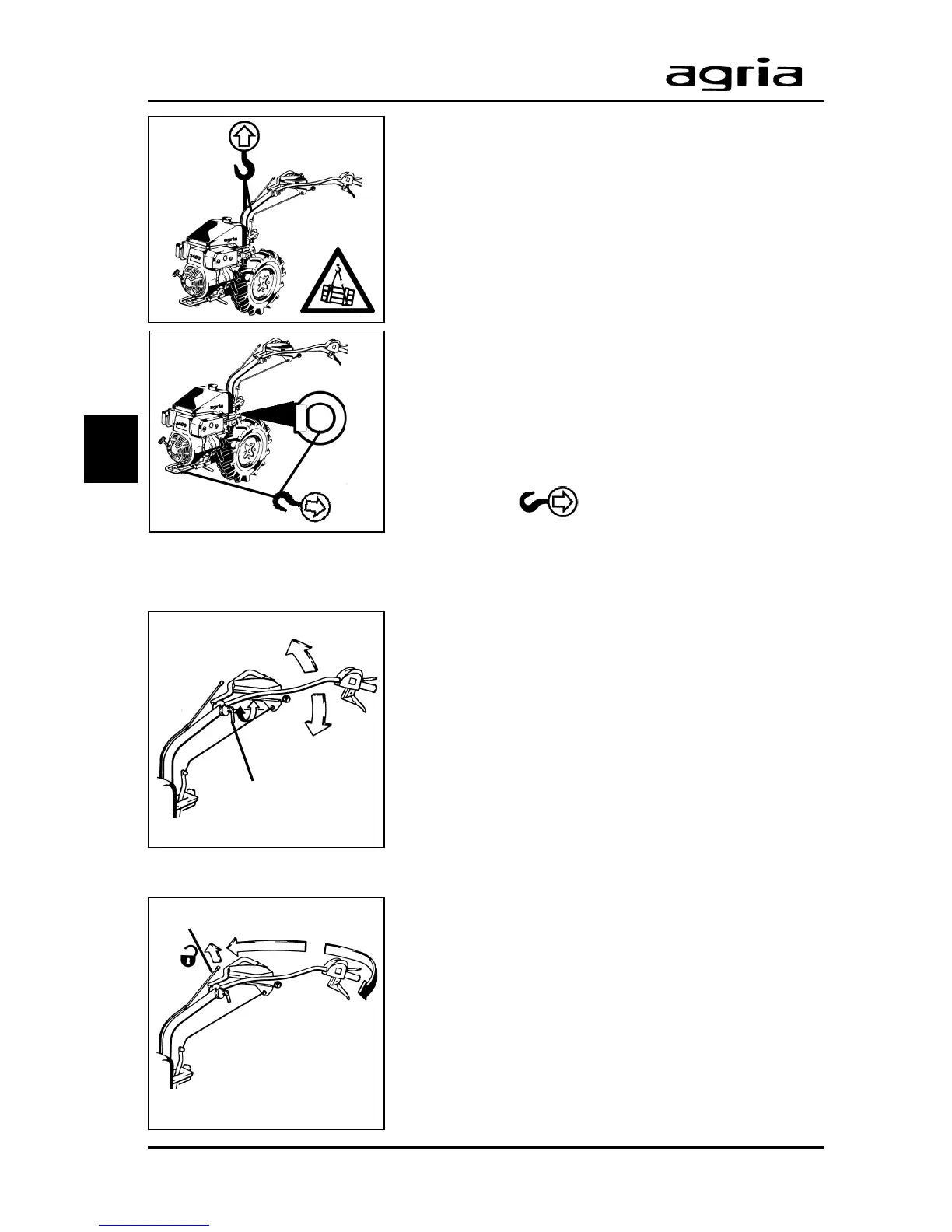

Loading strap
When loading the machine and when hanging the
retaining rope into place for work on slopes a loading
strap must be placed around the handlebar - ensure
that the bar locking lever is not bound.
Check loading belt for damage; replace it, if
necessary.
Do not use any loading devices with sharp edges
(e.g. sharp-edged hooks, lugs etc.).
Never walk or remain under moving loads. Dan-
ger!
Fixing Points
For towing away, recovering and tying down and to
ensure a safe transport, use the
fixing points
at the connection flange and
weight holder.
Steering Handle
W
Never re-adjust a steering handle when the
machine is in operation – danger!
Steering Handle Height Adjustment
l
Loosen clamping lever (5) until the notches are
free.
l
Bring steering handle (A/4; C/4; E/4; G/4) to the
desired height and fit it in the appropriate notch.
l
Re-tighten clamping lever.
Steering Handle
Side Adjustment
From normal centre position the steering handle
can be swivelled 30° to the r ight or left.
l
Push up locking lever (B/2; D/2; F/2; H/2) and
swivel steering handle to the right or left into desired
position.
l
Push locking lever back down and swivel
steering handle slightly to the left and right until it
locks into place.
3. Devices and Operating Elements
3
5
2
