agria Two-Wheel Tractor 3400; 3400 KL 39
Swivel Steering Handle
W
Only swivel steering handle
when the engine is shut off.
For mounting front attachment, swivel
steering handle 180°.

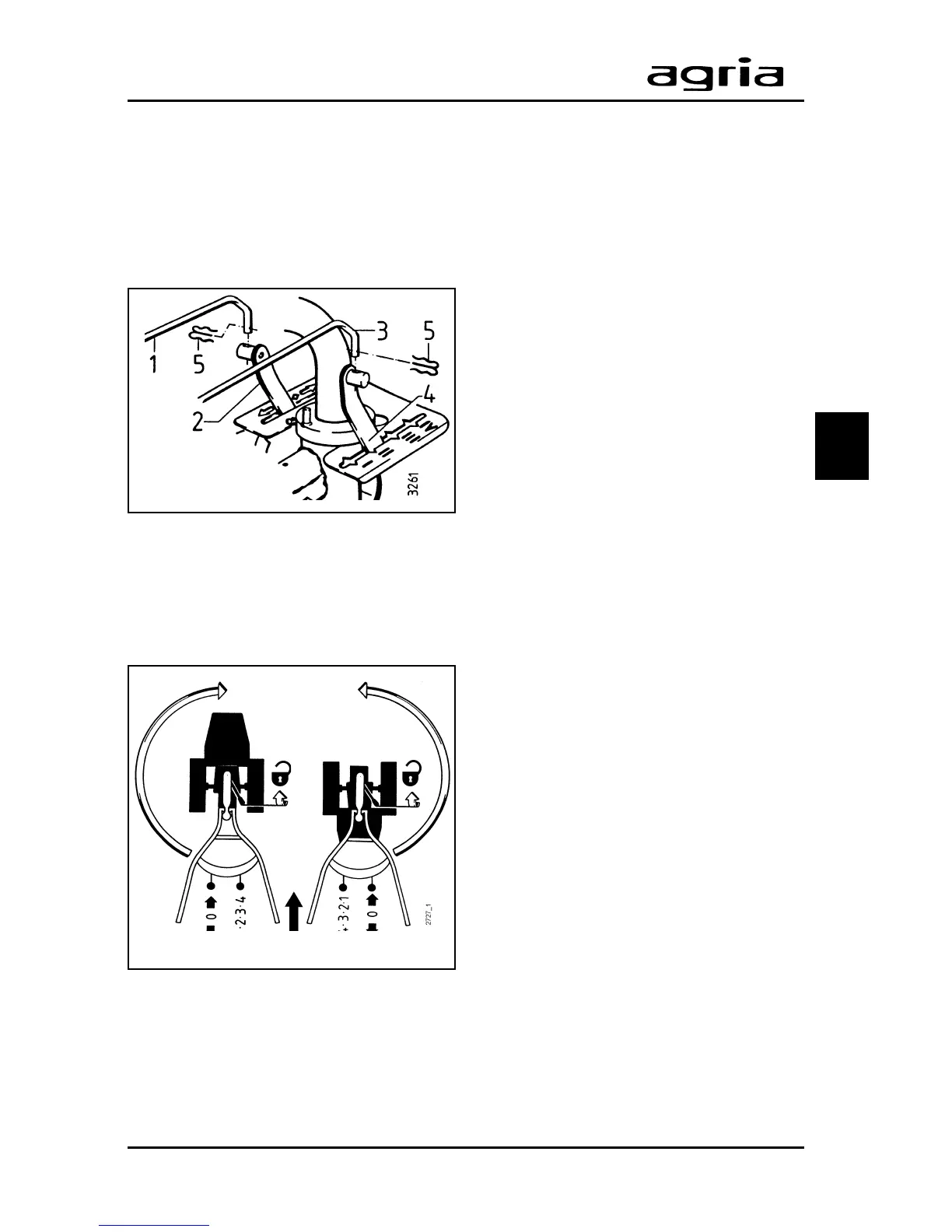

l Remove W-clips (5) from gear
shifters (1+3), using ring hook provided
in tool kit.
l Push locking lever (B/2; D/2; F/2; H/2)
up. At the same time swivel steering
handle clockwise 180° to the r ight (see
figure below).
l Push locking lever back down and
slightly rock steering handle to the left
and right until it locks into place.
l Reconnect both gear shifters with
outer shift levers (2+4) and secure with
W-clips.
I
Note: The gear-shift ball han-
dle is now located on the left
side of the steering handle. The FR-ball
handle is now on the right.
For 1st gear, now shift forwards, for 4th
gear backwards (looked into driving di-
rection).
For forward speed, you still shift for-
wards, for reverse backwards.
Steering handle side adjustment
(approx. 30°) is also possib le with steer-
ing handle swivelled for front attach-
ments.
I
On steering brake clutch ma-
chines, re-route the cables that
operate the steering brake clutch to en-
sure the right steering brake lever acts
on the right wheel, etc. – see following
page.
Swivel back the steering handle
In the same order but anti-clockwise.
3. Devices and Operating Elements
Driving direction
