Agria 3400 - Lever Adjustments (Clutch, Diff., Brake)

agria Two-Wheel Tractor 3400; 3400 KL 75
5. Maintenance
Adjustments on Levers
Check clutch play or clutch adjustment each time you operate the machine. If
necessary, re-adjust (especially after commissioning the machine, during break-
in period, and after exchanging brake pads).
Clutch: .................................... X = 0 mm
The switch for the solenoid clutch has a
short shifting travel and in order that its function
can be guaranteed the clutch lever must al-
ways be located at the lever bearing when it is
in a released state.
! = The Bowden cable must be placed in the hand
lever support in the bottom position!
Diffential gear: ..................X = 3 - 5 mm
! = The Bowden cable must be placed in the hand
lever support in the upper position.
Lenkbremse: ....................X = 3 - 5 mm
! = The Bowden cable must be placed in the hand
lever support on in the upper position.

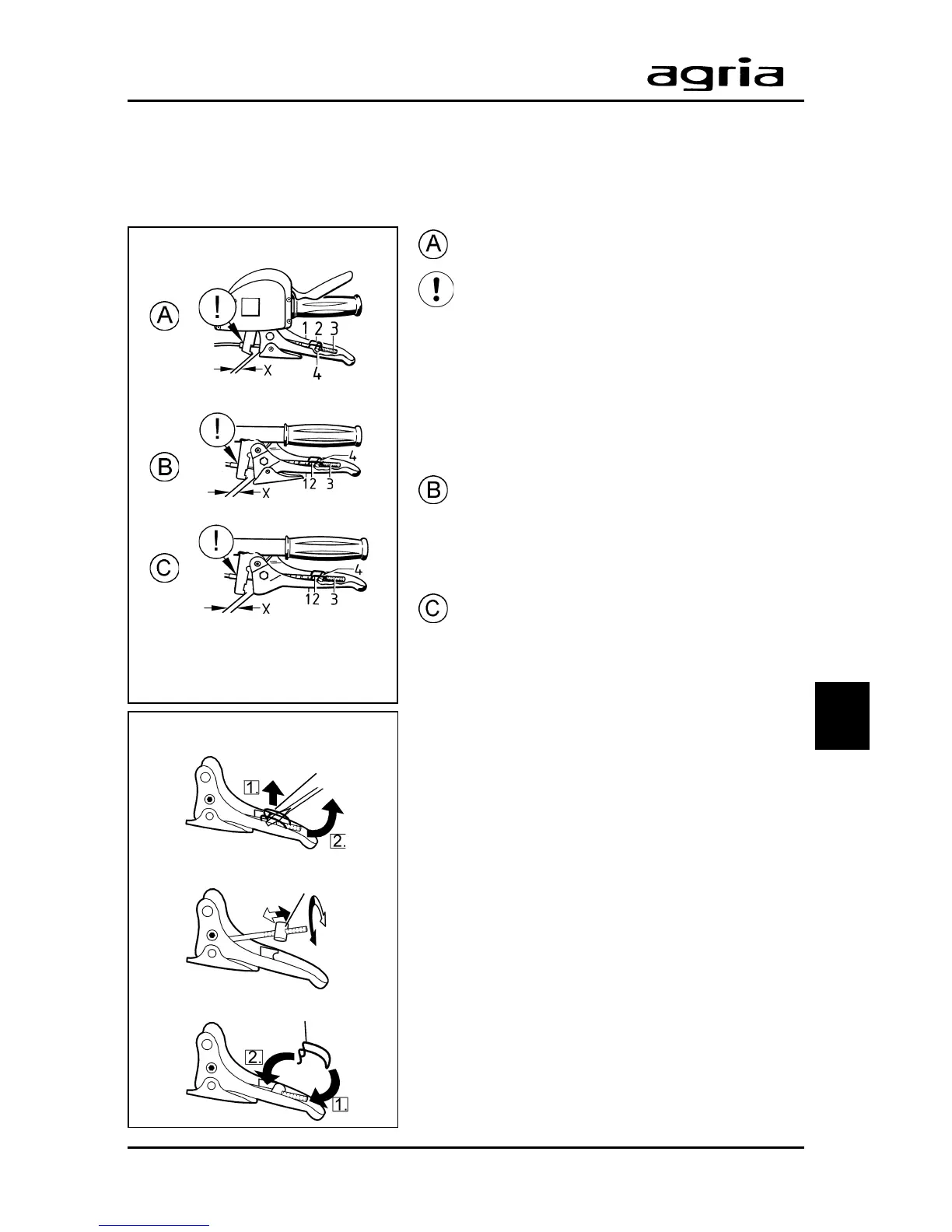

Adjustment:
1. Remove retaining spring (2)
2. remove cable end (3) and adjusting pin (4)
out of bracket in hand lever.
Adjust the adjusting pin (4) (+ -) to a play of
X.
1. Place cable end and adjusting pin back
into bracket
2. fit retaining spring (2).
1 Hand lever
2 Retaining spring
3 Threaded end of cable
4 Adjusting pin
