76 agria Two-Wheel Tractor 3400; 3400 KL
5. Maintenance
Safety Hillholder
Differential version, but not Overdrive
l
Every time you start operation, check the safety
hillholder and hand brake on proper function.
The brake must be fully effective when the
clutch lever is pulled in and the ratchet is
engaged.
When the clutch lever is pulled in half-way
the brake must be released.
Setting is made using the adjusting pin in the
clutch lever (see page 75) - the setting of the
clutch may, however, not be affected by this.
In cases where the setting with the adjusting
pin is insufficient the basic setting on the disc
brake housing must be changed.
Basic setting of the Disc Brake

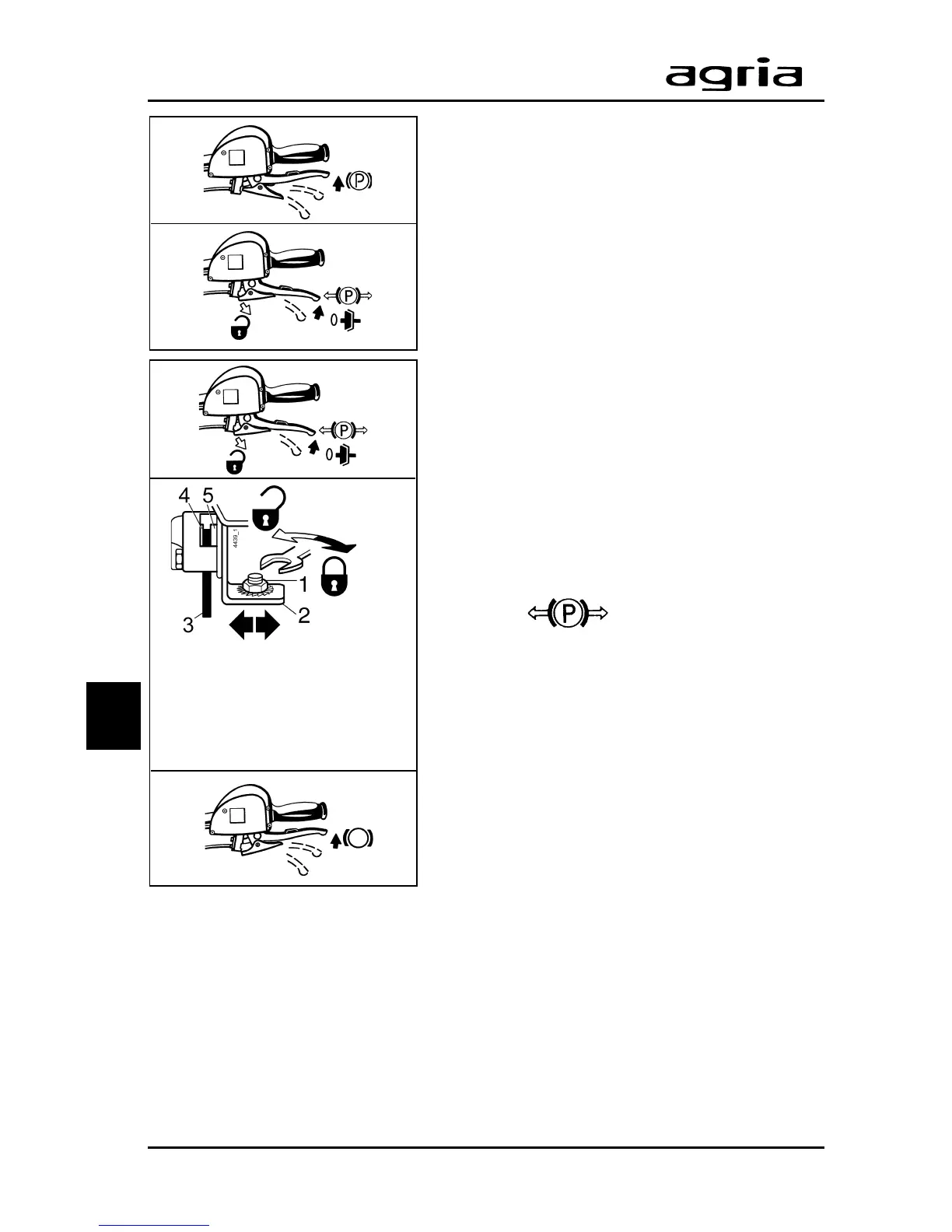

Set the clutch lever to the position "Brake
released" and hold.
Loosen the hex head nuts (1) on both sides.
Move the park brake carter against the brake
disc (3) by a slight pressure on the brake carter
until the brake shoe (4) fits slightly.
Fasten the hex head nuts (1) on both sides.
Check the effectiveness of the brake, fine
set where necessary using the adjusting pin in
the clutch lever or readjust.
Check the brake free wheel.
l
F-R shifter on "idle"
l
The brake disc must turn easily by hand, re-
adjust if necessary.
1 Hex head nut
2 Angle for hillholder
3 Brake disc
4 Front brake lining
5 Back brake lining
