36 agria Two-Wheel Tractor 3400; 3400 KL

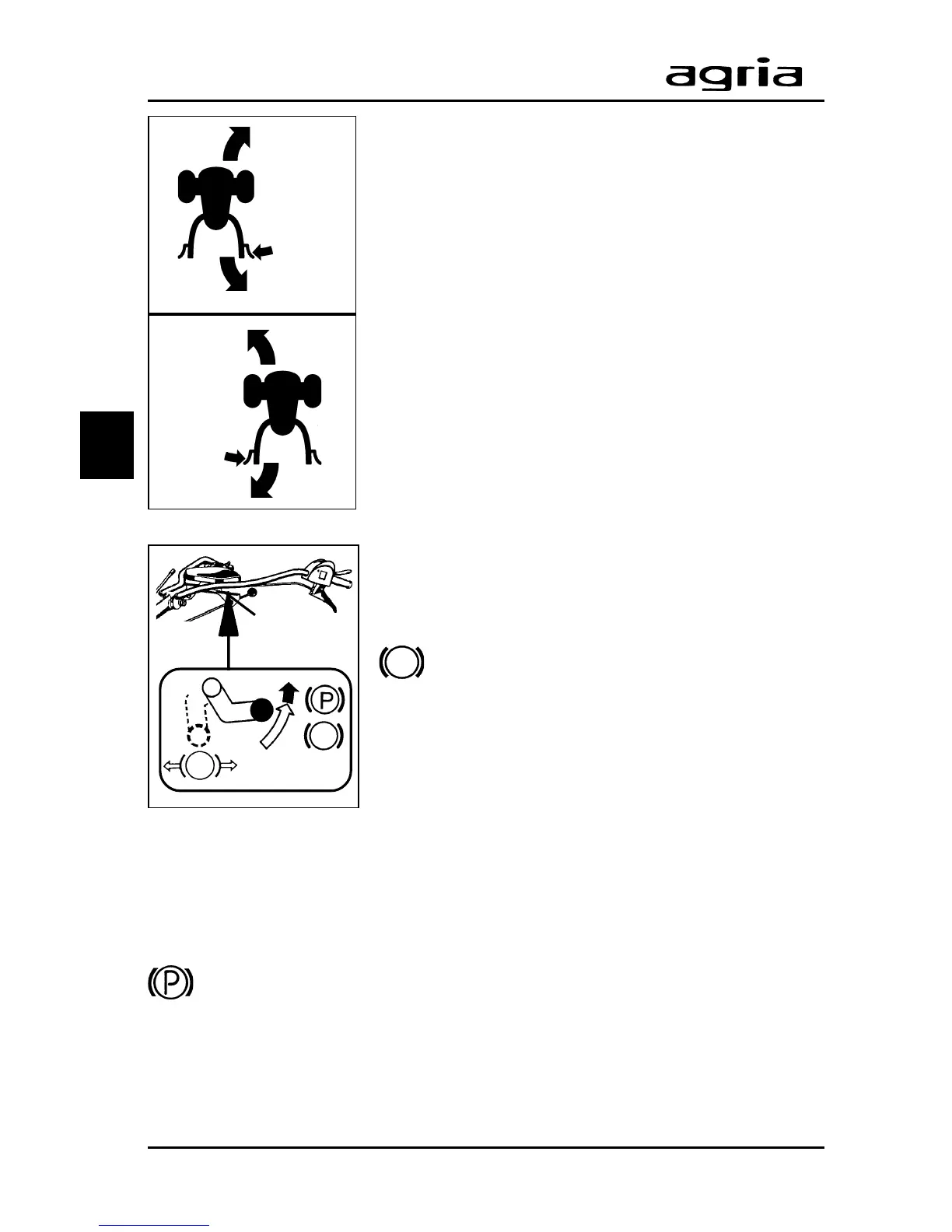

Single-Wheel Steering Brake Clutch
For easy turning, the two-wheel tractor is equipped
with an easy-use steering brake clutch for both wheels.
To turn right, pull lever (F/13 or H/13) to decelerate
the right drive-wheel. With forward speed engaged,
the machine turns right.
To turn left, pull lever (F/12 or H/12) to decelerate the
left drive-wheel. With forward speed engaged, the ma-
chine turns left.
W
When turning on banks, always turn the
machine towards the slope.
I
After swivelling the steering handle through
180°, reroute the cables that operate the steer-
ing brake clutch to ensure the right steering brake
lever acts on the right wheel, etc. (see page 40).
Central Brake
To slow down or park the machine on hilly ground,
use the combined central hand brake.
Central Brake
Swivel the eccentric lever (F/14 or H/14) backwards
and up – both drive-wheels are braked and clutch is
disengaged.
Release the eccentric lever and the lever swivels back
to the original position – brake is released.
3. Devices and Operating Elements
Steering Brake Clutch Version
3
F/12;
H/12
F/13;
H/13
F/14; H/14
I
If the attached implement is prone to overload, you can operate the central
brake without engaging the clutch. This disengages the wheel drive but not
the PTO.
Once the overload is overcome, release the central brake to re-engage the wheel
drive.
Hand Brake
Swivel the eccentric lever (F/14 or H/14) backwards and up beyond the dead
centre. The eccentric lever automatically comes to a stop – both drive-wheels are
blocked and clutch is disengaged. To release hand brake, swivel eccentric lever
back to original position – brake is released.
