48 agria Two-Wheel Tractor 3400; 3400 KL
Mounting and Dismounting Implements
W
Only mount and dismount
implemens with engine
off.

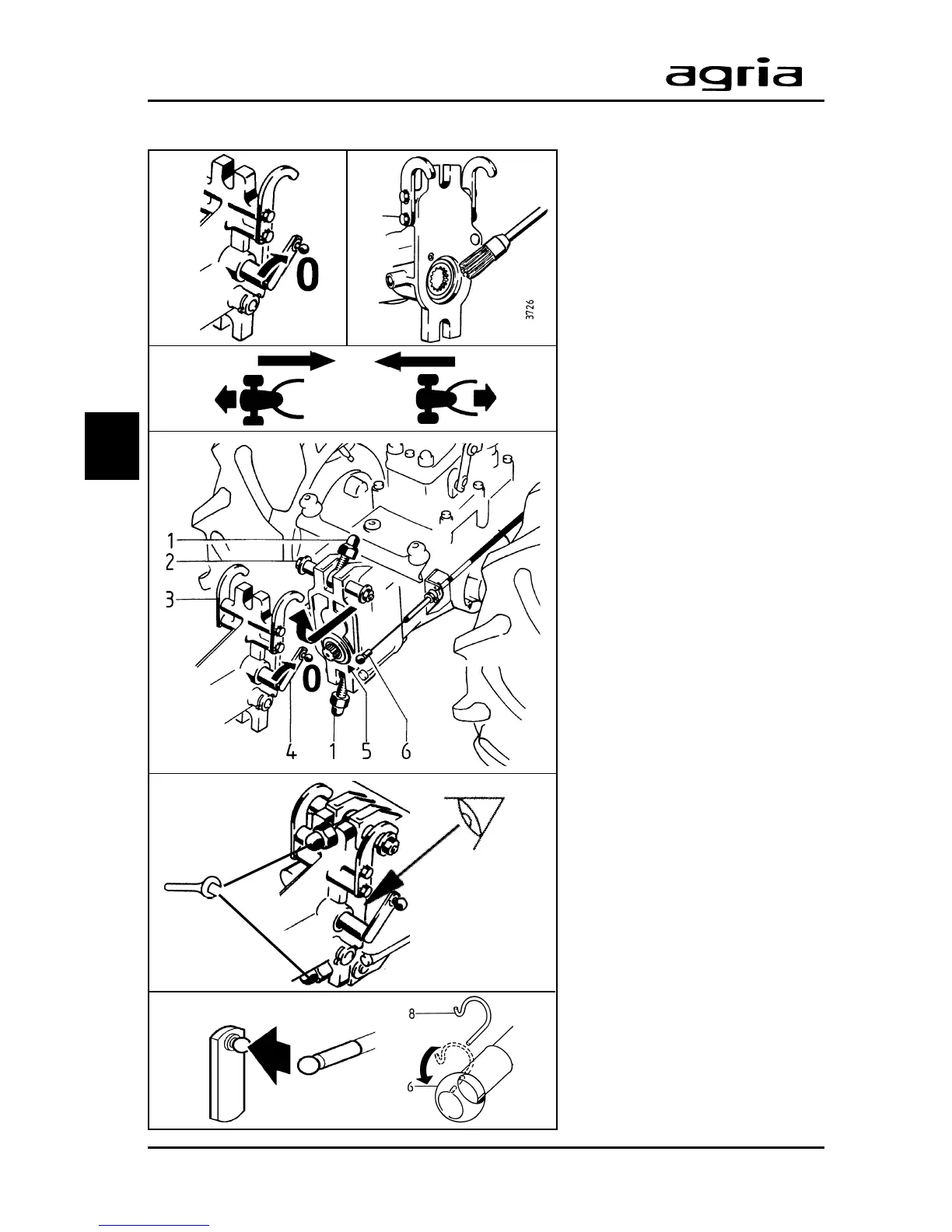

Mounting Implements
Ensure that coupling surfaces
on two-wheel tractor and imple-
ment are clean.
For PTO driven implements,
set shift lever (4) on implement
to position “0”.
Coupling sleeve should be
slightly greased with bio-grease.
When mounting hoeing and
tilling implement, set FR-lever
to “0”, to prevent safety pin for
reversing lock from protruding
from coupling flange on base
machine.
Slide pegs (2) of base ma-
chine into hooks (3) of imple-
ment.
Fold both eye bolts (1) over
coupling flange.
Note:
l
Are flanges (5) properly cen-
tred?
l
Are flanges flat fitted?
l
Tighten cap nuts evenly.
For PTO driven implement,
press PTO link (6) onto shift le-
ver (4) until it locks into place.
Insert circlip (8) and secure.
For dismounting, proceed in
reverse order.
