agria Two-Wheel Tractor 3400; 3400 KL 37
PTO
The PTO (A/12; C/12; E/12; G/12) cannot be turned
off (i.e. it rotates whenever the engine is running).
PTO speed is changed on the PTO driven imple-
ments. However, the PTO speed shift lever (B/1;
D/1; F/1; H/1) is positioned on the two-wheel trac-
tor and is connected to the speed shift lever on the
implement via the PTO connecting stick (A/13; C/
13; E/13; G/13).
Exception: For hoeing/tilling attachments, the shift
lever is positioned on tilling drive for ease of use.

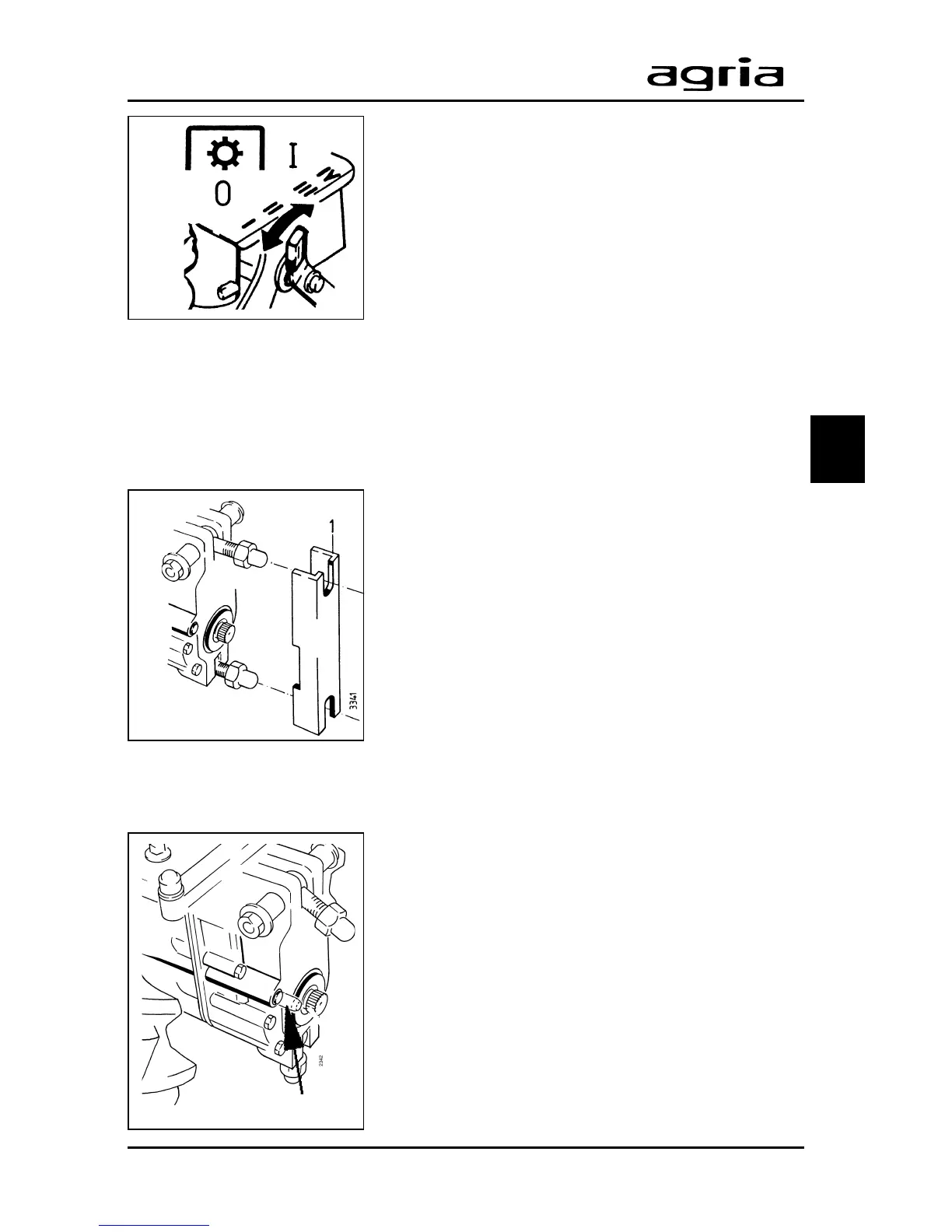

PTO Protective Cap
If no implements are mounted (e.g. trailer, plough,
harrow), clothes might be caught and wound up by
PTO. Therefore, PTO must be covered with PTO
protection cap.
Installing the cap:
l
Hold protection cap against mounting flange.
l
Fold both eye bolts into slots of protection de-
vice.
l
Evenly tighten both cap nuts.
For de-installation proceed in reverse order.
Reversing Lock
The two-wheel tractor is equipped with a reversing
lock (safety pin) for the hoeing attachment. This
lock prevents that PTO is engaged from hoing at-
tachment while the tractor is in reverse. Also, it pre-
vents that reverse gear is engaged while PTO is at
work.
l
When mounting the hoeing attachment, the FR-
lever must be set to idling position, too (Safety pin
on gearbox protruding approx. 5 mm).
3. Devices and Operating Elements
Safety pin
3
