3. Devices and Operating Elements
Steering Brake Clutch Version
Re-routing steering brake
clutch cables
On steering brake clutch machines it is neces-
sary to re-route the cables that operate the
steering brake clutch after the steering handle
was swivelled through 180° to ensure the r ight
steering brake lever acts on the right wheel,
etc.
l Remove the steering brake clutch cables (5)
at the bottom of the machine:
A Remove R-clip (4).
B Remove cables (5)
from retarders (3), pull-
ing them down and out.
C Swivel the cables out-
ward.
D Remove the cables
from the cross-bar (2).
l Re-attach each cable (5) to the opposite end
of the cross-bar and reverse the above order
to re-attach them to the retarders.
l Remember to refit the R-clip (4) to secure
the cables from working loose.

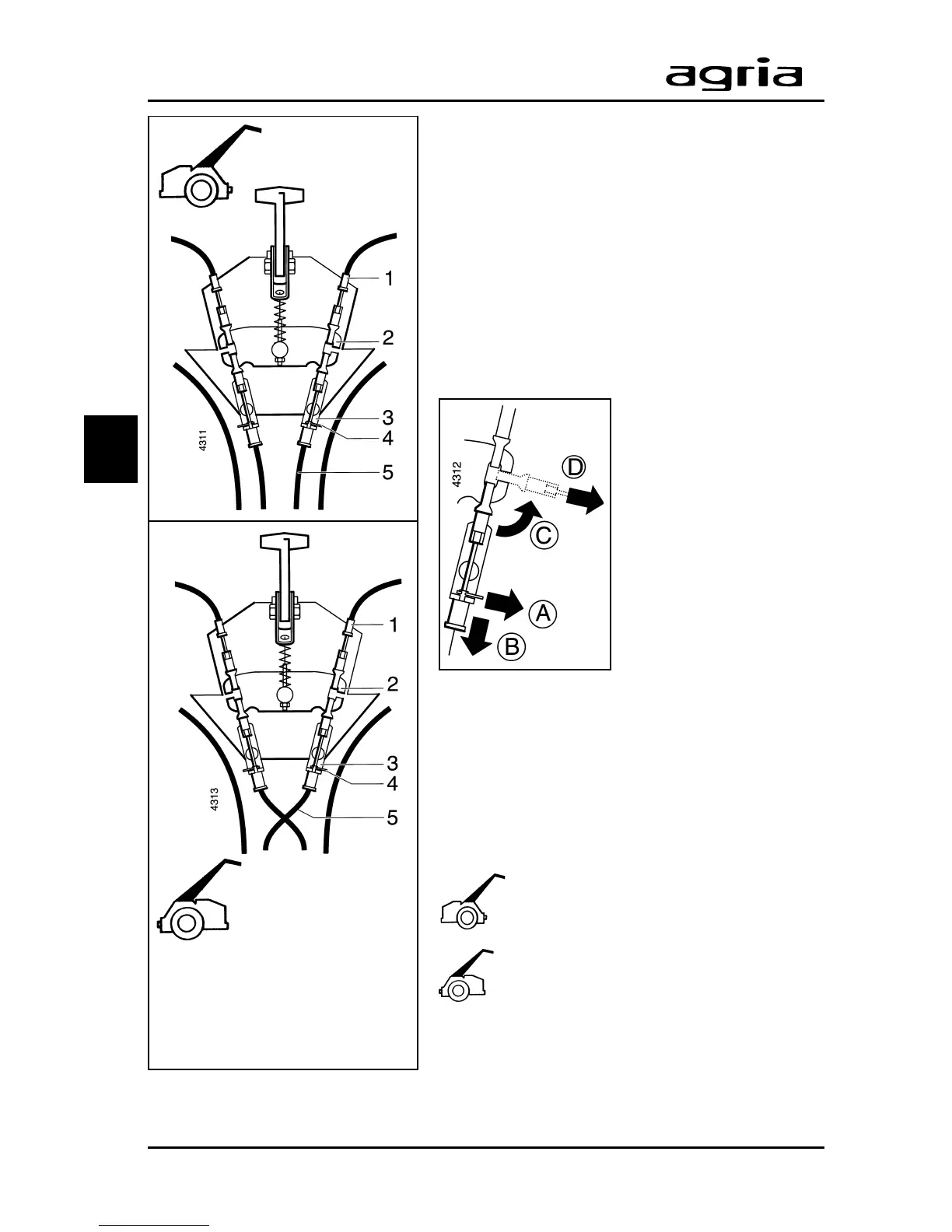

The illustration to the right illustrates the
location of the cables:
= two-wheel tractor operated as haul-
age machine or with rear-mounted at-
tachments.
= two-wheel tractor operated as tool
carrier with front-mounted attach-
ments.
1 Steering brake cable, top end
2 Cross-bar
3 Retarder
4 R-clip
5 Steering brake cable, bottom end
