Agria 3400 - Commissioning and Operation

agria Two-Wheel Tractor 3400; 3400 KL 61
4. Commissioning and Operation

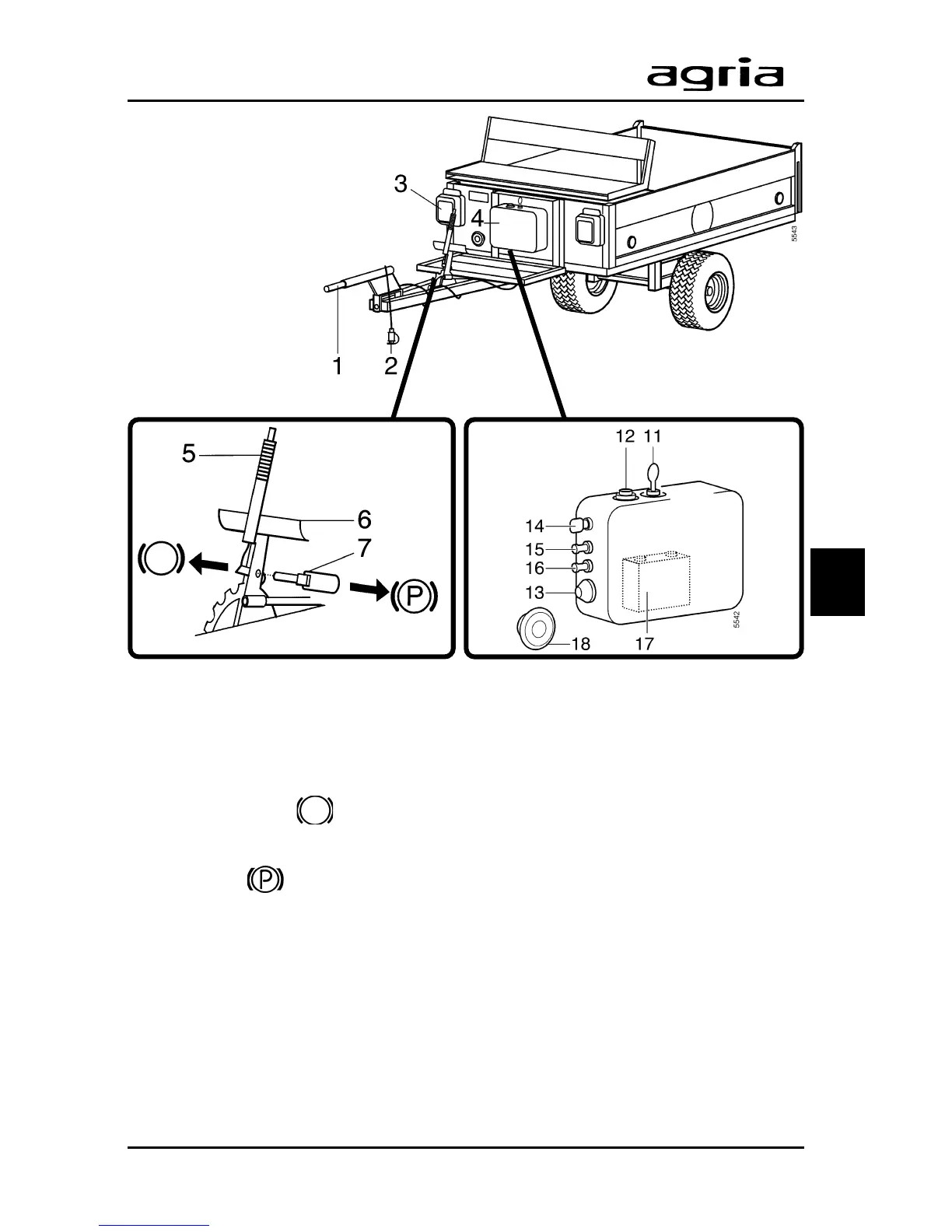

1 Drawbar
2 El. Connector
3 Type plate
4 El. Control box
5 Hand brake lever
6 Brake pedal
7 Linch pin
11 Control box lock
12 Horn push button
13 Warning light switch
14 Turn indicator light
15 Main switch
16 Light switch
17 Battery 12V
18 Horn
4
Setting the brake
The two-wheel trailer is equipped with
a combined operating/park brake. This
must be set accordingly.
Operating brake =
l Insert linch pin (7)
Park brake =
l Remove linch pin (7)
