22 agria Multi-Purpose Machine 400P
3. Devices and Operating Elements
3

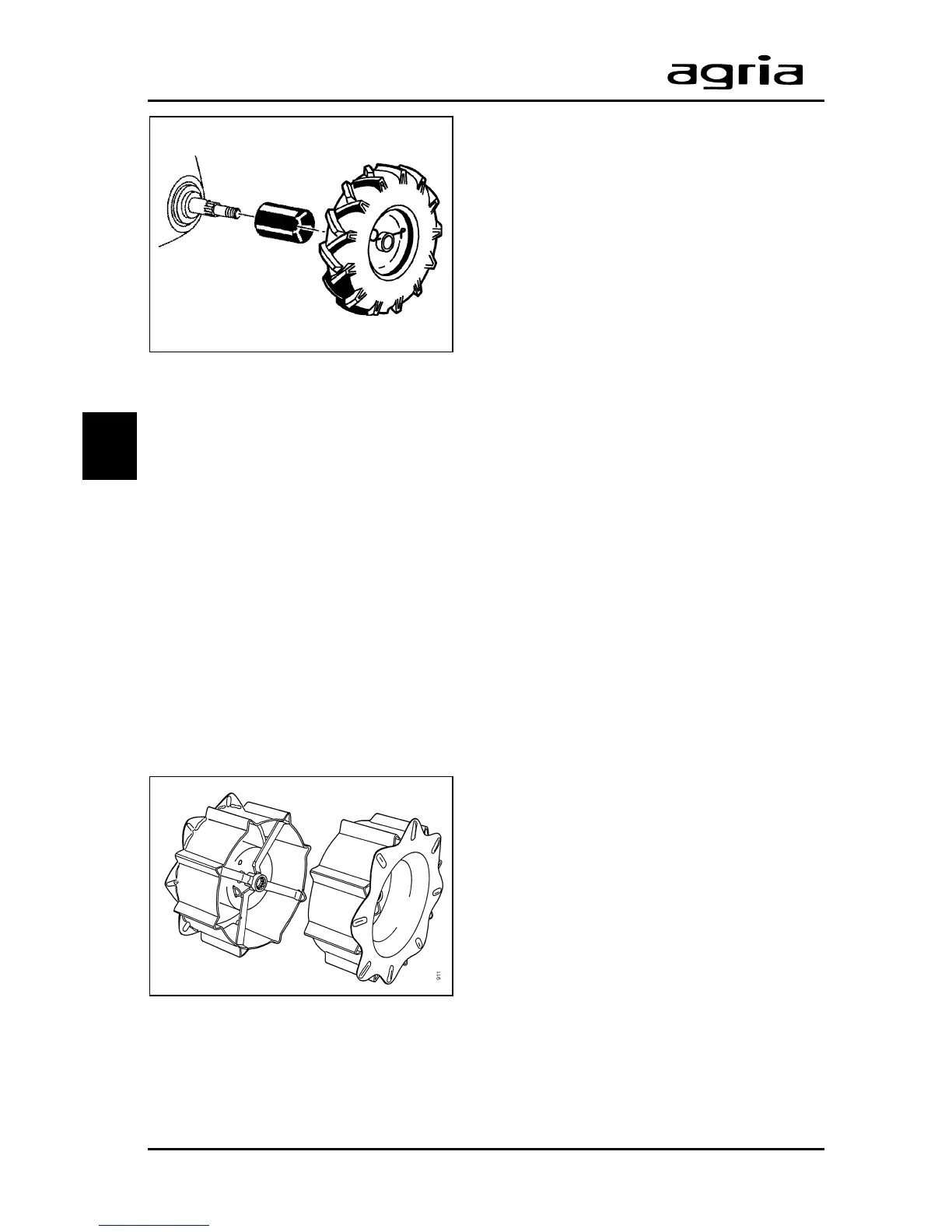

Anti-Winding Tubes
On both ends of the wheel-shaft, anti-wind-
ing tubes are mounted between transmis-
sion housing and drive-wheel (fig. M). Gen-
erally, these tubes prevent grass from wind-
ing onto shaft. Remove wound-on grass by
simply dismounting drive-wheels and anti-
winding tubes without tools.
Twin-Wheels
l Dismount single drive-wheels.
l Mount twin-wheels onto wheel-shaft (as
described in “Mounting Drive-Wheels”).
l Fit special anti-winding tubes onto
wheel-shaft of twin-wheels – ensure that
valves fit into recesses.
l Mount single drive-wheels onto full dog
points of twin drive-wheels.
Cage Drive-Wheels
l Dismount drive-wheels.
l Mount cage drive-wheels onto wheel-
shaft (as described in “Mounting Drive-
Wheels”).
I
l Rigid drive,
l neutral,
l drive with differential effect
can also be engaged with twin and cage
drive-wheels mounted.
M
