agria Multi-Purpose Machine 400P
23
3. Devices and Operating Elements

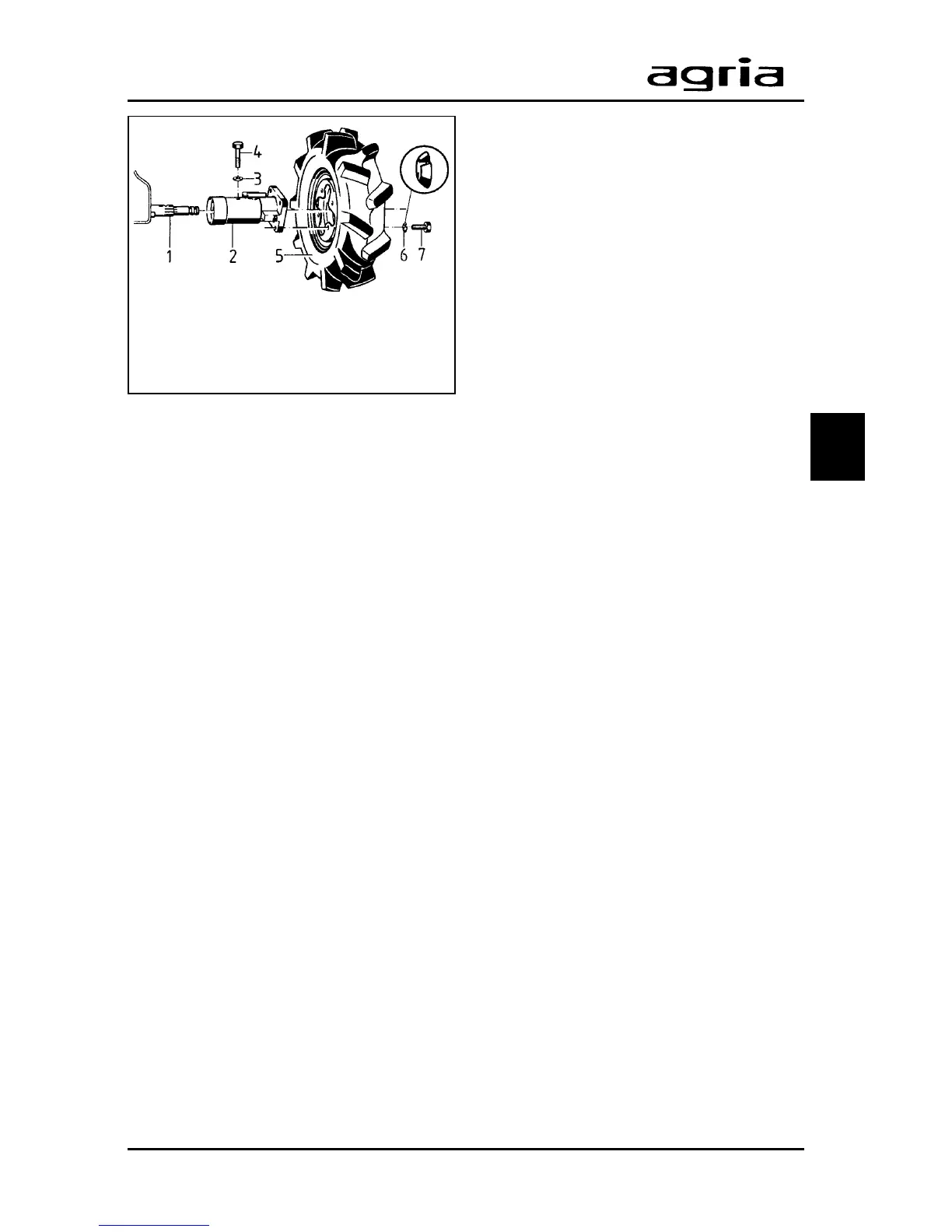

1 Wheel shaft
2 Differential hub
3 Star washer
4 Hex bolt
5 Drive-wheel
6 Bevel spring washer
7 Wheel bolt
3
Drive-wheels 4.00-8 Field tyre
with differential hubs
The differential hubs are to facilitate
steering and turning and are used for
ploughing and mowing
Fit the differential hubs
Push the differential hubs (2) on the
wheel shaft (1).
z
Insert the hex bolts (4) together with
the star washers (3) into the borings of
the hub pipe and wheel shaft and
tighten at a torque of 80 Nm.
z
Use wheel bolts (7) and bevel spring
washers (6) to fit the drive-wheels (5)
to the differential hubs (torque of wheel
bolts is 80 Nm).
For full tractive power, fit the drive-wheel
with the pointed parts of lugs showing
in travel direction (seen from above).
Remove the drive-wheels
To remove the drive-wheels reverse the
above process.
