Remote-controlled All-electric Tool Carrier agria 9700e
3 Devices and Operating Elements
3.1 Preparation of the machine
• Remove the machine from the packaging.
• Packaging should be recycled in an environmentally
friendly manner.
3.2 Basic functioning of the system
The complete unit comprises two main components: the imple-
ment carrier and the radio remote control.
The implement carrier is intended for the attachment and op-
eration of mounted implements
The energy to operate the machine is stored in the machine’s
rechargeable battery. The rechargeable battery can be
charged by means of battery chargers that are available from
Agria-Werke GmbH. The rechargeable battery supplies energy
to the electric traction motors and the electric drive motor of
the mounted implements.
The control unit and the radio receiver are located in a covered
electric box.

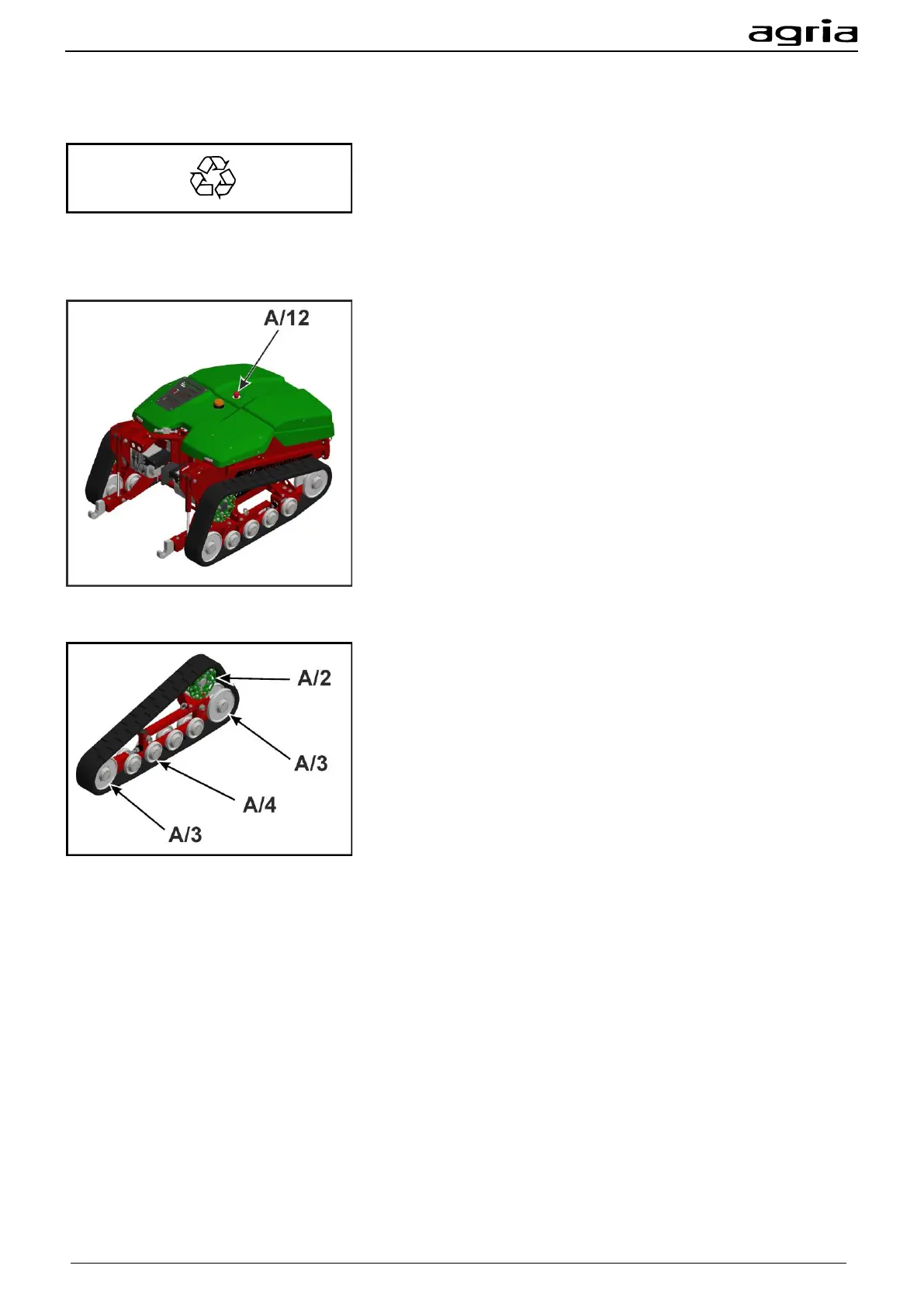

The machine is equipped with an EMERGENCY STOP switch
(A/12).
Crawler drives
The machine is driven by crawler drives. The crawler tracks
run on the drive sprockets (A/2), guide wheels (A/3), and trav-
elling wheels (A/4). The crawler tracks are tensioned with the
rear guide wheels. The crawler track tension is adjusted with
the tightening screws on the adjustable retainers of the guide
wheels, see page. 44.
If the machine is frequently used on slopes with gradients from
40° (when used with heavy mounted implements already from
30°), we recommend to equip the machine with crawler tracks
with field cleat profile (agria art.-no. 9620 011).
Transmissions and electric motors
The driving wheels (A/2) of the crawler tracks are fastened on
the planetary gears (A/16). The transmissions are driven by
the drive motors. The speed of the drive motors and thus the
travel speed of the machine are controlled via the remote con-
trol and the power electronics.
