Remote-controlled All-electric Tool Carrier agria 9700e
5.8 V-belt for mounted implement drive
Check the V-belt tension on the mounted implement drive and exchange
Make sure that the implement is switched off.
The V-belts are located behind the three-point mounting bracket on the rear of the partition panel. The
belts can be accessed via the maintenance flow on the underside of the machine.
Check the V-belt tension after every 25 hours of operation. For correct V-belt tension see section below.

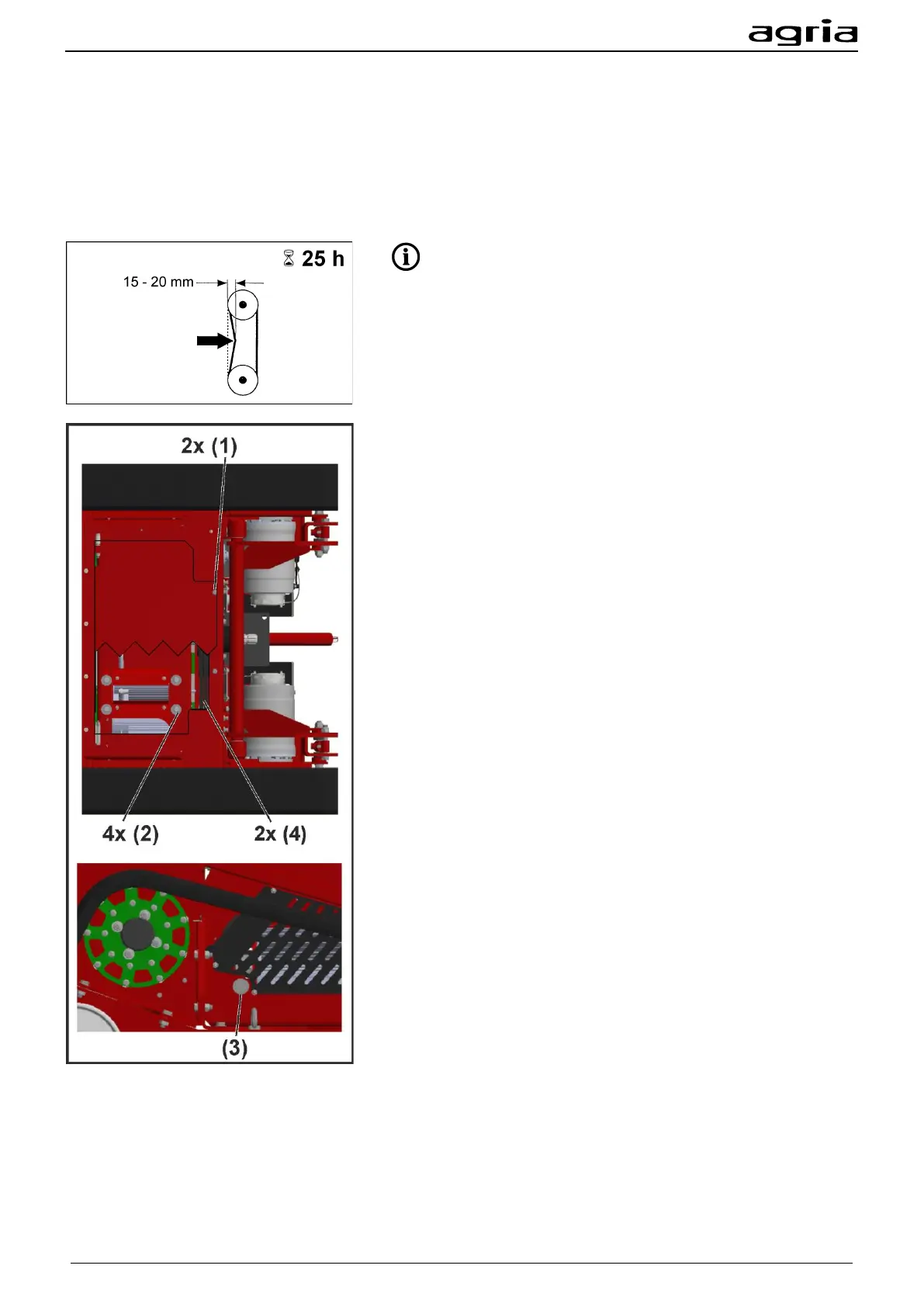

Correct V-belt tension:
The V-belt gives way by approximately 15 to 20 mm when you
press it down with your thumb.
Adjustment and belt replacement should be carried out by a
specialist workshop or by
- agria-Service -
To tension the V-belts, proceed as follows:
1. Undo the two screws (1) of the maintenance flap below the
machine (AF13).
2. Undo the four screws (2) of the electric motor carriage
(AF19).
3. Set the V-belt tension (4) with the adjusting screw (3) on
the left-hand side of the machine (AF24).
4. Once the desired V-belt tension (4) is reached, fix the car-
riage and close the maintenance flap.
5. Once more secure the screw (3) by lightly tightening it.
