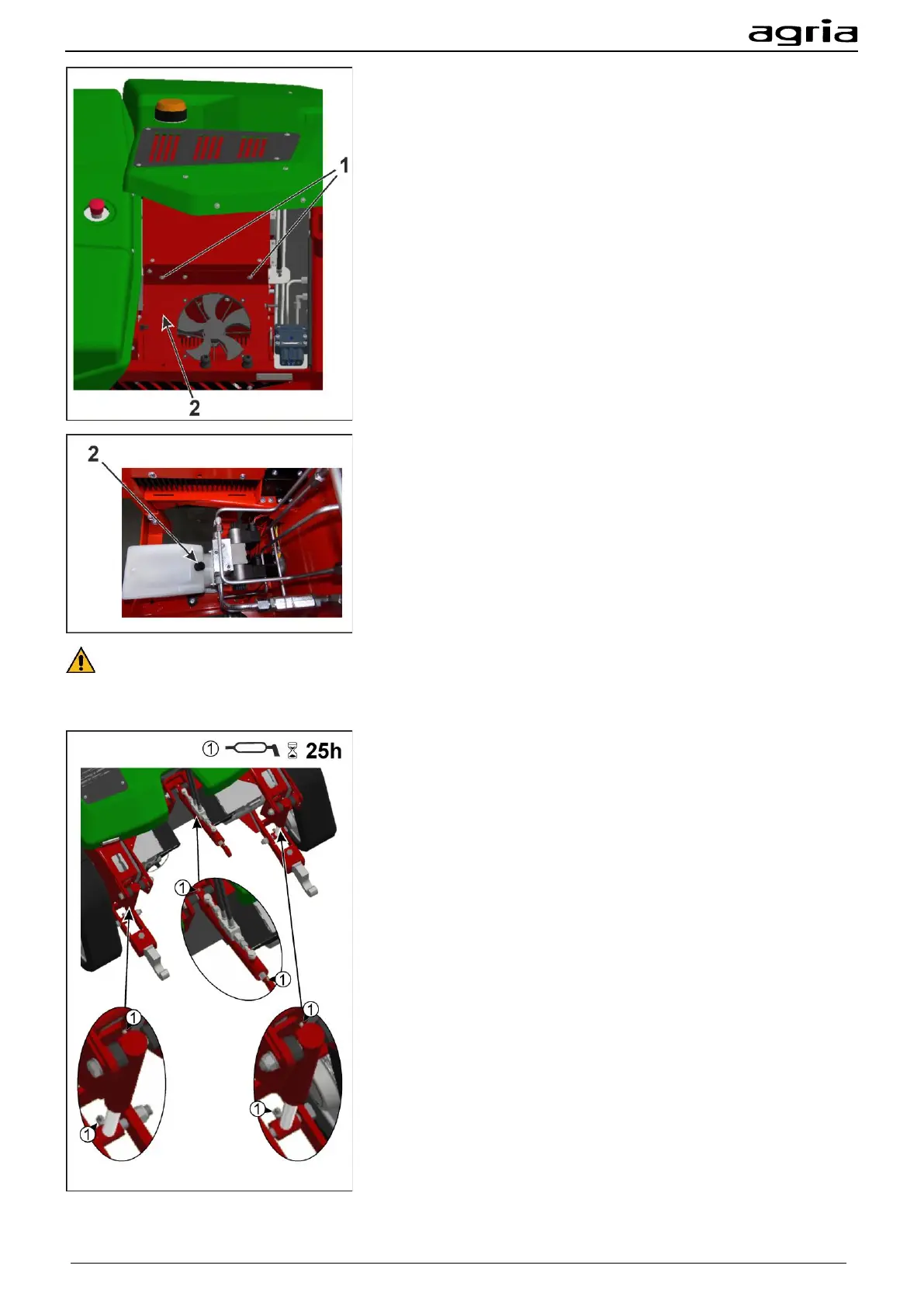

Topping up the oil level
Dismantle the filter cover of the air filter box (A/21) as shown
on page 42 .
Remove the wire mesh filter.
Dismantle the two round head hexagon socket screws (TX30)
(1). Carefully lift the air box. Pull off the fan plug (2). You can
now remove the air box.
Open the screw plug (2) to top up with hydraulic oil as shown
on page 42 .
Only carry out maintenance work on the hydraulic system when the machine has cooled down.
5.6 Lubrication points
Lubrication points
Lubricate the lift cylinder of the upper link and the two lift cylin-
ders of the lower link every 25 operating hours with a grease
gun.
