3.4 Remote control
The machine is controlled via the remote control.
The implement uses the frequencies approved in the country of use.
The range of the remote control is around 300 m maximum with optimal conditions such as battery level,
obstacles in the radio link, disturbances and interference from the environment etc.
The usual working range of the remote control is approx. 100 m, depending on the conditions.
In the interests of safety the remote control is set so that the engine is switched off as soon as the machine
leaves the range. This distance can therefore vary under different conditions.
The remote control is equipped with a tilt sensor. The remote control can only be operated in a horizontal
position. If the remote control is moved into an inclined position, the machine is switched off. A restart of
the machine is necessary.

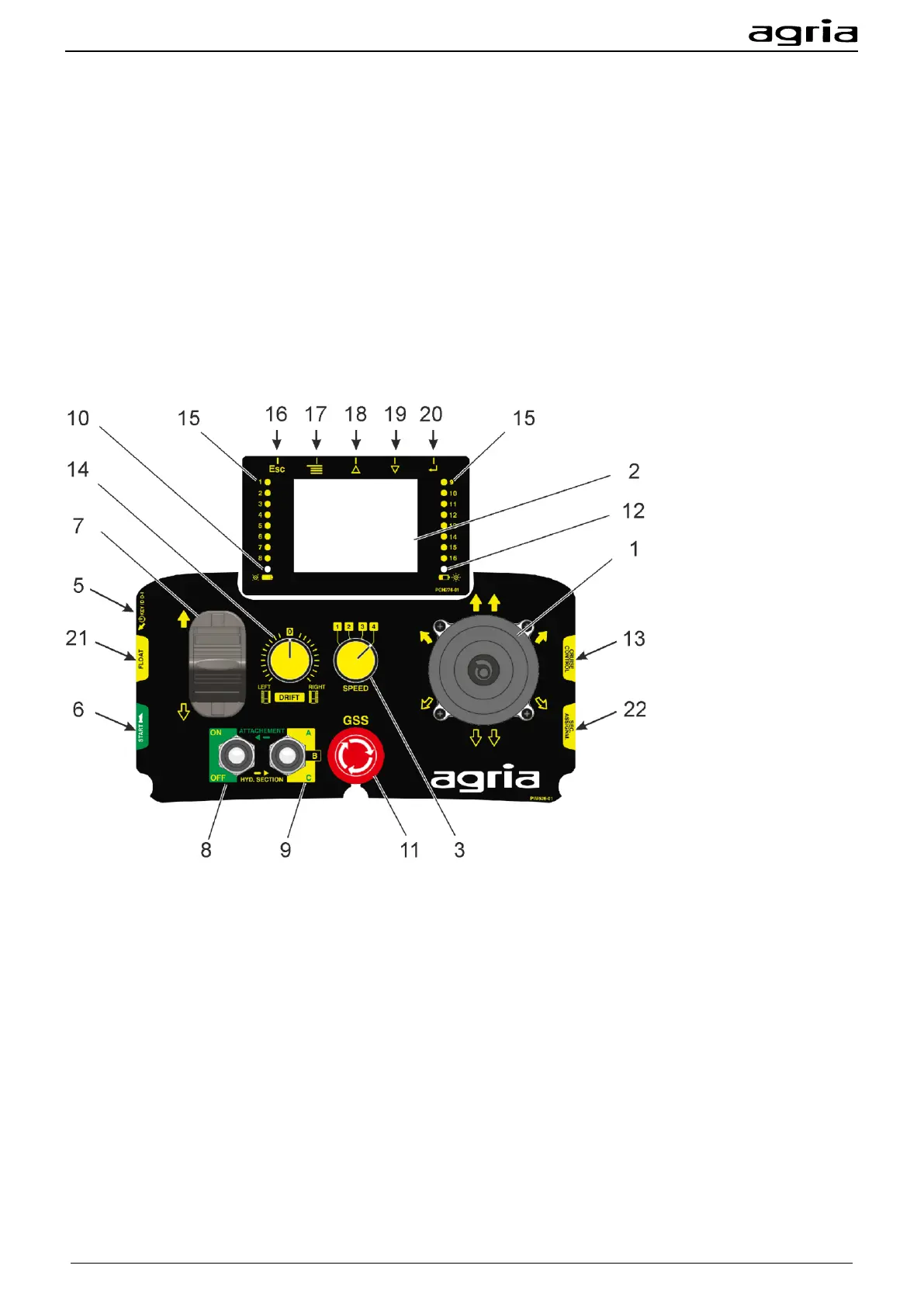

(1) Joystick
The travel direction and travel speed are controlled with the joystick.
(2) Display
Different settings and states of the machine are shown on the display.
(3) Travel speed range
The machine's top speed is adjusted in four levels with the travel speed selector switch. Levels 1, 2
and 3 are intended for working, level 4 for transport rides.
(4) Not assigned
(5) Key switch
The remote control is switched on and off with the key switch.
(6) Release
The 'release' button activates or restarts the radio contact between the remote control and the machine.
(7) Moving the hydraulic functions
The analogue lever is used to operate the working height, the angles of slope and the additional hy-
draulic unit of the mounted implement.
(8) Mounted implement on/off
