Remote-controlled All-electric Tool Carrier agria 9700e
59

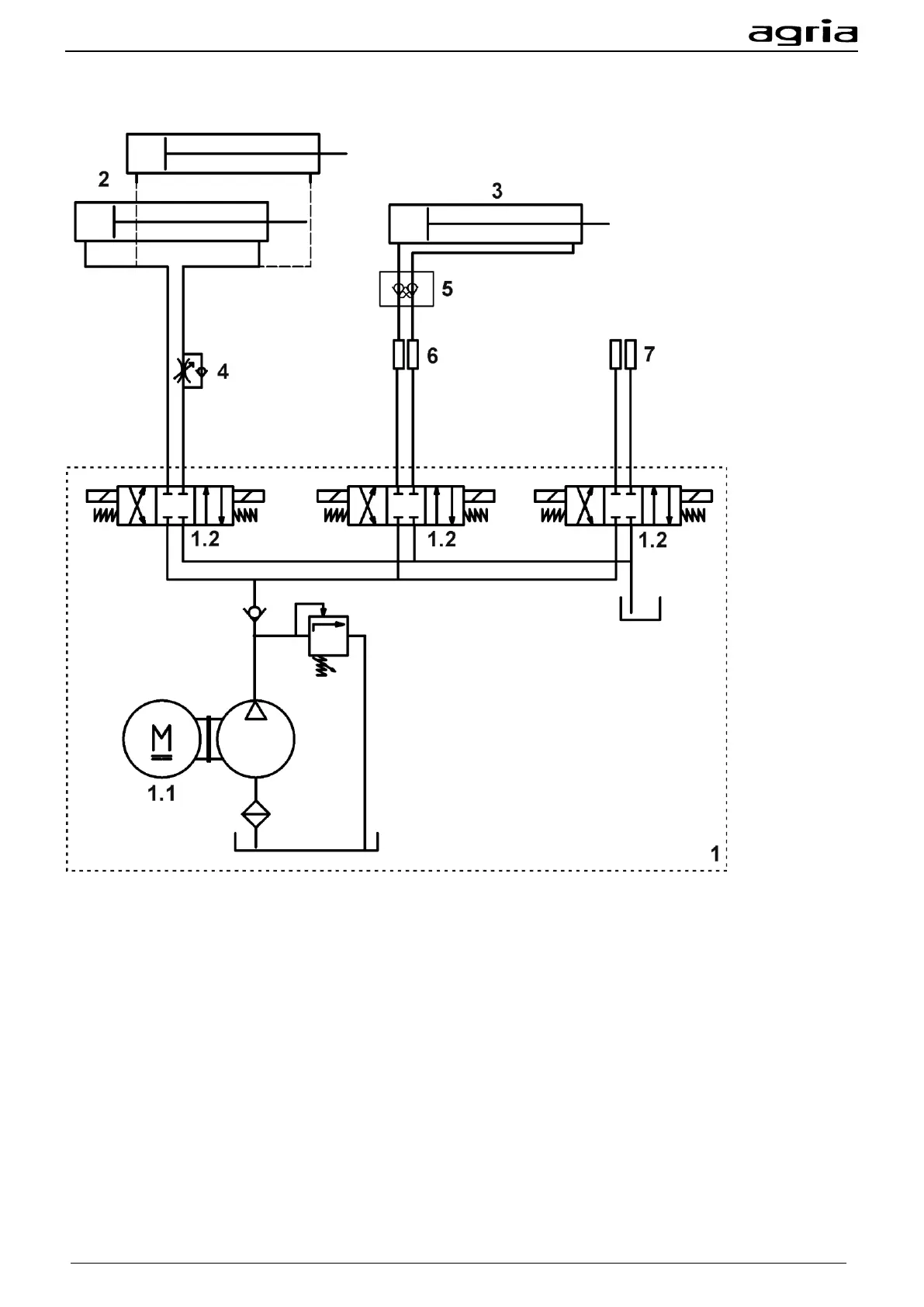

Hydraulic diagram
(1) Hydraulic unit
(1.1) Electric motor / hydraulic pump
(1.2) 4/3-way valve
(2) Lower link lift cylinder
(3) Upper link lift cylinder
(4) Throttle check valve
(5) Lock valve
(6) Quick-action coupling upper link
(7) Quick-action coupling optional connection
