To exchange the V-belts, proceed as follows:

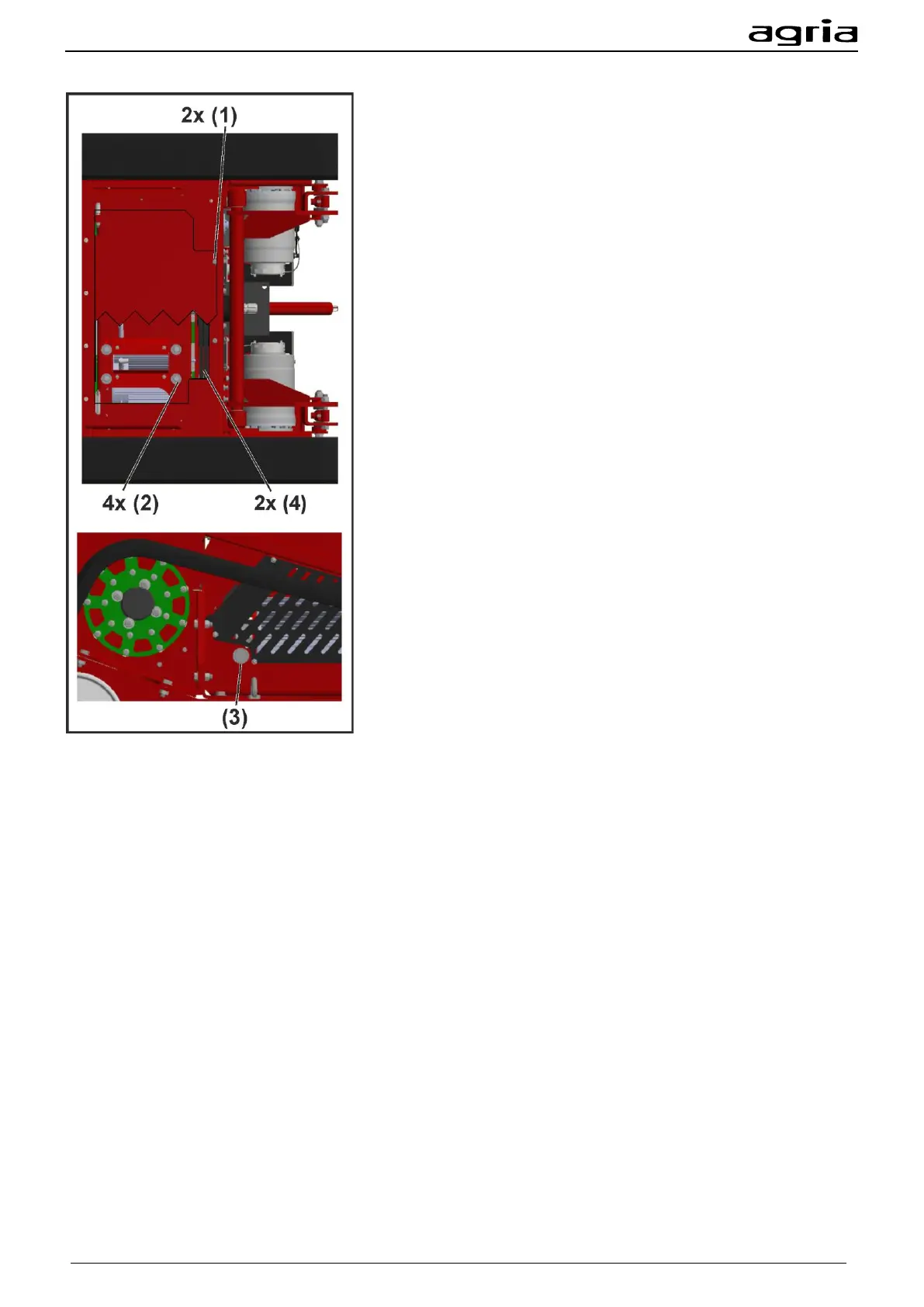

1. Undo both screws (1) of the maintenance flap at the under-
side of the machine (AF13).
2. Undo the four screws (2) of the electric motor carriage
(AF19).
3. Slacken the V-belts with the adjusting screw (3) on the left-
hand side of the machine (AF24).
4. Replace the V-belts (4) should they be damaged.
5. Tension the V-belts (4), fix the carriage and close the
maintenance flap.
6. Replacement of the belts should only be carried out by a
specialist workshop or by - agria-Service -.
