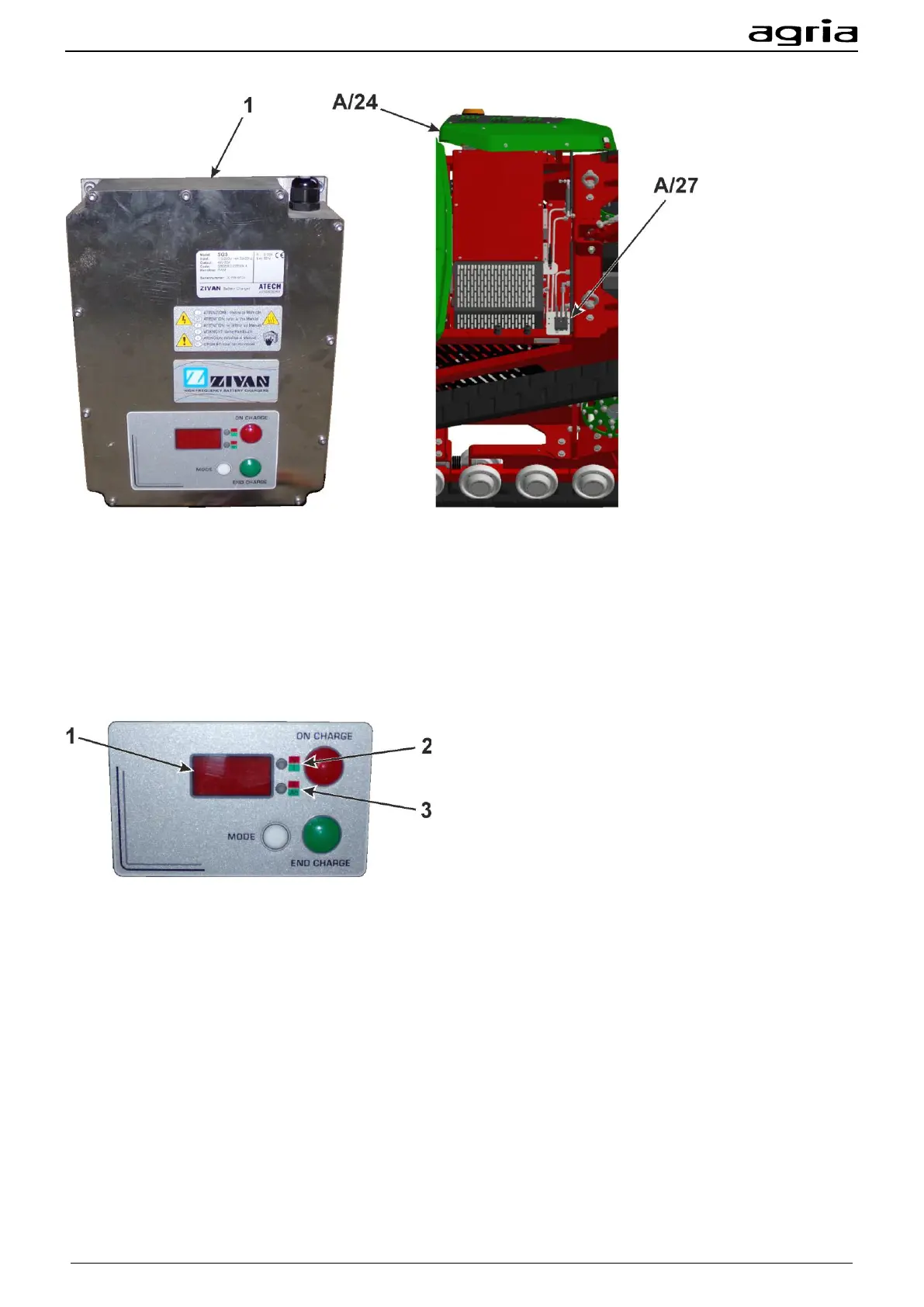

Battery charger 230 V
To charge the machine, first connect the battery charger (1) with the standard plug to the socket of the
230 V supply grid.
Open the service flap (A/24).
Connect the charging plug of the machine (A/27) to the battery charger.
The battery charger powers up automatically. You need not make any adjustments.
The rechargeable battery of the machine is now charged.
The display (1) of the battery charger displays four values in succession. They alternate at short intervals.
If the top LED (2) shines red, the voltage is displayed in Volt (V). If it shines green, the expired charging
time in hours (h) is displayed.
If the bottom LED (3) shines red, the amperage made available by the battery charger is displayed in
Ampere (A). If the LED shines green, the charge quantity with which the machine was charged is displayed
in Ampere hours (Ah).
Code 6C1 indicates the charging program.
