3.3 – SmartyCam in Slave expansion mode with AIM loggers
SmartyCam can visualize even data sampled by an AIM logger (EVO3 Pro/Pista, EVO4,
MXL Strada/Pista/Pro05 or MyChron4) and by the vehicle ECU. In this case it is necessary
to connect SmartyCam via CAN to the logger, using the power and CAN cable to be
inserted into the 7-pins connector placed on the camcorder rear.
Please refer to appendix “B” of this manual to know SmartyCam pinout and to the
user manuals of each AIM logger to know its pinout.

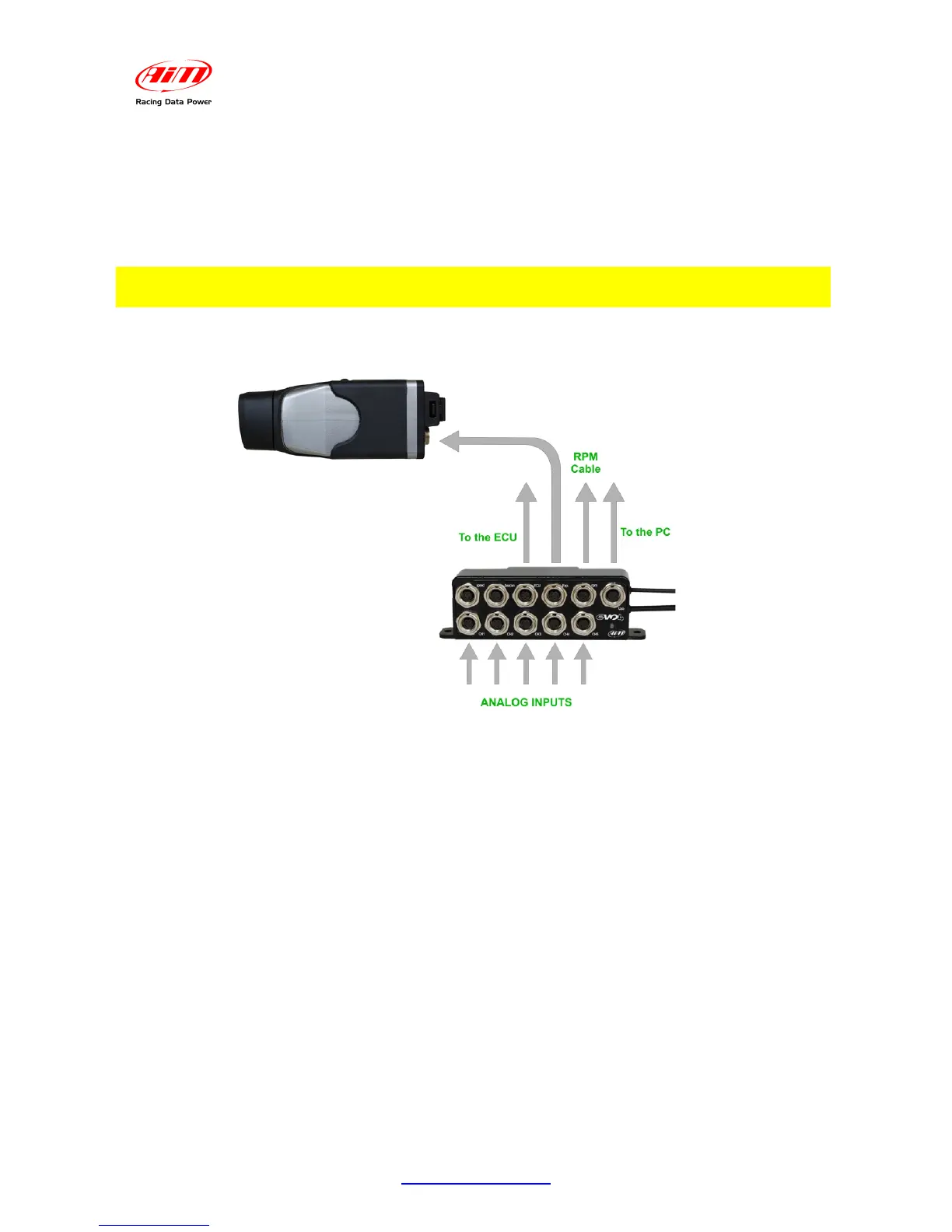

The image below shows i.e. SmartyCam connected to an EVO4.
