Appendix “B” – SmartyCam Pinout
4
5
2
1
3
6
7
Racing Data Power
N. rev. / Rev. N.
Descrizione / Description
Data / Date
Firma / Signature Contr. da / Ckd. by
Rif. / Ref.
Q.tà/Q.ty
Material / Material N. articolo / Item N.
Progettato da / Designed by Contr. da / Ckd. by Approvato da / Approved by Nome file / File name Data / Date Scala / Scale
Titolo / Title
N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet
Pinout SmartyCam
12/01/2009
1 of 1
L.I.
1
2
3
4
5
6
7
CAN+
GND
+Vb
CAN-
Vbext
GND
Mic2+

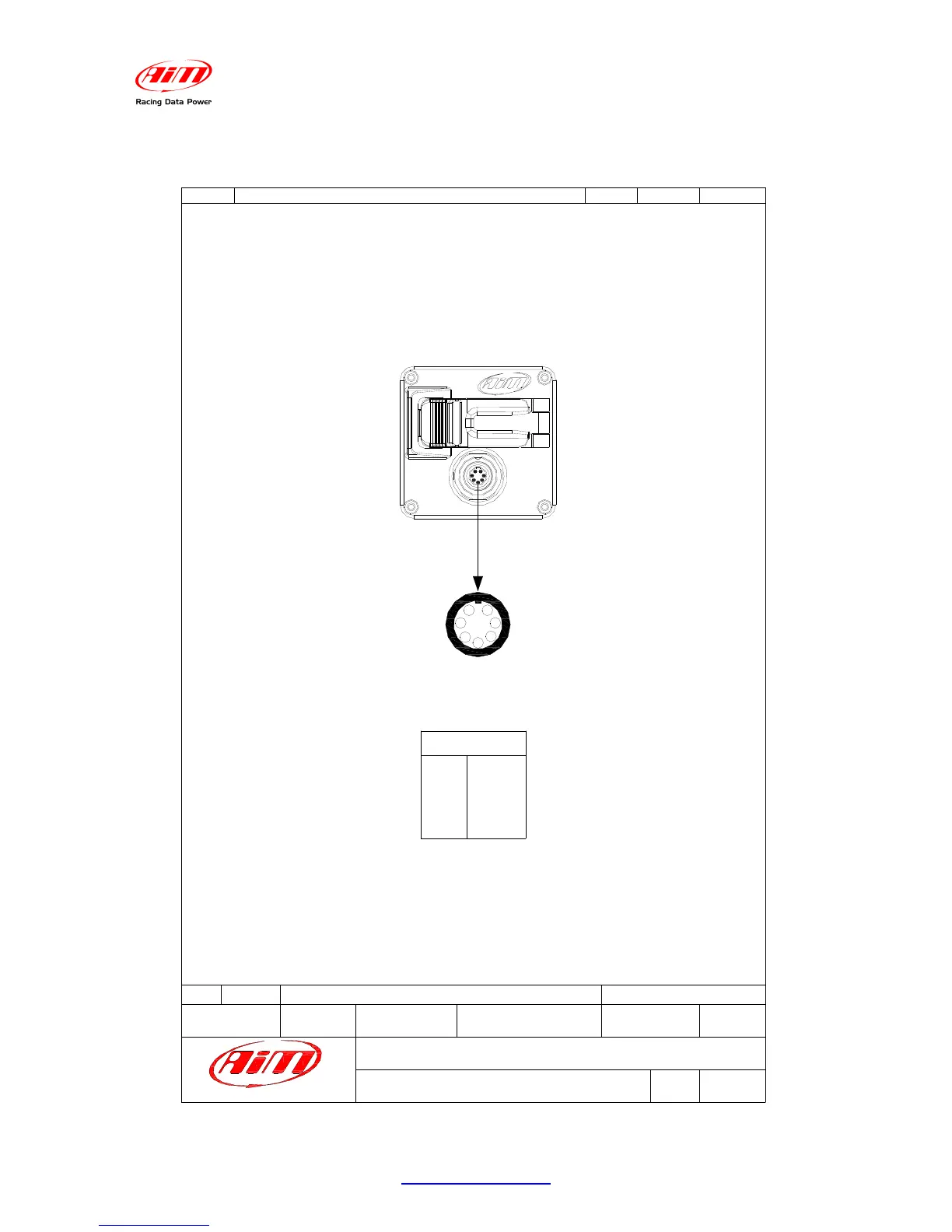

CAN Bus Binder Pinout
Contact insertion view
SMARTYCAM PINOUT
