Aim Smartycam - Page 23

SmartyCam
User Manual
Release 1.04
23
www.smartycam.com
D.B.
BLACK RED
Materiale / MaterialQ.tà / Q.tyRif. / Ref.
Progettato da / Designed by Contr. da / Ckd. by
Approvato da / Approved by
Nome file / File name
Data / Date
N. articolo / Item N.
Scala / Scale
Foglio / SheetRev. / Rev.
Titolo / Title
N. disegno / Drawing N.
N.rev. / Rev. N.
Descrizione / Description
Data / date
Firma / Sign
Contr. da / Ckd. by
Racing Data Power

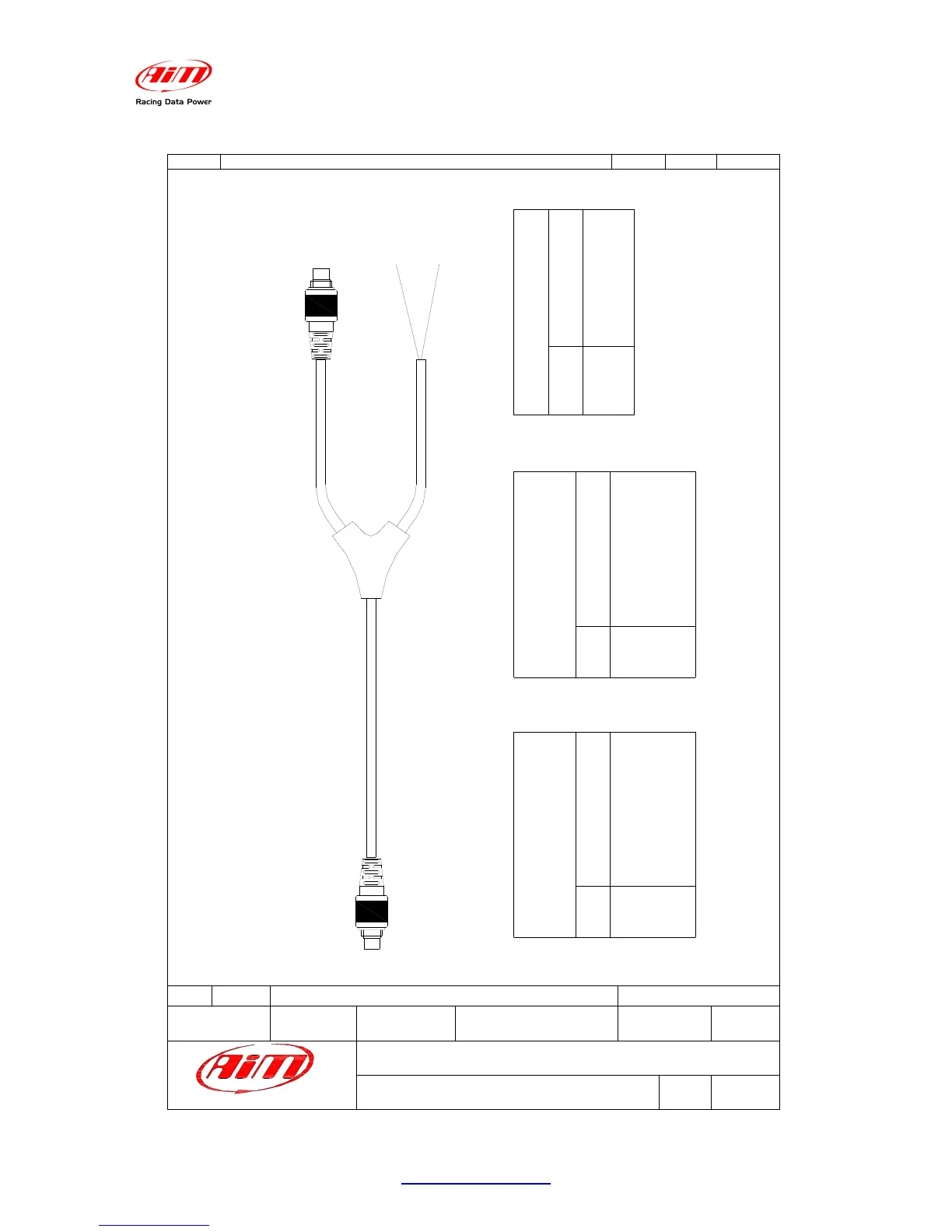

Cavo alimentazione e CAN per SmartyCam
1 of 1
04.566.01 (cable lenght 4m)
04.566.02 (cable lenght 2m)
7 pins Binder 712
male connector pinout
Contact insertion view
Pin Function
1
2
3
4
5
6
7
CAN+
GND
+Vb
CAN-
Vbext
nc nc
Not terminated cables pinout
Colore cavo Function
Black
Red
GND
+Vbext
7 pins
Binder 712 male
connector
5 pins Binder 712
male connector pinout
Contact insertion view
Pin Function
1
2
3
4
5
CAN+
nc
+Vb
CAN-
nc
5 pins
Binder 712
male connector
Not terminated cables
CAN and power adapter cable for SmartyCam pinout
