Aim Smartycam - Page 42

SmartyCam
User Manual
Release 1.04
42
www.smartycam.com
Racing Data Power
N. rev. / Rev. N.
Descrizione / Description
Data / Date
Firma / Signature Contr. da / Ckd. by
Rif. / Ref.
Q.tà/Q.ty
Material / Material N. articolo / Item N.
Progettato da / Designed by Contr. da / Ckd. by Approvato da / Approved by Nome file / File name Data / Date Scala / Scale
Titolo / Title
N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet
+
-
MyChron4
Data Hub
EXTERNAL
BATTERY
SmartyCam
Lambda probe
Data key

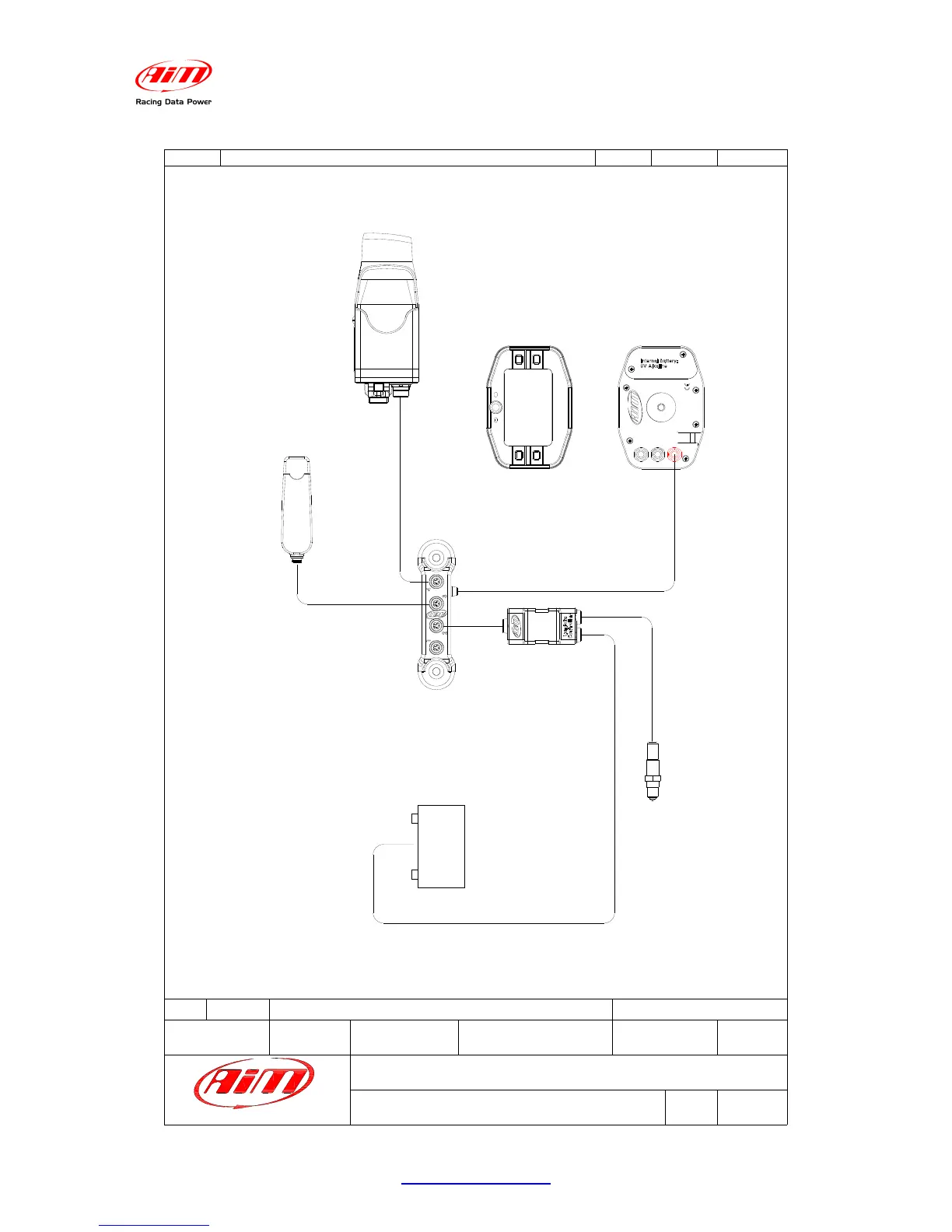

Collegamento MyChron4 - SmartyCam con Data Hub, Data Key e Lambda controller
1 of 1
SmartyCam - MyChron4 connection
with Data Hub, Data key and Lambda controller
Lambda
controller
TEMP
LAP
EXP / PC
