AIREDALE LogiCool InRak - Pipework Schematics (C0)

IT Cooling
LogiCool InRak™
71
InRak™ Technical Manual 7462807 V1.11.0_04_2016
Installation
KEY: ALL ITEMS
BI
BL
DR
WTS
M
BINDER POINT
BLEED VALVE
DRAIN VALVE
WATER TEMPERATURE SENSOR
2-WAY REGULATING BALL VALVE
(ACTUATOR DRIVEN)
CENTRIFUGAL FAN
NORMALLY CLOSED ISOLATING SOLENOID
VALVE (OPTIONAL)
THREADED CONNECTIONS (OPTIONAL)
M
BL
BL
WTS
BI
BI
BI
DR
BI
CW COIL RIGHT
CW COIL LEFT
OPTIONAL
PORT C
PORT B
BY-PASS LEG
OUTLET LEG
OPTIONAL
INLET LEG
OPTIONAL
OPTIONAL
OPTIONAL
PORT A
Installation

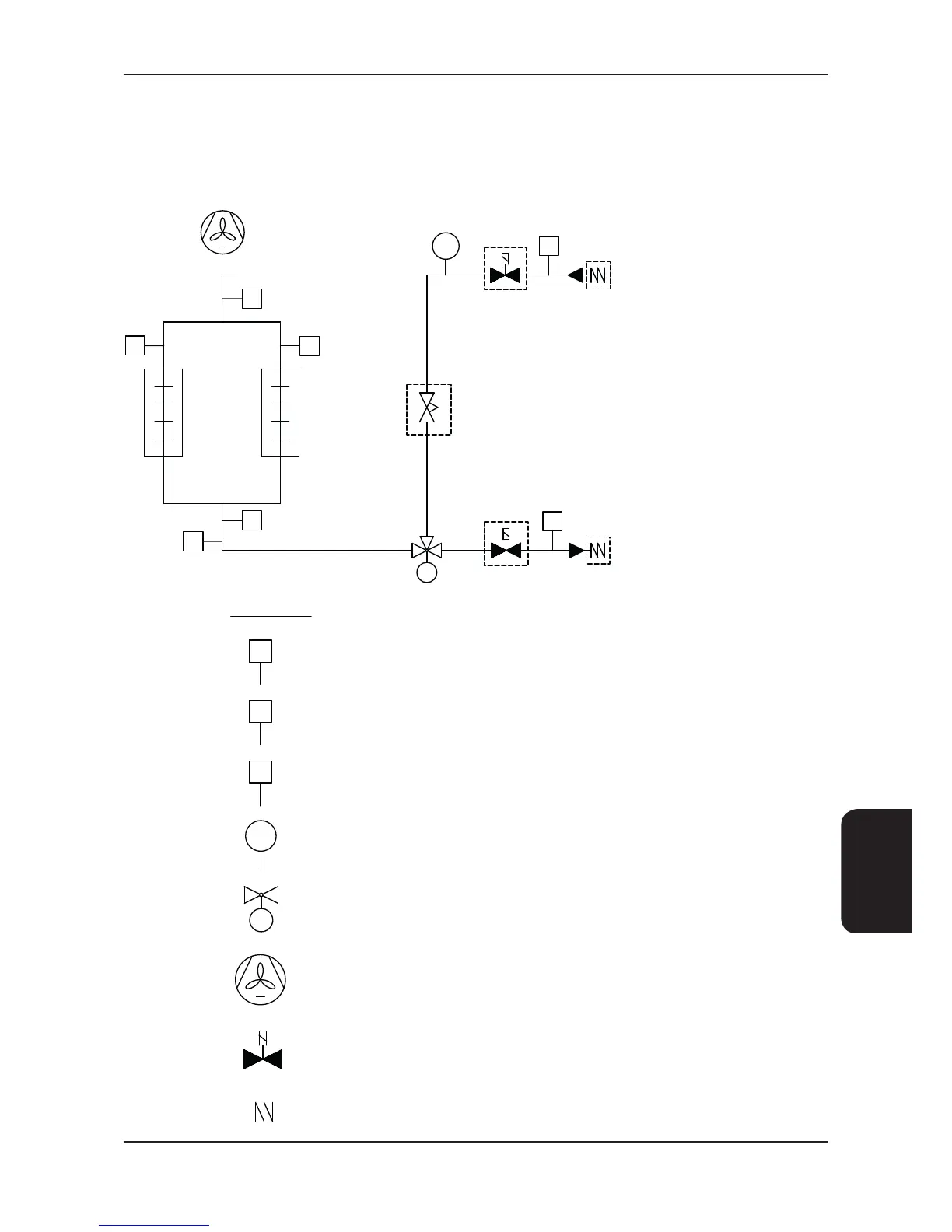

Pipework Schematics
C0 (3 Port Valve)
