InRak™ Technical Manual 7462807 V1.11.0_04_2016
Installation
KEY: ALL ITEMS
BI
BL
DR
WTS
M
BINDER POINT
BLEED VALVE
DRAIN VALVE
WATER TEMPERATURE SENSOR
2-WAY REGULATING BALL VALVE
(ACTUATOR DRIVEN)
CENTRIFUGAL FAN
NORMALLY CLOSED ISOLATING SOLENOID
VALVE (OPTIONAL)
THREADED CONNECTIONS (OPTIONAL)
M
BL
BL
WTS
BI
BI
BI
BI
DR
INLET LEG
OUTLET LEG
OPTIONAL
OPTIONAL
OPTIONAL
CW COIL LEFT
CW COIL RIGHT
PORT C PORT A
OPTIONAL
Installation

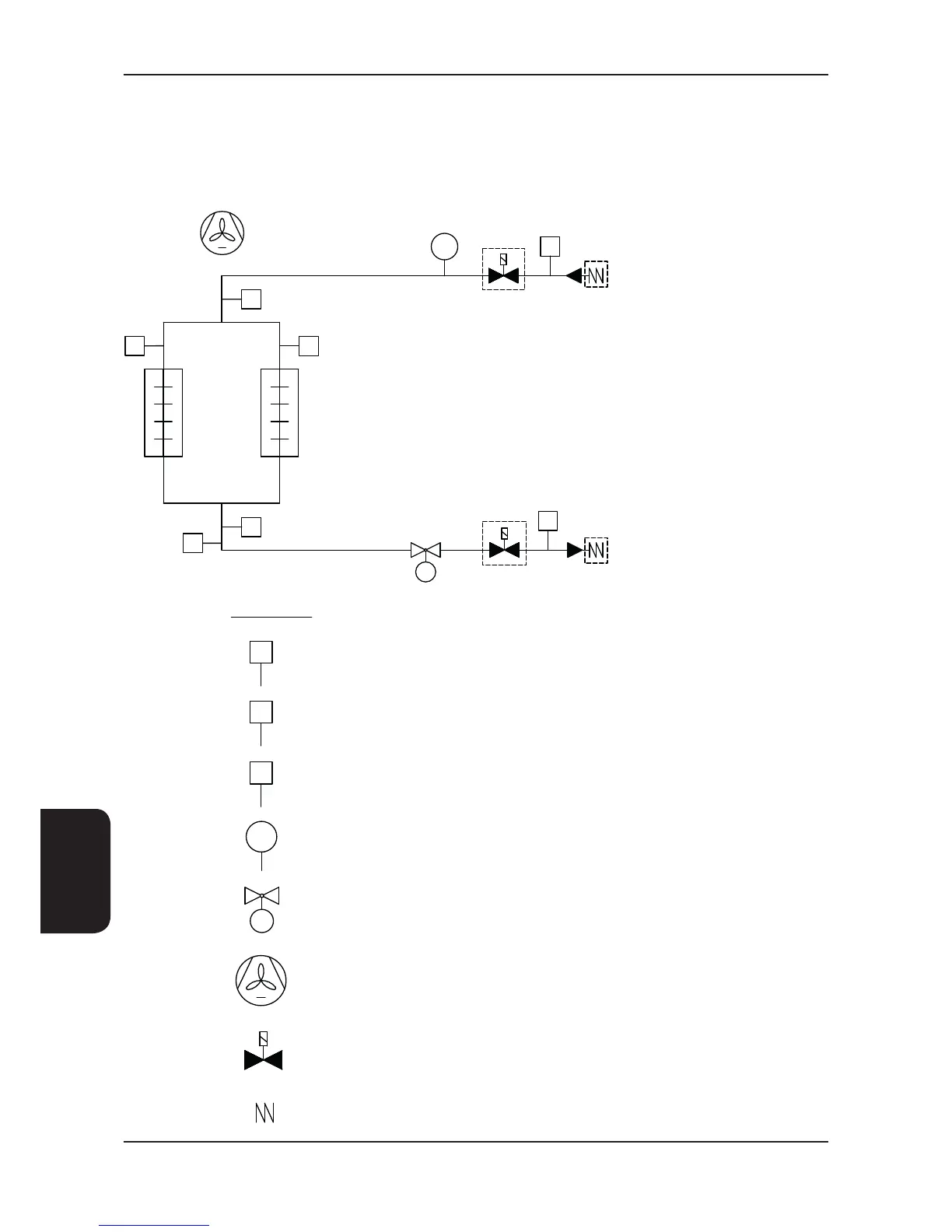

Pipework Schematics
C0 (2 Port Valve)
