Chapter 5: Changing Capture Hoods 51
3. Insert the flaps into the slots from the side of the frame where the fabric hood is attached to the
U-channel of the frame (see Figure 26). Use the different flap lengths to fit various cabinet widths.

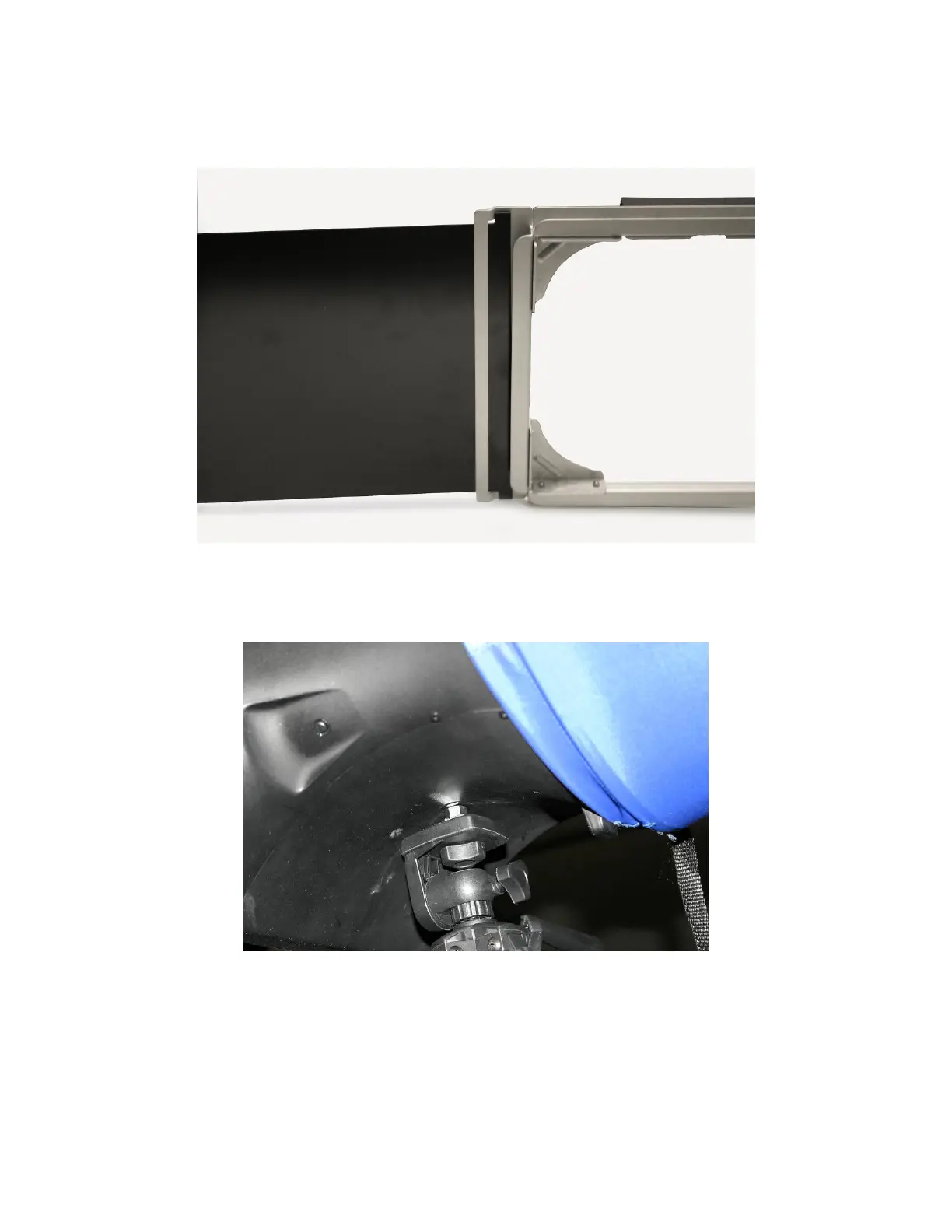

Figure 26: Attach Fabric Hood and Hood Support Poles to Frame and Base Assembly
4. Mount the capture hood base to the telescopic stand by fastening the screw on the telescopic stand
to the threaded insert mounted on the base opposite the display/manometer (see Figure 27).
Figure 27: Mount Hood Base to Telescopic Stand
