Chapter 2: Installation
Controller Box Installation
Page 22

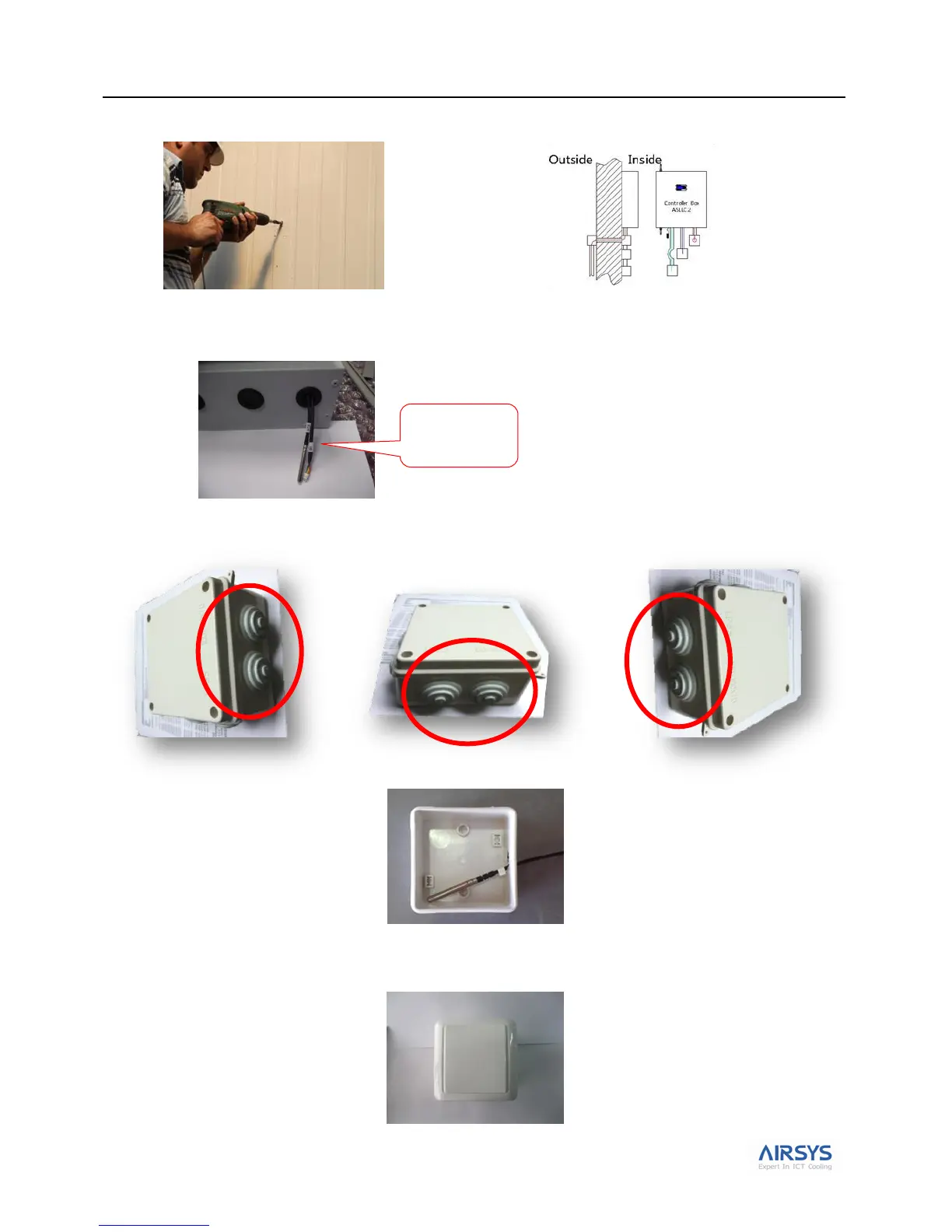

2. Drill a 0.5 inch diameter hole for the outdoor temperature sensor through the shelter wall.
3. Open the controller box assembly and locate the outdoor temperature sensor (ST2) assembly.
4. Thread the outdoor temperature sensor through the right-hand port at the bottom of the controller box.
5. Punch out all holes on the bottom and both sides of the white sensor box to allow for proper airflow and
drainage.
6. Thread the outdoor temperature sensor from the controller box through the hole in the bottom of the box.
7. Secure the sensor to the bottom of the box with a nylon zip-tie.
8. Secure the box to the outside wall. Snap the sensor box cover in place and use sealant along the seam
between the box and the wall.
Temperature
