Akai MPC 2500 Operator's Manual

MPC2500 Operator’s Manual rev 1.0
6
Chapter 1: Introduction
INPUT
Mixer
Amplifier
Monitor Speaker
INPUT
Sound Module
MIDI IN
AUDIO OUT
DJ Mixer
MASTER
OUT L / R
INPUT
PC or MAC
USB
MD Recorder
ALDIGIT IN
DIGITAL OUT
CD Player
MIDI Keyboard
MIDI OUT
Turn Table
PHONO
Microphone
Headphone
PHONES
FOOTSWITCH
12
Footswitch
Compact Flash

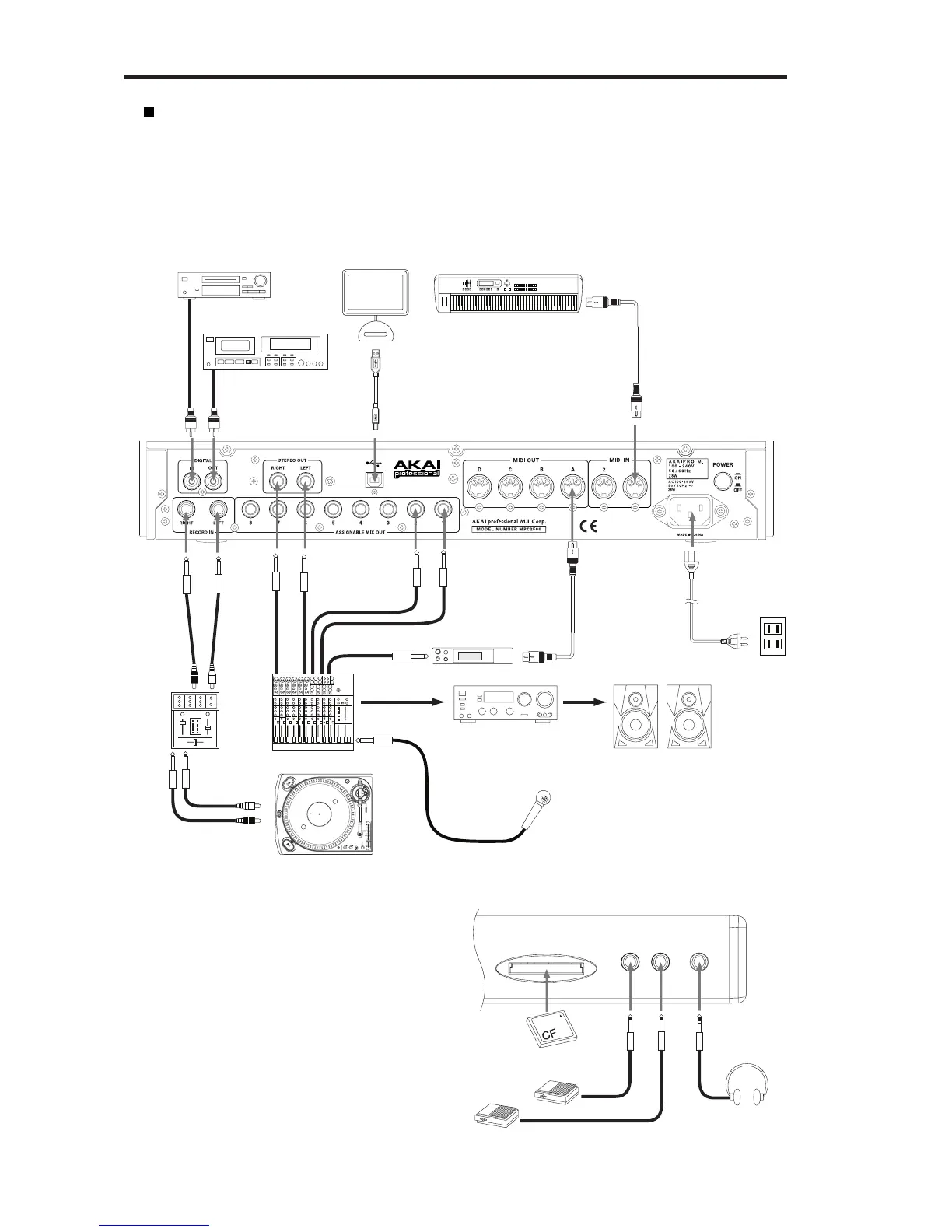

Connecting MPC2500 to External Audio/MIDI device
The diagram below demonstrates how you can connect the MPC2500 to an external Audio/MIDI device.
Please note that this is one example, so, when you actually connect your devices, refer to the device’s operator's manual.
Note: When you connect devices, make sure the power is turned off.

Akai MPC 2500 Specifications

General

Polyphony	32 voices
Sampling Frequency	44.1 kHz
Sampling Bit Depth	16-bit
Maximum RAM	128 MB
Sequencer	Yes
Type	Sampler/Sequencer
Sequencer Resolution	96 ppq
Digital I/O	S/PDIF In/Out
Power Supply	Internal
Pads	16 velocity and pressure-sensitive
Storage	CompactFlash
Effects	4 internal effects processors
MIDI	2 In, 4 Out
Display	240 x 64 pixel LCD
Analog Outputs	8
Sample Memory	128 MB max
Audio Outputs	8
Audio Inputs	2
Weight	14.5 lbs
