Service Manual Aktilite
CL128
Version 1.
3
Page 24
of 41

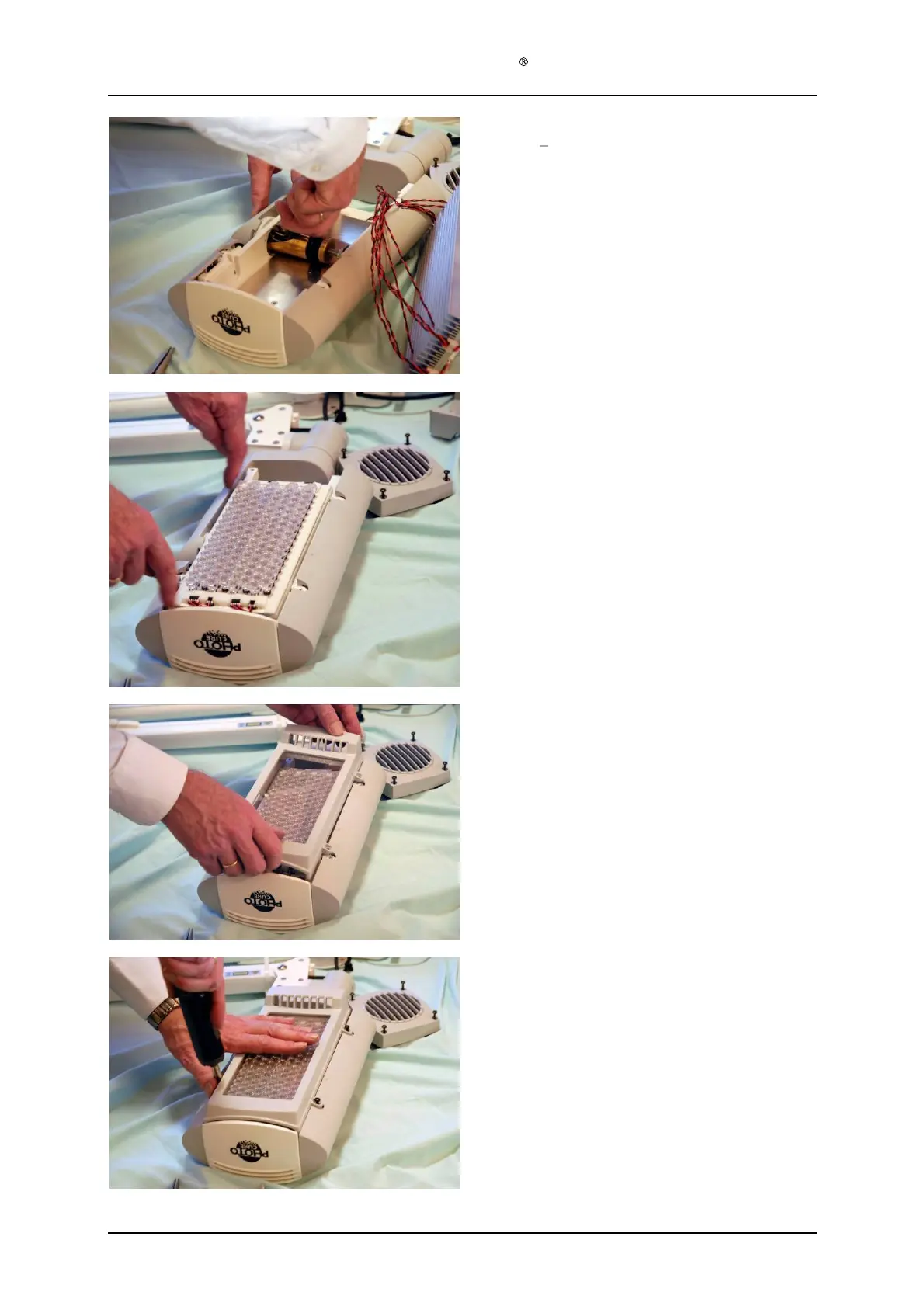

Step 30
Step 23
30
is only relevant if you have chang
ed
the housing or main arm.
Make sure that the circlip is properly engaged in the
groove.
This is very important.
The main arm my fall of and heart the patient if this
is not done properly.
Step 31
Place the light module back on the housing.
You
can see the positioning marks on the housing.
Step 32
Position the housing bottom
.
Step 33
Mount back the 4 Torx
20 screws.
