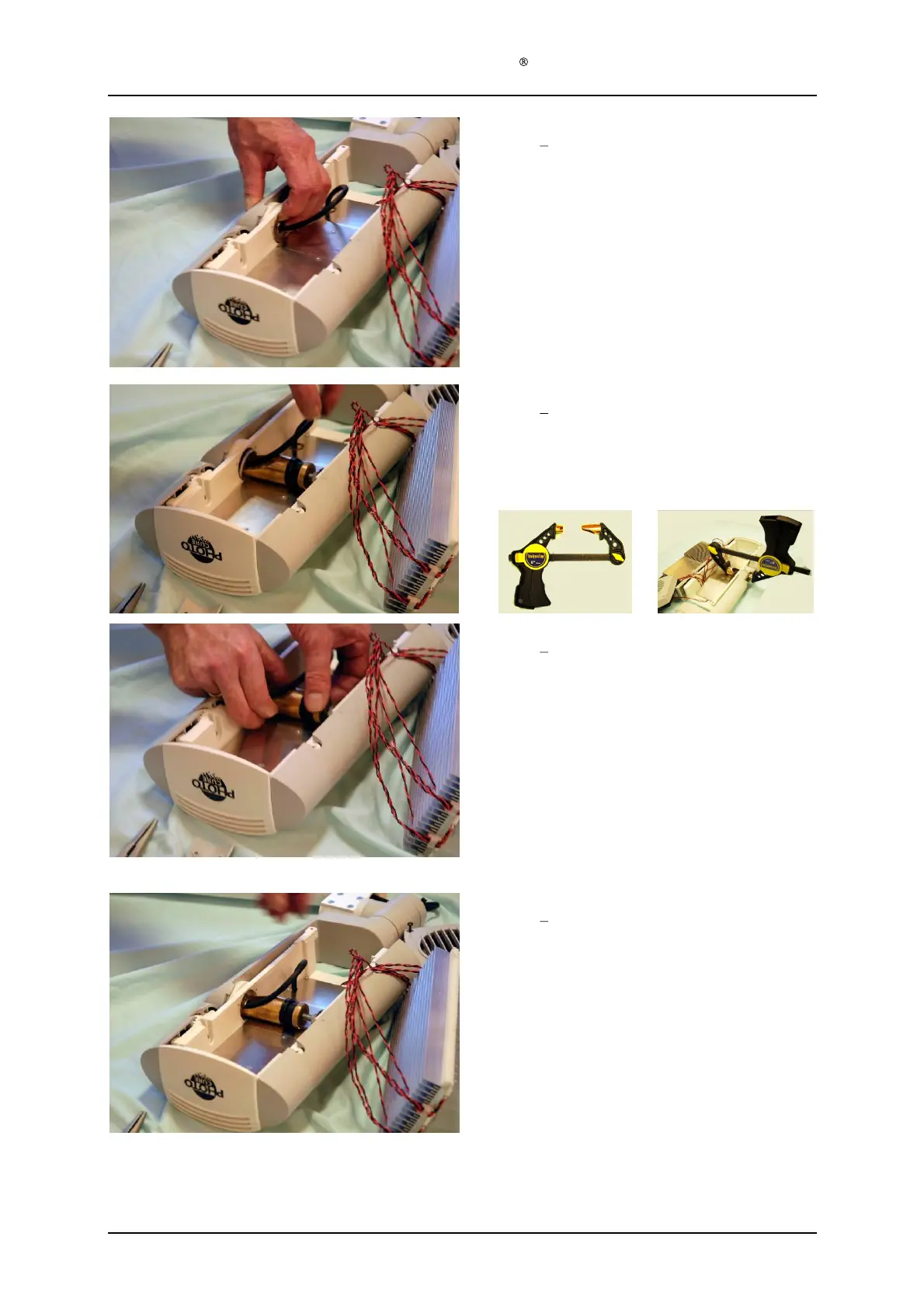

Step 26
Step 23 30 is only relevant if you have changed
the housing or main arm.
Test that the washer fits on to the axle.
Step 27
Step 23 30 is only relevant if you have changed
the housing or main ar m.
Use a tool to compress the spring mechanism. (The
tool may look different to the one on the picture)
A modified clamp can also be used.
Step 28
Step 23 30 is only relevant if you have changed
the housing or main arm.
Compressing the spri ng by turning the rotary wheel
on the tool clock - wise.
Step 29
Step 23 30 is only relevant if you have changed
the housing or main arm.
The circlip can now be engaged on the main arm
axle.
