C319 Series Indoor Monitor Administrator Guide
www.akuvox.com
76

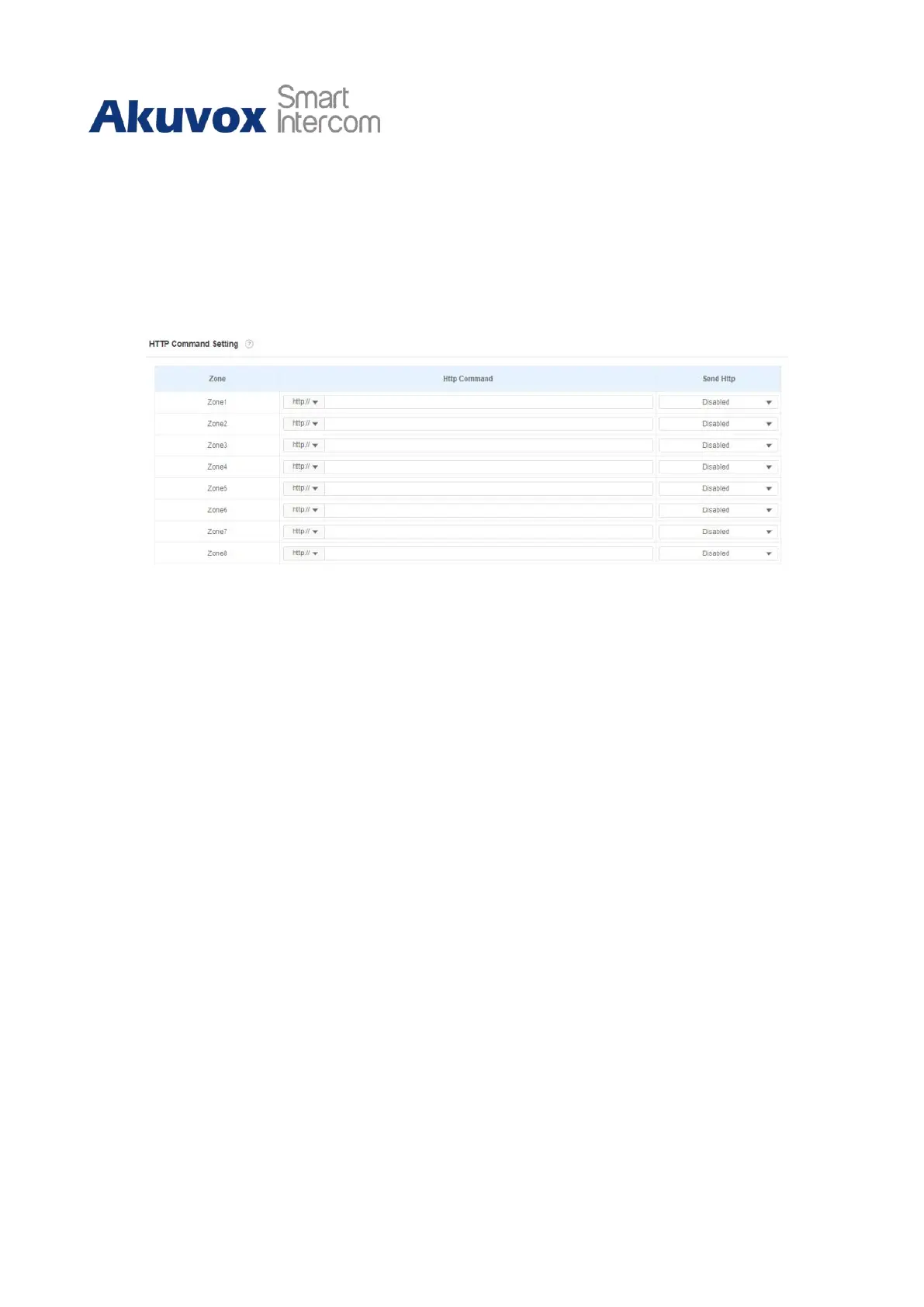

14.2.8 Configure Alarm Action via HTTP Command
To set up the HTTP Command action, you can click Enable in the Send HTTP field to
enable the actions for the alarm sensor installed in different locations. Then enter the
HTTP command provided by the manufacturer of the device on which the action is to be
carried.
Parameter Set-up:
• Send HTTP: enable it if you want the action to be implemented on a designated third
party device.
• HTTP Command: enter the HTTP command provided by third-party device
manufacturer.
14.2.8.1 Configure Alarm Action via SIP Message
To set up the SIP message action receiver on the same web interface. Enter the SIP
account to which you want to send the configured SIP message as an action when the
alarm is triggered.
