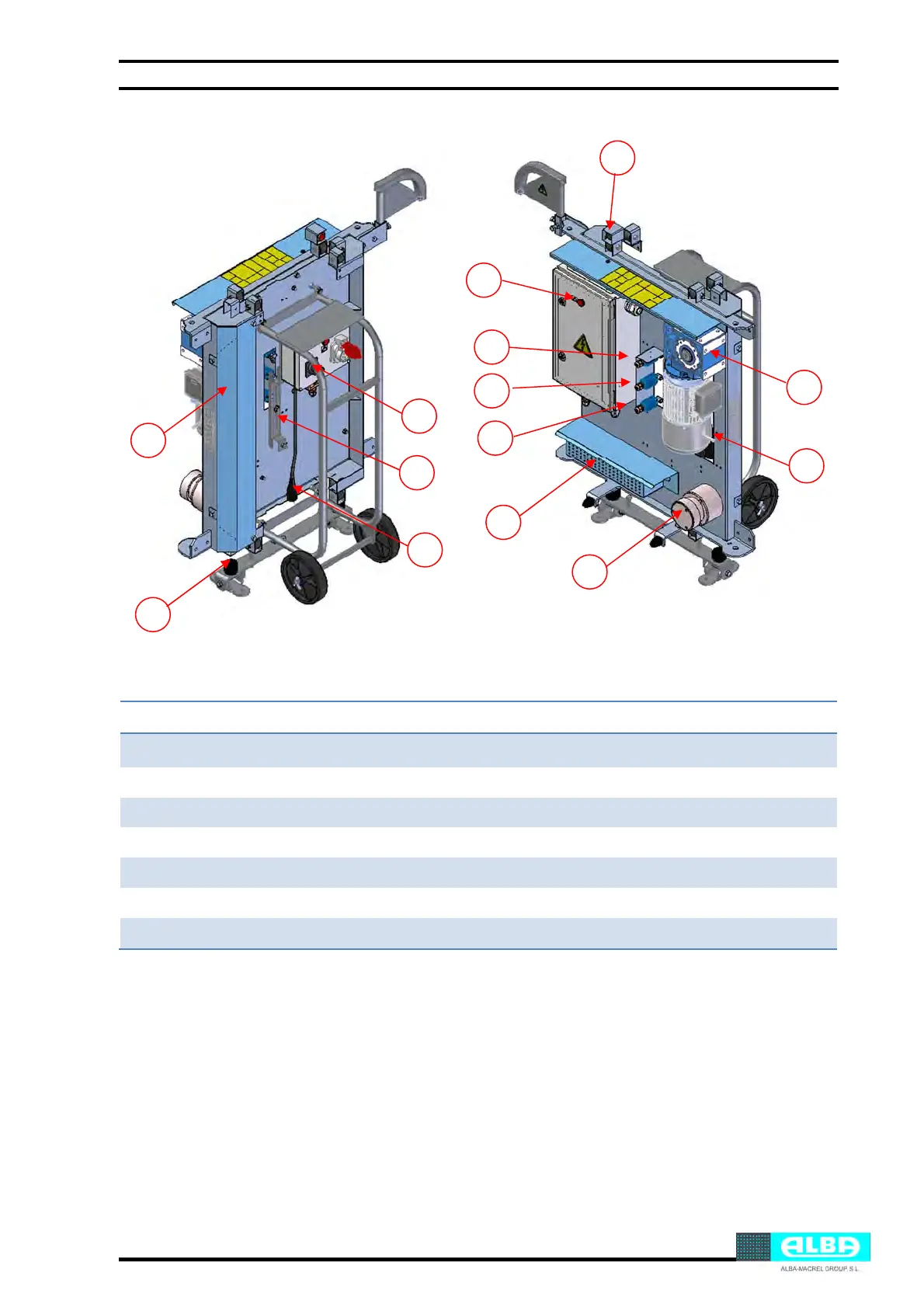

1.5. Base set parts and safety system identification



TABLADECOMPONENTESGRUPOBASE
1 Superiorendtracklimitswitch 8 Emergencydescentlever
2 Safetyendtrackswitch 9 Basebuffers
3 Inferiorendtracklimitswitch 10 Pinionprotectioncover
4 Mastpresencedetector 11 Inferiorendtracklimitcam
5 Safetybrakeparachute 12 Generaldisconnectorswitch
6 Outofserviceredlight 13 Electricalsupplysocket
7 Gearmotorwithelectromechanicbrake 14 Resistance






01
02
03
04
05
06
07
08
09
10
11
12
13
14
