2.5.8 Wallanchorages
2.5.8.1 Anchoragewithoutexternalanchorages(minimumdistance)
The mast of the MC250 is designed to be anchored directly to the wall without external
anchoragesorwithHtypeanchors(158.84).


















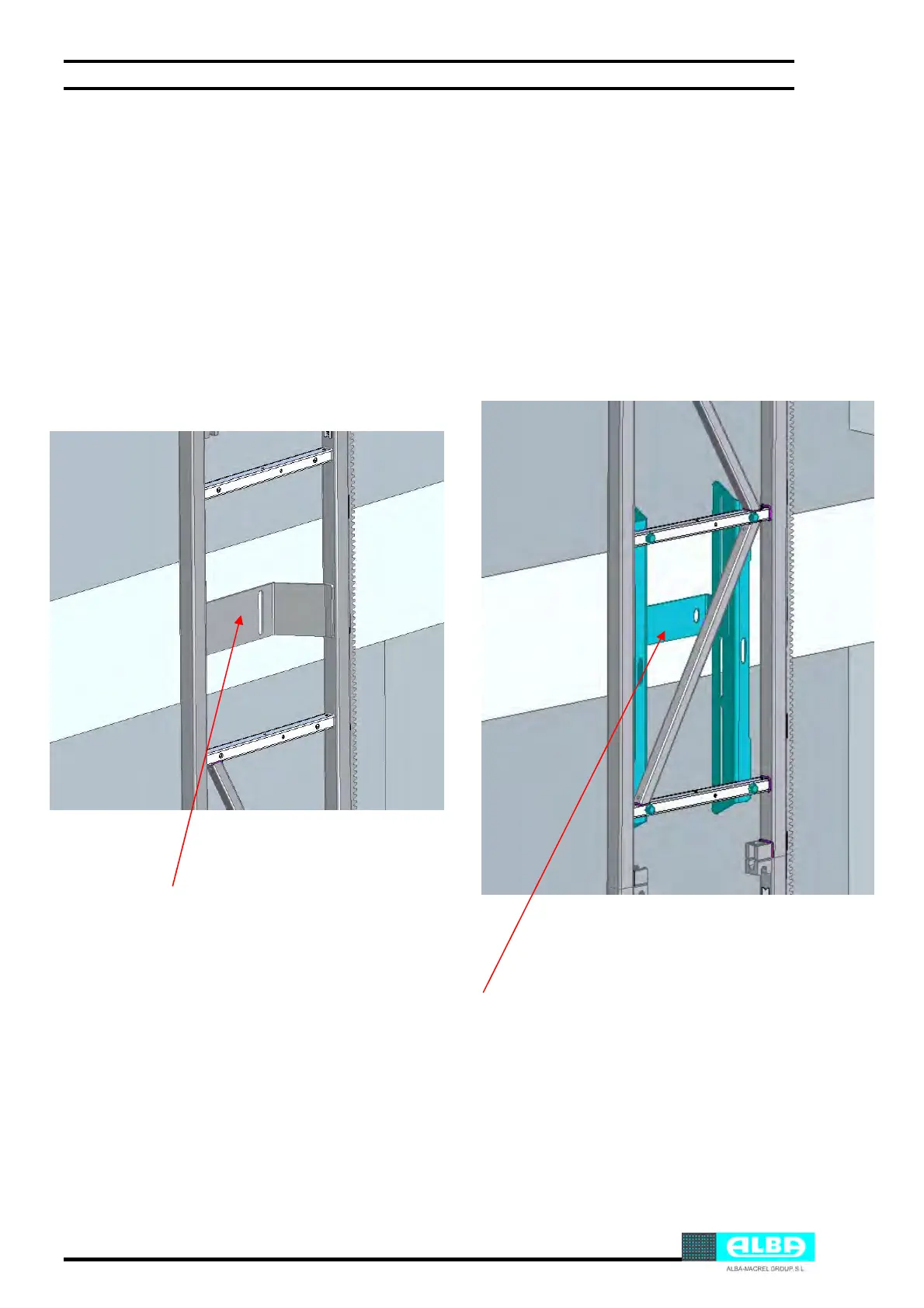

Direct wall
anchor
Wall anchor with H type
anchor (158.84)
