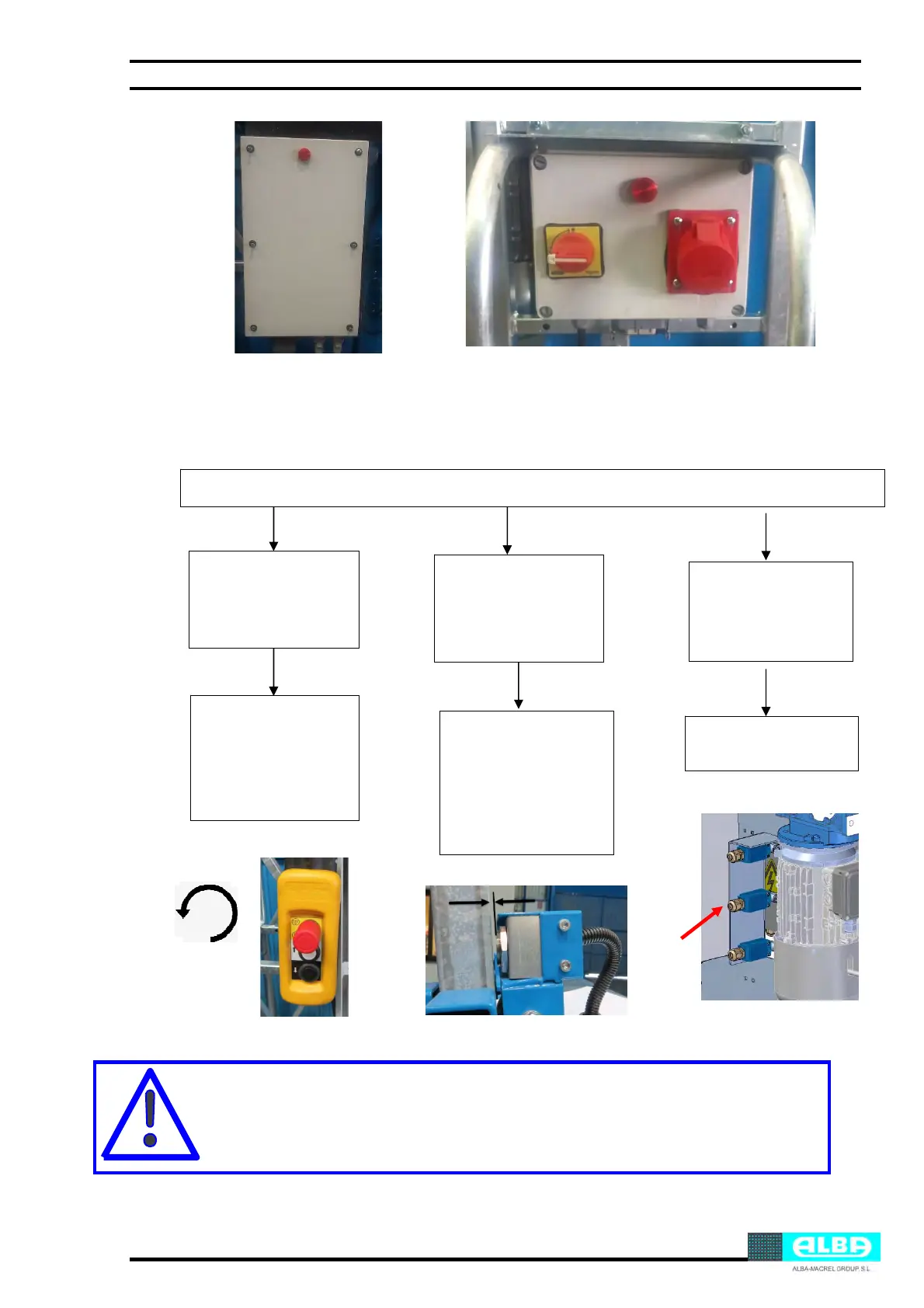

Pointsofreviewincaseofactivationoftheredpilotlight:
WARNING:
Case of activation out of service red light, check security systems indicated in the
abovediagram.Oncetheproblemissolved,thecontrolwillresetautomatically.
WARNING. Red light activated
Emergency stop is
activated
To release the
emergency stop turn
the button
counterclockwise
Mast presence
detector is not
detecting the mast
Check the position of
the mast detector, the
gap between the
mast and the detector
it must be aprox.
5mm (0.19 in)
Safety endtrack
microswitch is
activated
Check the safety
microswitch
To Next Page
