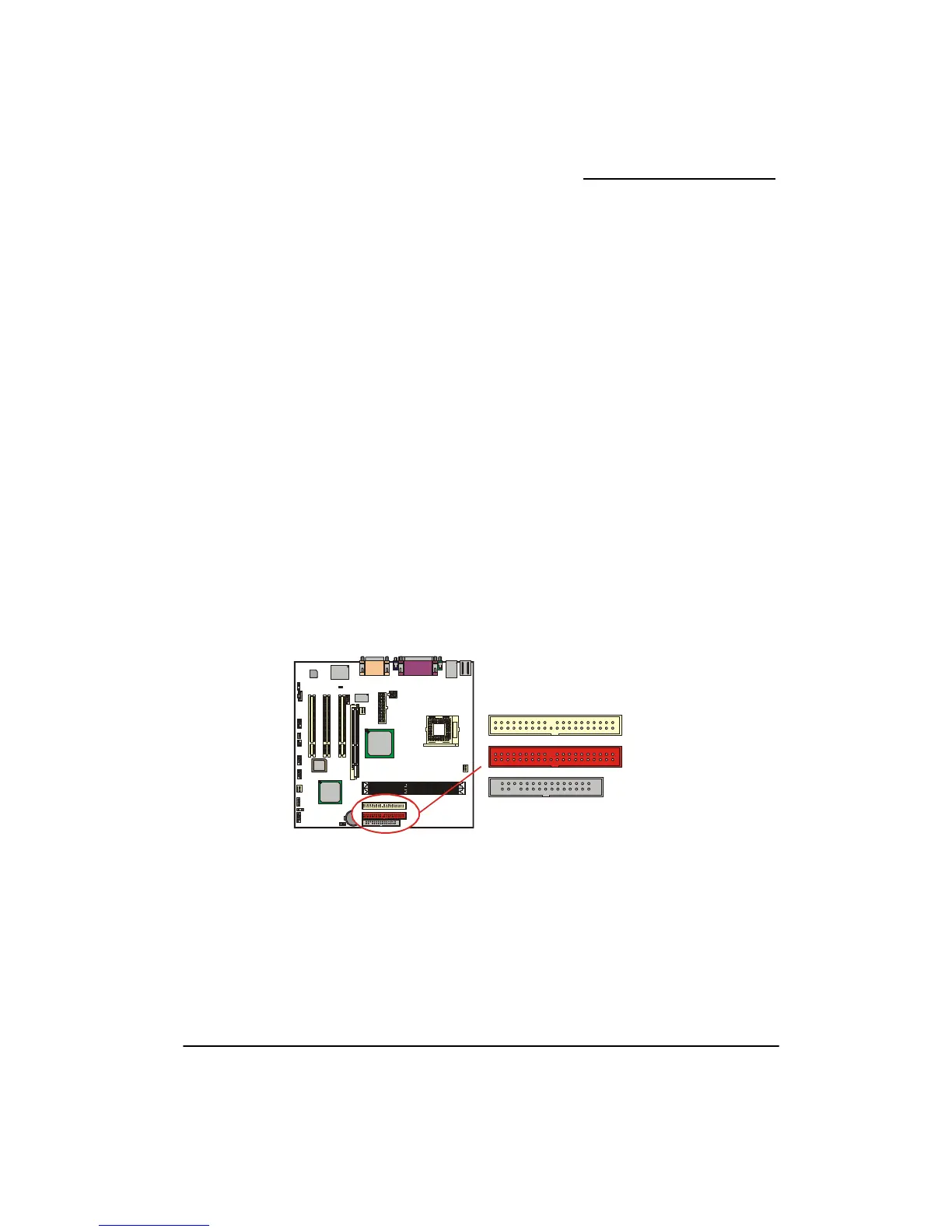

Floppy Disk Connector: FDC
This mainboard provides a stand
1.44M and 2.88M floppy diskettes.
in the packaging.
Hard Disk Connectors: IDE1-2
This mainboard has a 32-bit Enhanced PCI IDE Controller that supports PIO Mode 4, DMA mode,
Ultra ATA 66/ 100/ 133. This mainboard provides two IDE connectors, IDE1 (primary) and IDE2
(secondary).
IDE1 (Primary IDE Connector)
You can connect up to two hard drives to IDE1. If you attach two drives, you must use a ribbon cable
with three connectors. You must also configure one drive as the master and one
using the jumpers located on each drive.
IDE2 (Secondary IDE Connector)
