Alcatel-Lucent Enterprise 8068s CE - USB External Ringing Interface Module (USB Interface Module 2 Relays 3 GV28184 AA)

Cloud Edition DeskPhone
8AL90362ENAAed01
60 /74

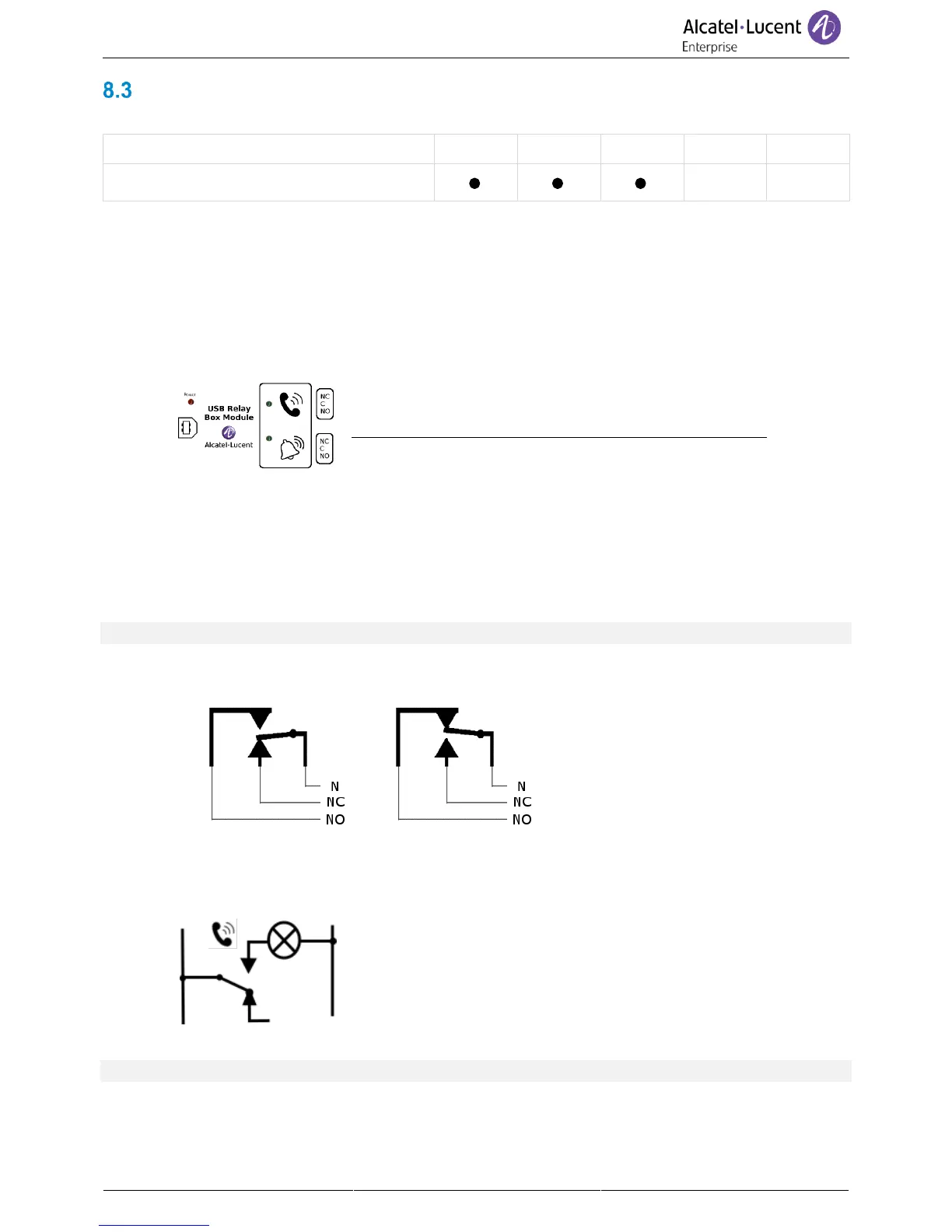

USB external ringing interface module (USB Interface module 2 relays
3GV28184AA)
8068s CE
8058s CE
8028s CE
8018 CE
8008 CE
The accessory is supported by the following
sets
The USB external ringing interface module allows driving an external system (like a ring or a lamp),
following the ring tone cadence or the communication state of the phone connected on the telephone
line. No system configuration is requested to install the module.
USB Interface module 2 relays lets to connect directly one or 2 external ringings on the USB connector
of your deskphone:
Relay 2
The phone is in audio communication.
The relay is active as long as the
phone is in communication.
Relay 1
The phone is ringing. The relay
follows exactly the ring signal.
List of supplies
• USB external ringing interface module.
• 1 USB cable 1,5 m (4,9 feet) USB type A - USB type B.
8.3.1 Installation
WARNING: The module must be closed before use. No settings require the module to be open.
In idle state:
Ringing or during
communication:
N: Common.
NC: active signal.
NO: non-active signal.
Typical usage diagram:
Phase
Neutral
The lamp lights up when the phone is in communication.
The breaking capacity is 12V/24V DC 15A or 120V/220V AC at 10A.
