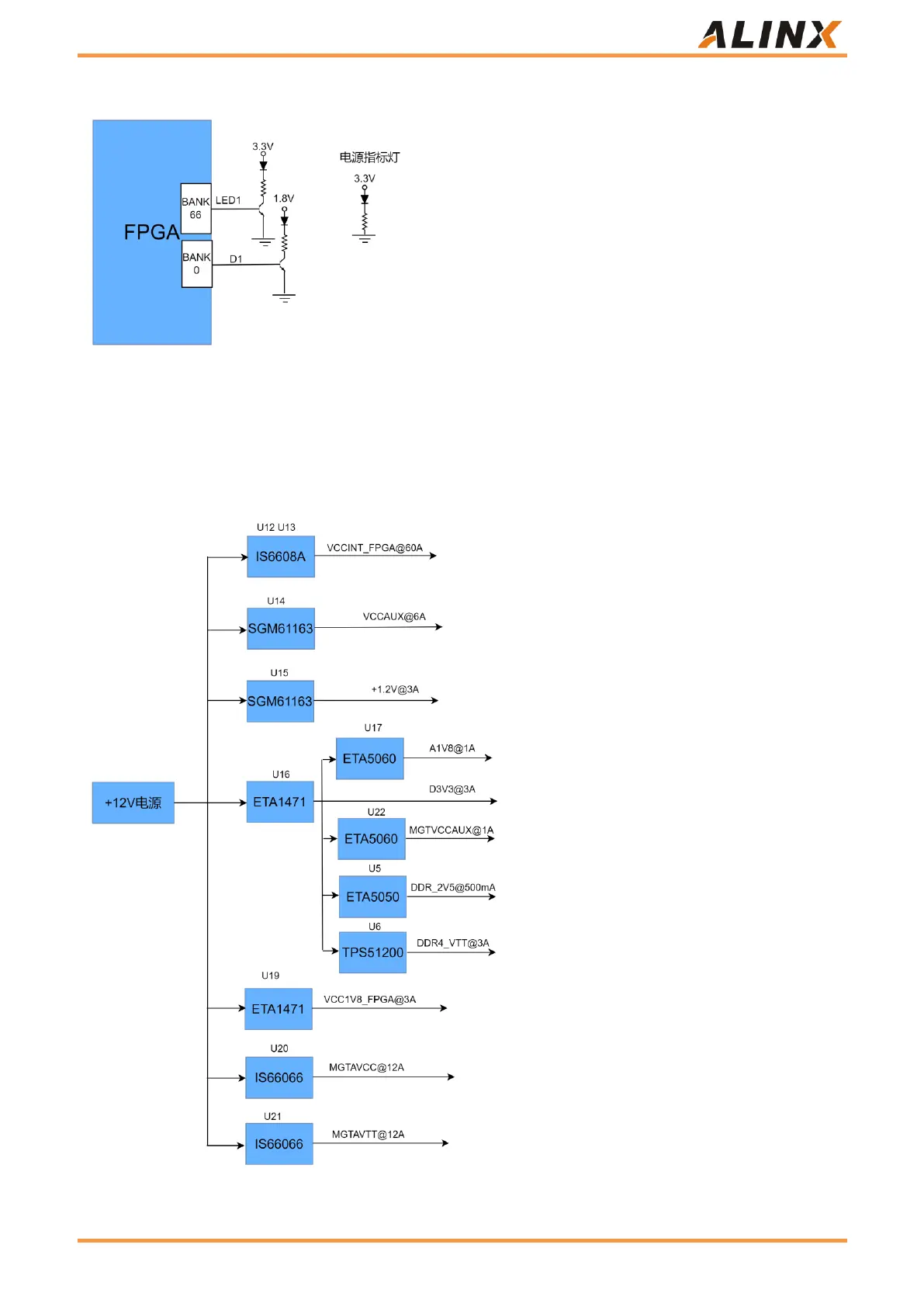

Figure 13: Schematic diagram of hardware connection of LED lamp on module
Part 2.7: Power source
The power supply voltage of the ACKU15 module is +12V, which is supplied through the connection base board.
The power supply design diagram on the board is shown in Figure 14 below:
Figure 14: Power interface part in the schematic diagram
