AXKU15 User Manual
8/51
www.en.alinx.com
www.en.alinx.com

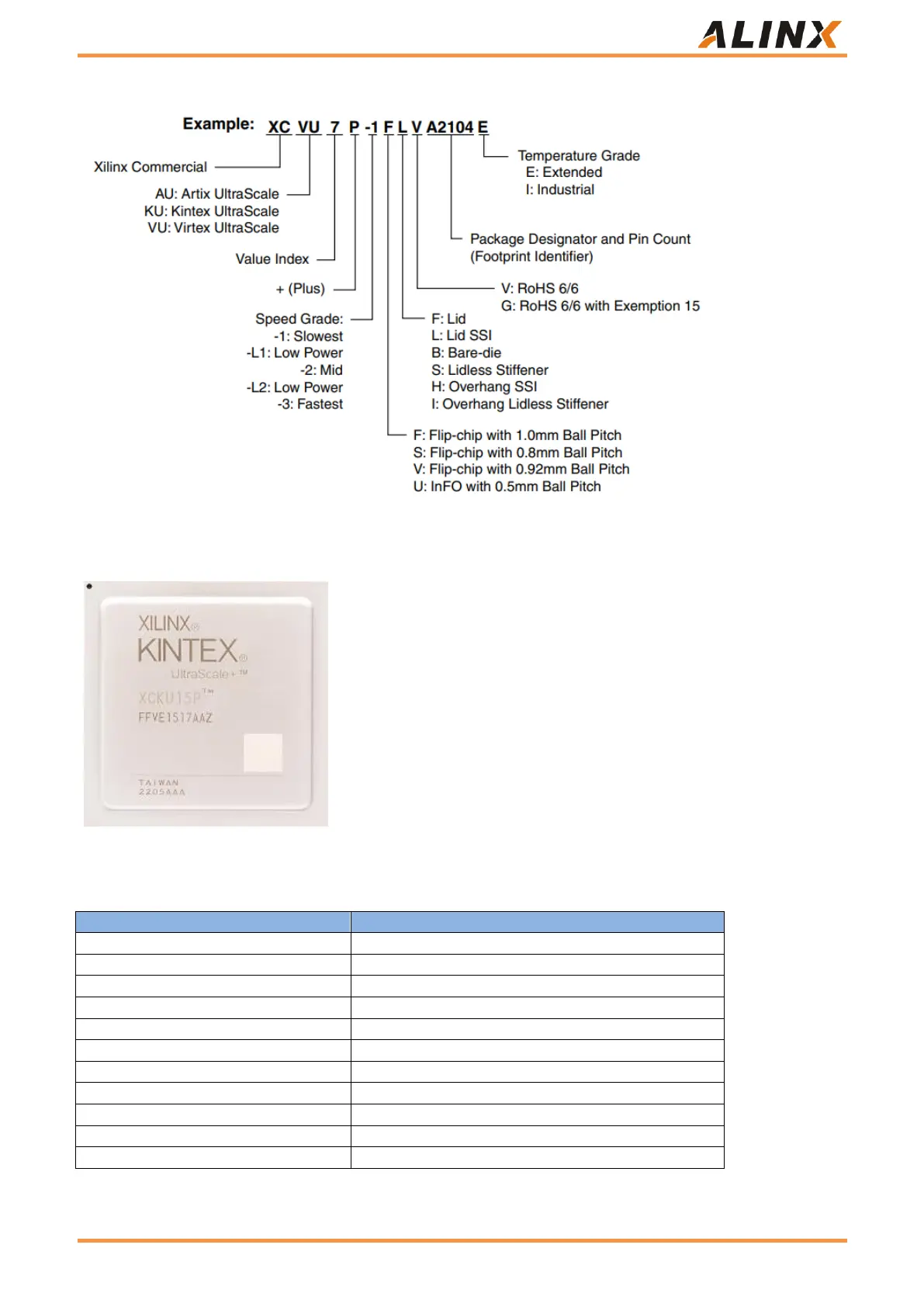

Figure 4: Ordering Information
Figure 5 is the physical picture of the FPGA chip used in the development board.
Figure 5: Physical FPGA chip
The main parameters of the FPGA chip are as follows:
Name
Specific parameters
Logic Cells
1143K
Trigger (FF)
1,045,440
LUTs
522,720
Total Block RAM
34.6Mb
DSP Slices
1968
CMTs
11
GTY/Gb/s
24/28.21Gb
GTH/Gb/s
32/16.3Gb
PCIe Gen3 x16
1
Speed rating
-2
Temperature class
Industrial grade
Table 1: Main parameters of the FPGA chip
