6 Electronic Door Fittings of the PegaSys Series

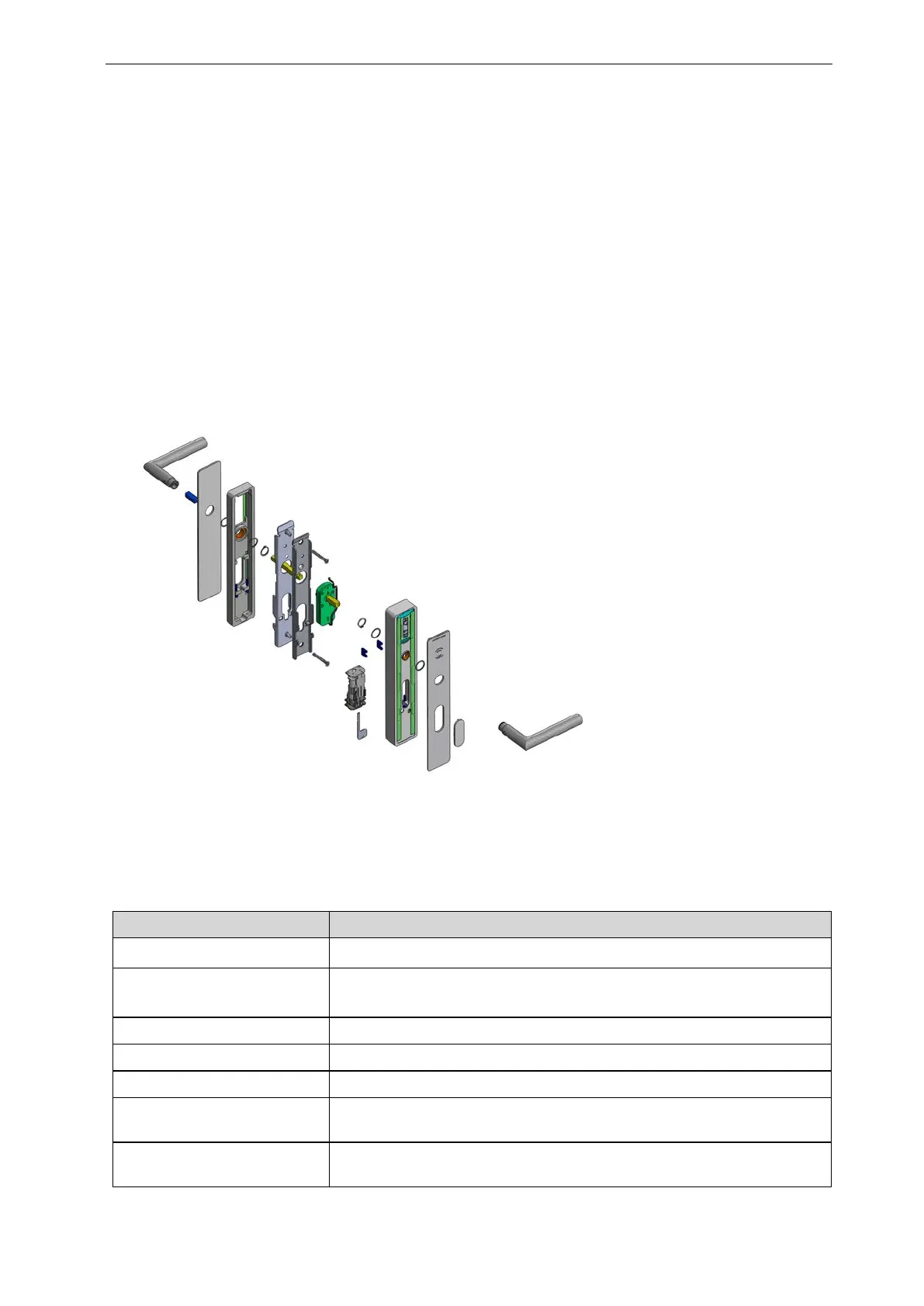

The electronic door fitting consists of the following components:
1
Electronics
5
Mounting plate, stainless steel
2
Lock box with coupling mechanism
6
Battery case
3
Adapter for square spindle
7
Housing, stainless steel
4
Square spindle for lever handle
The PegaSys 2.1 fittings are supplied with door handles from the NT 181/EST 41, NT 191/EST 51, NT
291/EST 21, NT 1182/EST 1141, NT 1292/EST 1121 or 1171 series, or with pivoted support and additional
square spindle set.
The door handle and the stainless steel exterior door plate are permanently connected with each other by a
plain bearing with minimum tolerance and a retaining ring.
The fittings of the Office series are supplied with door handles from the 291, 1291, 281 and 1281 series.
1.1.1 Design of the Office series
Design of the electronic door fitting of the Office Series.
Right side: Electronic door fitting, battery case and lock box
Left side: Interior fitting
1.2 Technical data
1.2.1 Technical data PegaSys 2.1
General data
Housing material Solid housing made of high-grade steel, 1.8 mm thick
Total weight PegaSys B 2.1: approx. 1600 g
PegaSys S 2.1: approx. 1400 g
Available backset Min. 30 mm
Square spindles 7, 7.5, 8, 8.5, 9, 10 mm
Center-to-center distance 70, 72, 74, 78, 85, 88, 90, 92 mm
Locks Standard locks equipped with lever retracting the latch bolt to cylinder
locks, self-locking panic locks, locks with "security function" E
Emergency opening By means of equipped cylinders or simultaneously locking mechanical
cylinders (optionally also available without cylinder cutout)
