Electronic Door Fittings of the PegaSys Series 17

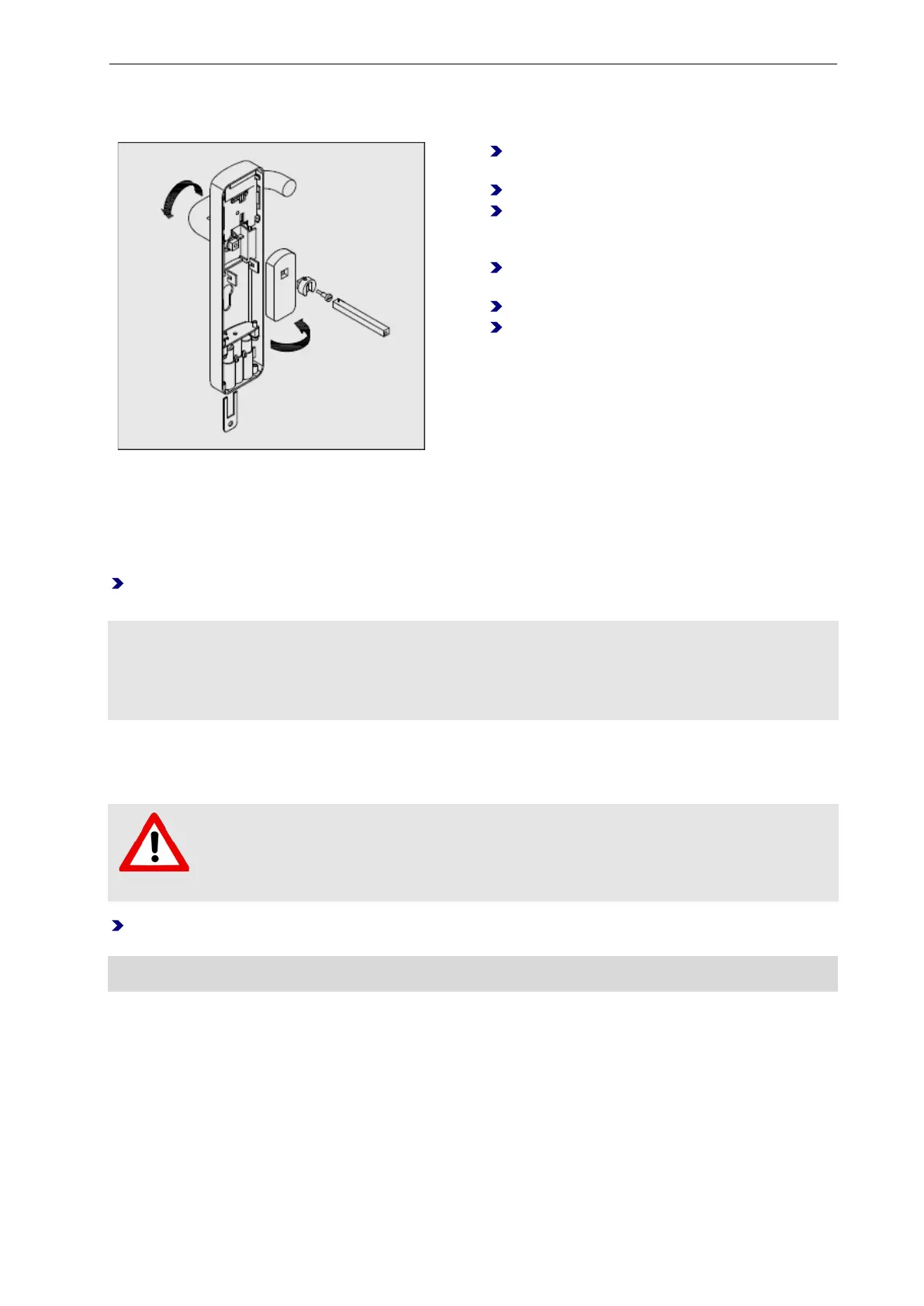

Changing the lever handling
To change the lever handling of a PegaSys door fitting, proceed as follows:
Use a flat-bladed screw driver to loosen the
adapter screw.
Pull off the adapter.
Separate the lock box from the square
spindle and rotate the door handle and lock
box by 180 degrees.
Fasten the lock box and the adapter (opening
at the bottom) again by tightening the screw.
Reposition the wedges at the sides.
Position the lock box cables in such a way
that they do not form an obstruction when the
profile cylinder is installed later.
1.3.2 Installation types
Drill-through mounting or screw-on mounting
The installation type depends on the design of the door and on whether the battery is installed on the inside
or on the outside of the door.
Check whether you can drill through the door leaf or whether you have to use the screw-on mounting
method.
If you can drill through the door leaf, the PegaSys door fitting on the outside is bolted to the rose fitting or
bottom part of the plate on the inside.
When the screw-on mounting method is used, the PegaSys door fitting is hooked onto a mounting plate
that is screwed onto the door leaf.
"Drill-through" installation type
This installation type is suitable for standard doors made of wood, plastic and metal.
This installation type has not been approved for fire protection doors. Observe the statutory
stipulations.
Depending on the fittings used, drill the holes for mounting the PegaSys door fitting in the door leaf. The
PegaSys door fitting is screw-mounted to the interior fitting through these holes.
Recommendation: Use the hole gage. If you use the scribing template, proceed analogously as
applicable.
