16 Electronic Door Fittings of the PegaSys Series
Preparations for installation: Checking the cylinder length

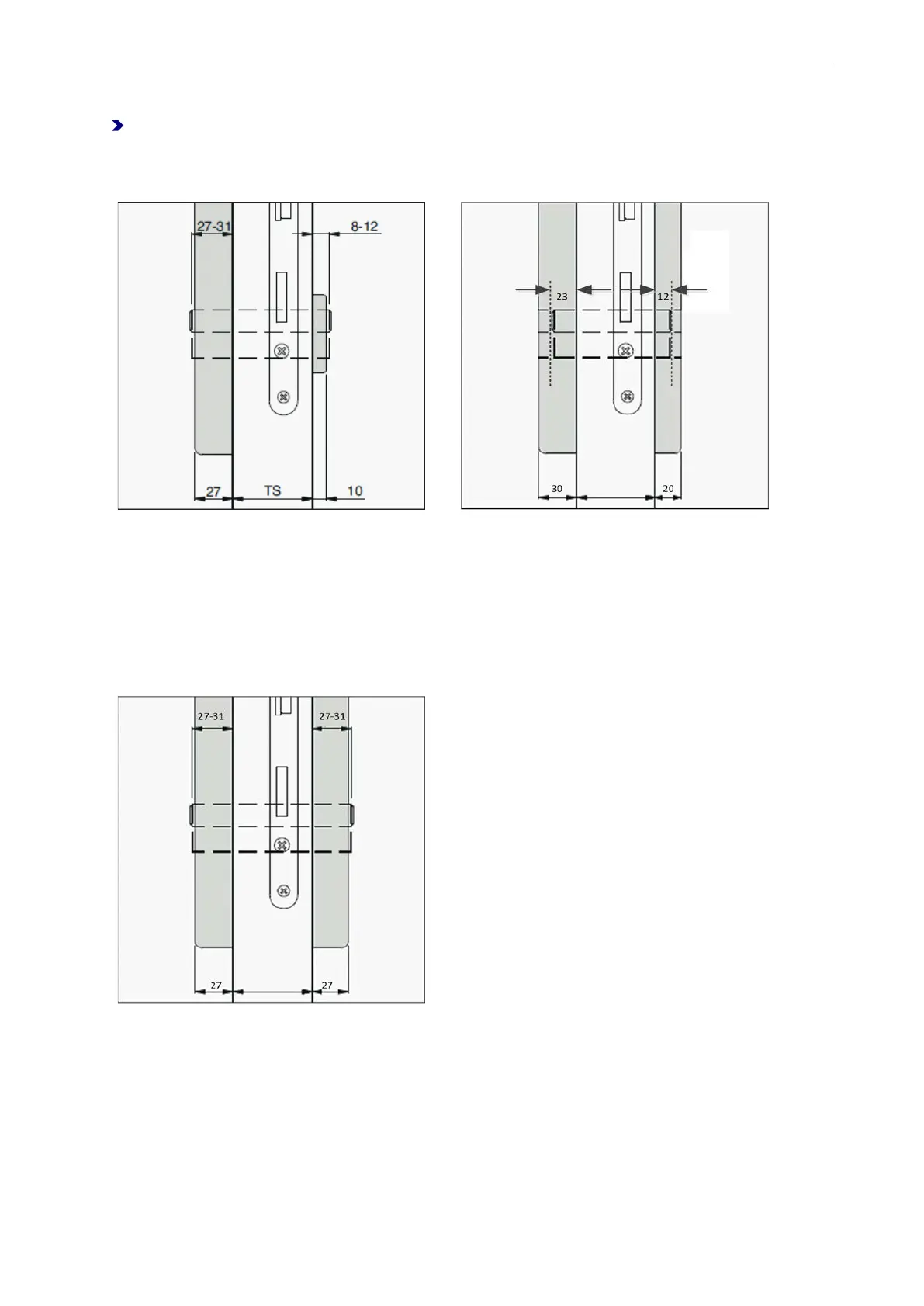

Check the cylinder length.
For PegaSys 2.1 For Office Series
§ The profile cylinder must jut out by at least 27
– 31 mm at the exterior fitting (on the left in
the illustration) and by at least 8 – 12 mm at
the interior fitting (on the right in the
illustration).
§
The maximum the cylinder may jut out is 23 mm on
the outside (on the left in the illustration)
on the inside (on the right in the illustration).
For Back-to-Back mounting and mounting
with inside battery case / Variant 1:
self-locking
§ For these installation types, the profile
cylinder has to jut out by 27 -
sides.
