Electronic Door Fittings of the PegaSys Series 15

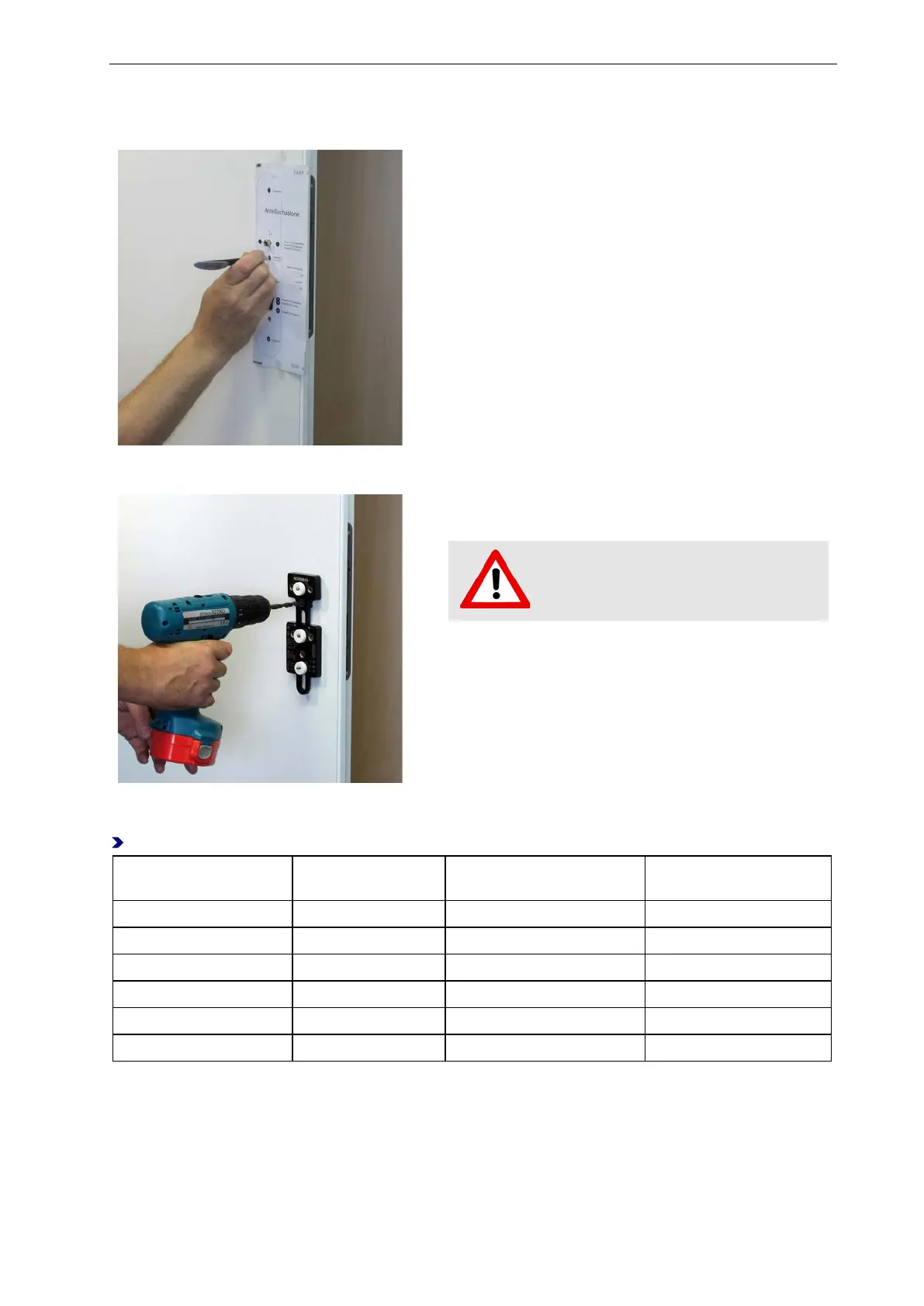

Using scribing templates or hole gages
Marking the bore holes using the scribing template
Method for installing a small number of PegaSys door
fittings.
Drilling bore holes using the hole gage
This is the preferable method for installing a large
number of fittings.
Always drill from both sides.
Preparations for installation: Checking the length of the screws
Use the following table to check the screw length:
Screw length (mm) Door thickness
(mm)
Screw length (mm) Door thickness (mm)
45
37 - 41
75
67 - 71
50
42 - 46
80
72 - 76
55
47 - 51
85
77 - 81
60
52 - 56
90
82 - 86
65
57 - 61
95
87 - 91
70
62 - 66
100
92 - 96
