Electronic Lock Cylinders of the PegaSys Series 41

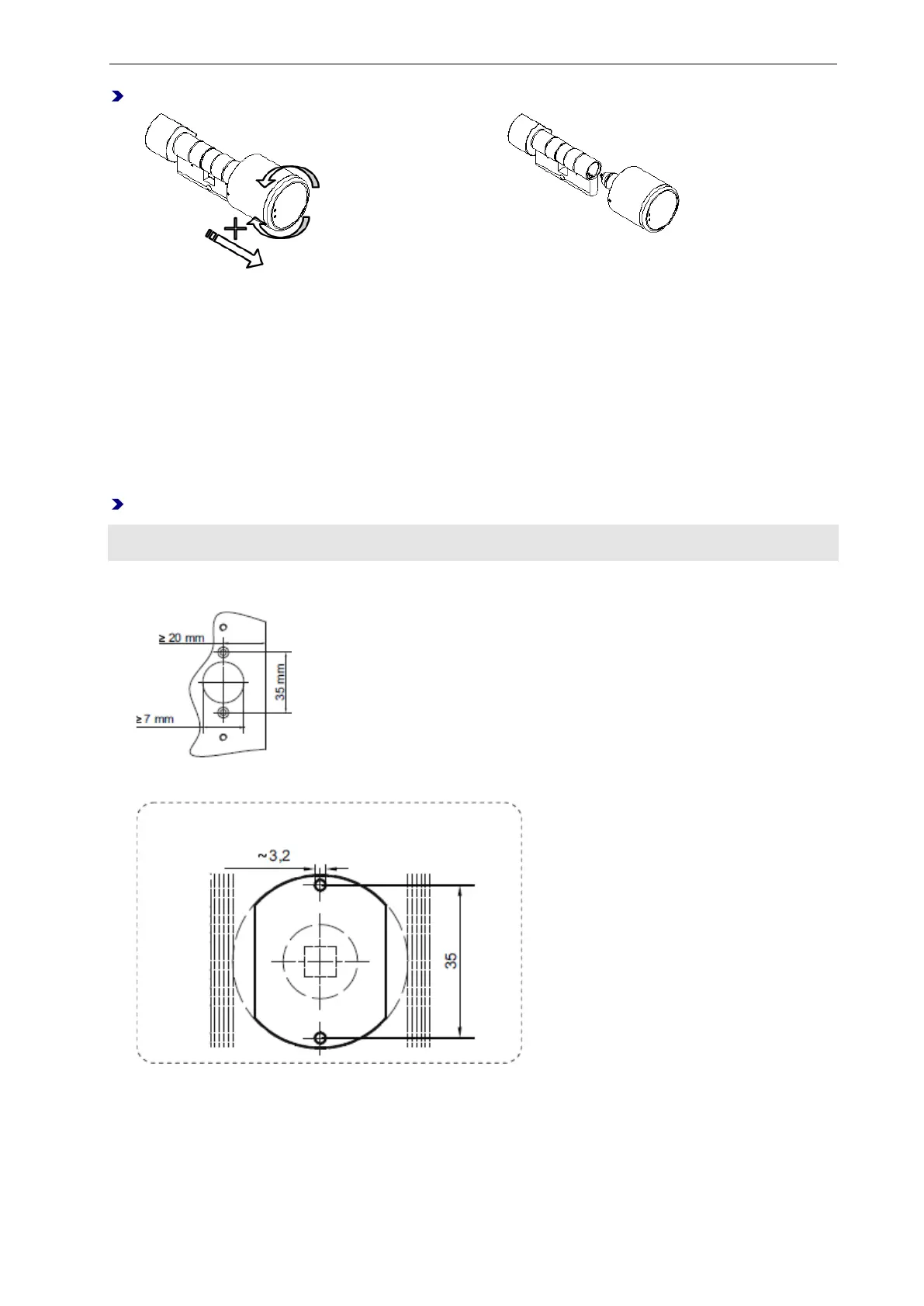

Dismantle the knob by turning it back and forth slightly while simultaneously pulling it gently.
Type 2, type 3, type 4
For type 2, 3 and 4, the same workflows as for type 1 apply analogously.
2.2.5 Installing the electronic knob for a furniture lock
General information
§ Usually the knob fits on all customary furniture locks with a 7 mm square hole.
§ Suitable for a door leaf thickness of 13 to 20 mm (depending on the respective lock type).
Installation
Make the appropriate drill holes (approx. 3.2 mm) for the fastening screws of the furniture lock adapter.
Make sure that the required min. dimensions are adhered to. Use the drilling template if necessary.
Min. dimensions:
Drilling template:
