18 Electronic Door Fittings of the PegaSys Series

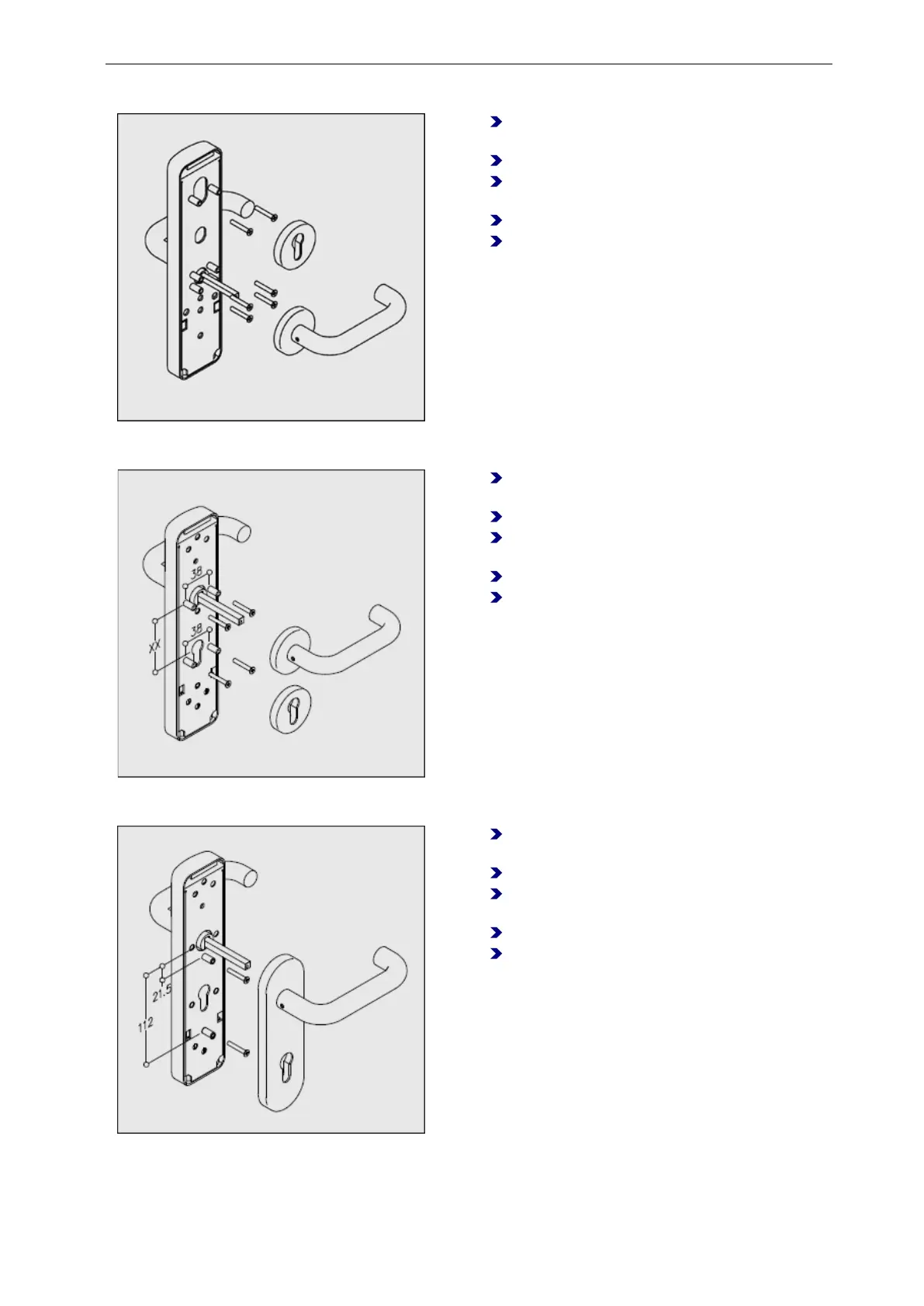

Drilling door leaf for rose fitting (6 ×)
Set the hole gage in acc. with the
corresponding operating instructions.
Insert the hole gage into the mortise lock.
Align the hole gage by means of a water level
and fasten it with a quick clamp.
Drill 7 mm hole from both sides.
Drill 6 holes for rose fittings.
Drilling door leaf for rose fitting (4 ×)
Set the hole gage in acc. with the
corresponding operating instructions.
Insert the hole gage into the mortise lock.
Align the hole gage by means of a water level
and fasten it with a quick clamp.
Drill 7 mm hole from both sides.
Drill 4 holes for rose fittings.
Drilling door leaf for short plate
Set the hole gage in acc. with the
corresponding operating instructions.
Insert the hole gage into the mortise lock.
Align the hole gage by means of a water level
and fasten it with a quick clamp.
Drill 7 mm hole from both sides.
Drill 2 holes for short plate.
