Electronic Door Fittings of the PegaSys Series 19

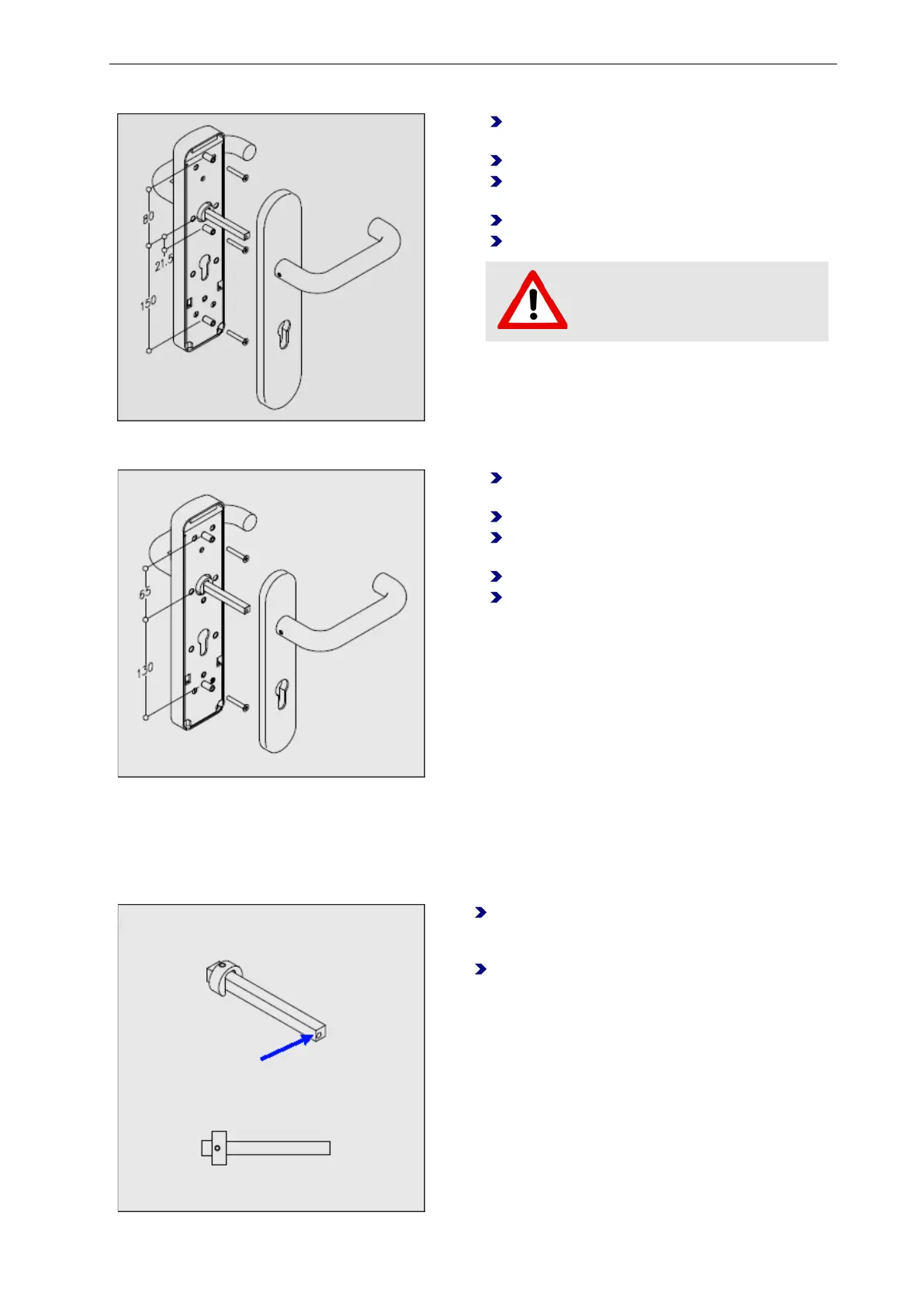

Drilling door leaf for long plate (Germany)
Set the hole gage in acc. with the
corresponding operating instructions.
Insert the hole gage into the mortise lock.
Align the hole gage by means of a water level
and fasten it with a quick clamp.
Drill 7 mm hole from both sides.
Drill 3 holes for long plate.
The lower hole is not standardized.
Drilling door leaf for long plate (France)
Set the hole gage in acc. with the
corresponding operating instructions.
Insert the hole gage into the mortise lock.
Align the hole gage by means of a water level
and fasten it with a quick clamp.
Drill 7 mm hole from both sides.
Drill 2 holes for long plate.
See also
Notes on Outdoor Installation ................................................................................................. 23
Inserting the square spindle for the lever handle
Insert the square spindle into the lock follower
(pin of the spindle on the side with the PegaSys
fitting, thin wall towards the latch bolt).
Hang fitting onto the pin of the spindle and
position it against the door leaf.
