Electronic Door Fittings of the PegaSys Series 23

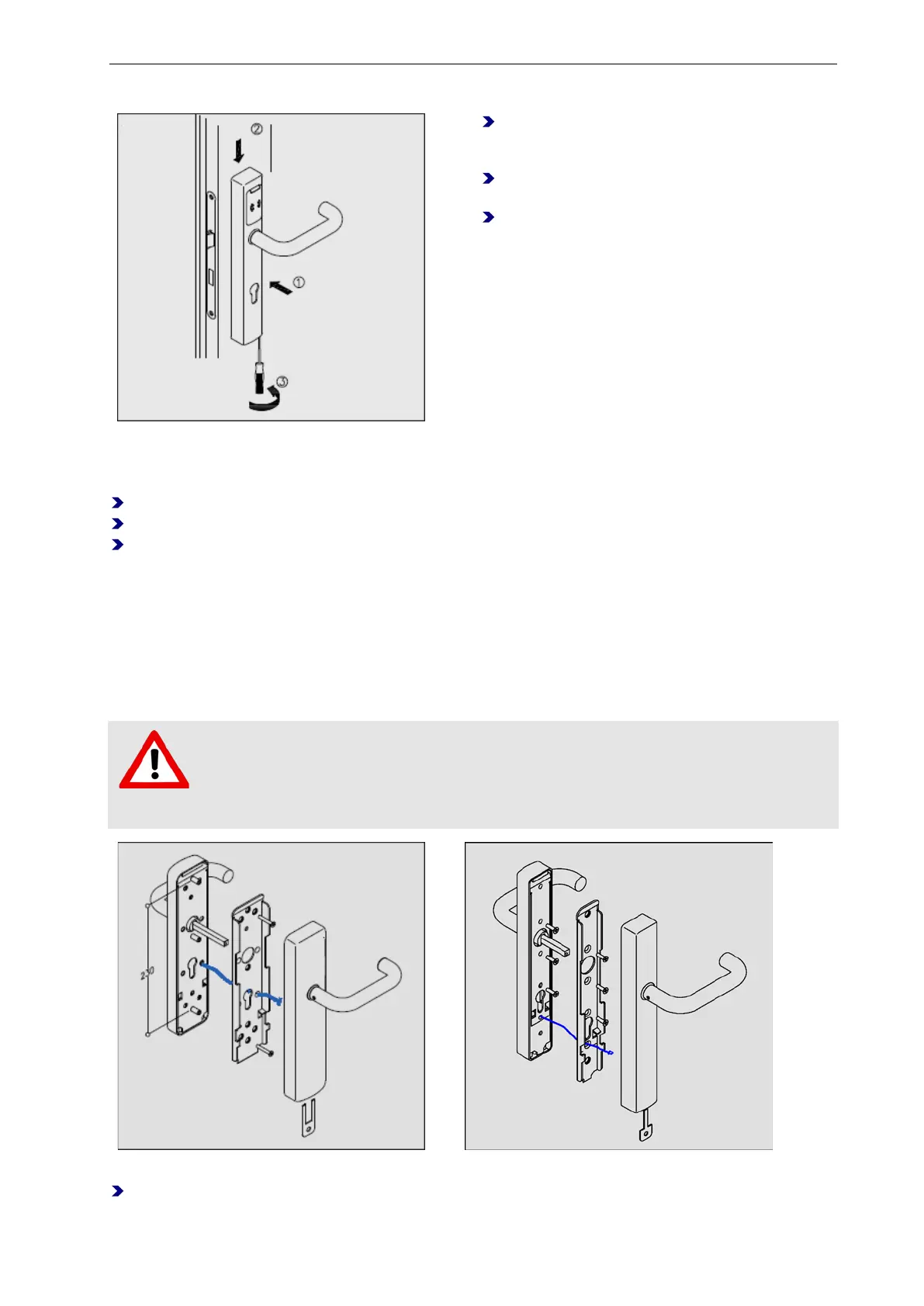

Hanging in the tubular frame fitting
Insert the square spindle into the lock follower
(pin of the spindle on the side with the
PegaSys fitting, thin wall towards the lock).
Hang fitting onto the pin of the spindle and
position it against the door leaf.
From below, fasten the fitting onto the
mounting plate using a screw driver. To this
end, slightly tighten the fixing screws.
Notes on Outdoor Installation
For outdoor installation, use the included rubber seal to protect the PegaSys casing against water intrusion.
Align the outer edge of the seal to the edge of the door and center the punch-outs.
Stick the seal onto the door.
Install the PegaSys door fitting.
Weatherproof cover
A weatherproof cover is also available as a separate accessory.
§ When using the weatherproof cover, stick the seal to the side underneath the roof projection.
Mounting with inside battery case / Variant 1: self-locking - for outdoor use
Mounting the PegaSys door fitting on the door
For outdoor use, the battery case has to be mounted in the protected indoor area!
The battery cable leads from the protected indoor area to the outdoor electronics.
Two-sided wide PegaSys (AA batteries) Two-sided narrow PegaSys (AAA batteries)
From the inside, tighten both mounting plates onto each other.
