22 Electronic Door Fittings of the PegaSys Series

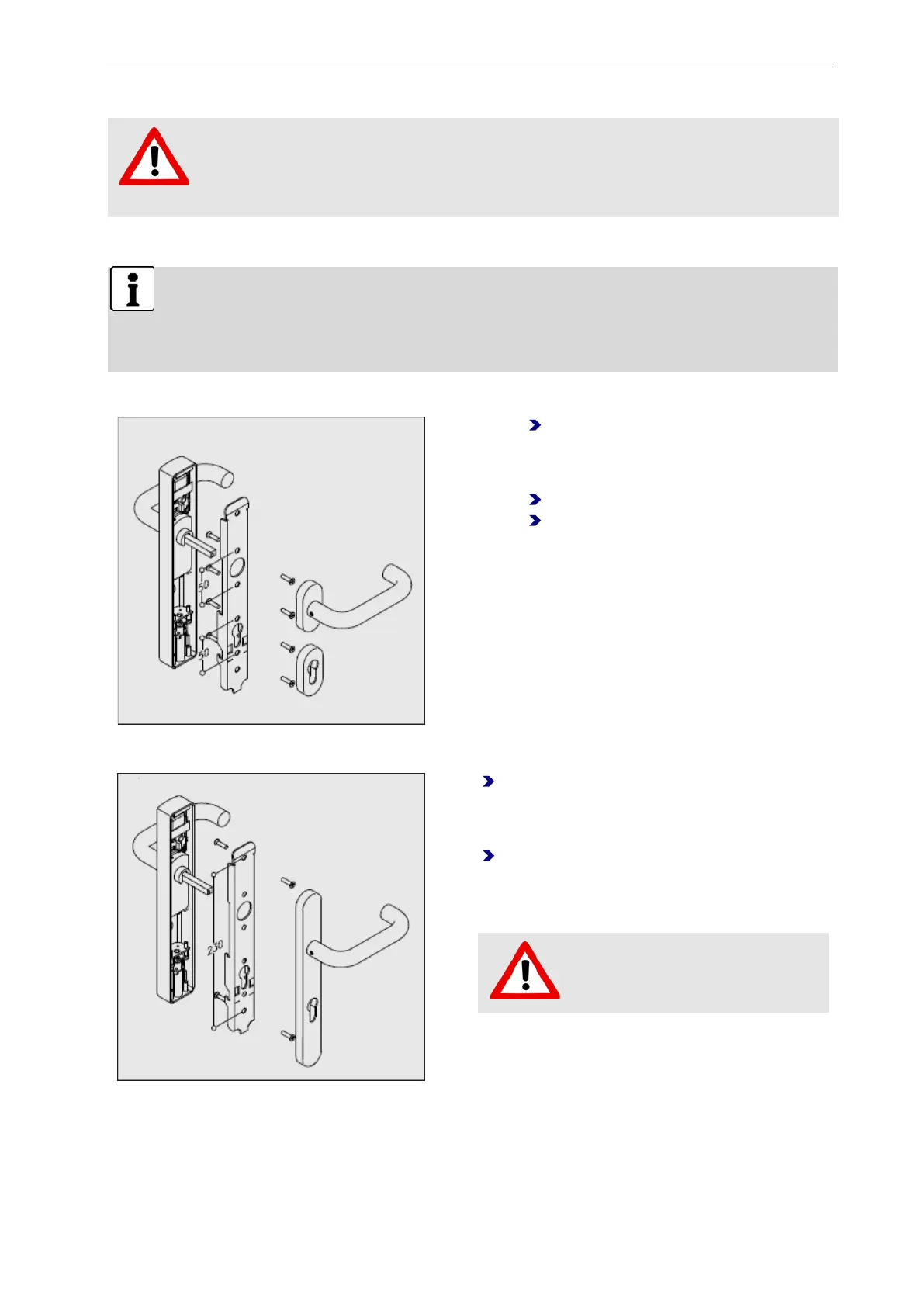

Screw-on mounting for doors with tubular frames
This installation type has not been approved for fire protection doors. Observe the statutory
stipulations.
When using the screw-on mounting method, fasten the mounting plate for the PegaSys door fitting at the
door leaf. Depending on the properties of the door, use appropriate fastening material.
If press-fit sleeves are equipped, the press-fit sleeves have to be flush with the surface of the door
leaf.
If press-fit sleeves have to be installed, use countersunk press-fit sleeves, M5x16. These press-fit sleeves
also have to be flush with the surface of the door leaf.
Tubular frame fitting: Drilling for »oval rose«
If no threaded holes are available yet,
center the scribing templates or
mounting plate in the lock follower by
means of the centering gage.
Align the scribing template.
Mark the drill holes and drill the holes.
You can use the existing fastenings for the
interior fitting.
Important: When mounting this type of fitting
to doors with tubular frames, always use
press-fit sleeves and use screws at all four
points. Furthermore install the supplied
tapping screw (see drilling template for
PegaSys S 2.x)
Tubular frame fitting: Drilling for the »long plate«
Slip the scribing template onto the square
spindle, bring it into line with the vertical edge
of the door and fixate it in this position with
adhesive tape.
Mark the two drill holes and drill 7 mm hole
from both sides.
Please note: Alternatively the hole gauge can also
be used.
The lower hole is not standardized.
