Electronic Door Fittings of the PegaSys Series 21
Installation of the Office series
This installation type is suitable for standard doors made of wood, plastic and metal.
This installation type has not been approved for fire protection doors. Observe the statutory
stipulations.
Depending on the fittings used, drill the holes for mounting the Office fitting in the door leaf. The Office
fitting is screw-mounted to the interior fitting through these holes.
Recommendation: Use the hole gage. If you use the scribing template, proceed analogously as
applicable.
Set the hole gage in acc. with the corresponding operating instructions.
Insert the hole gage into the mortise lock.
Align the hole gage by means of a water level and fasten it with a quick clamp.
Drill 7 mm hole from both sides. (2 × drill)

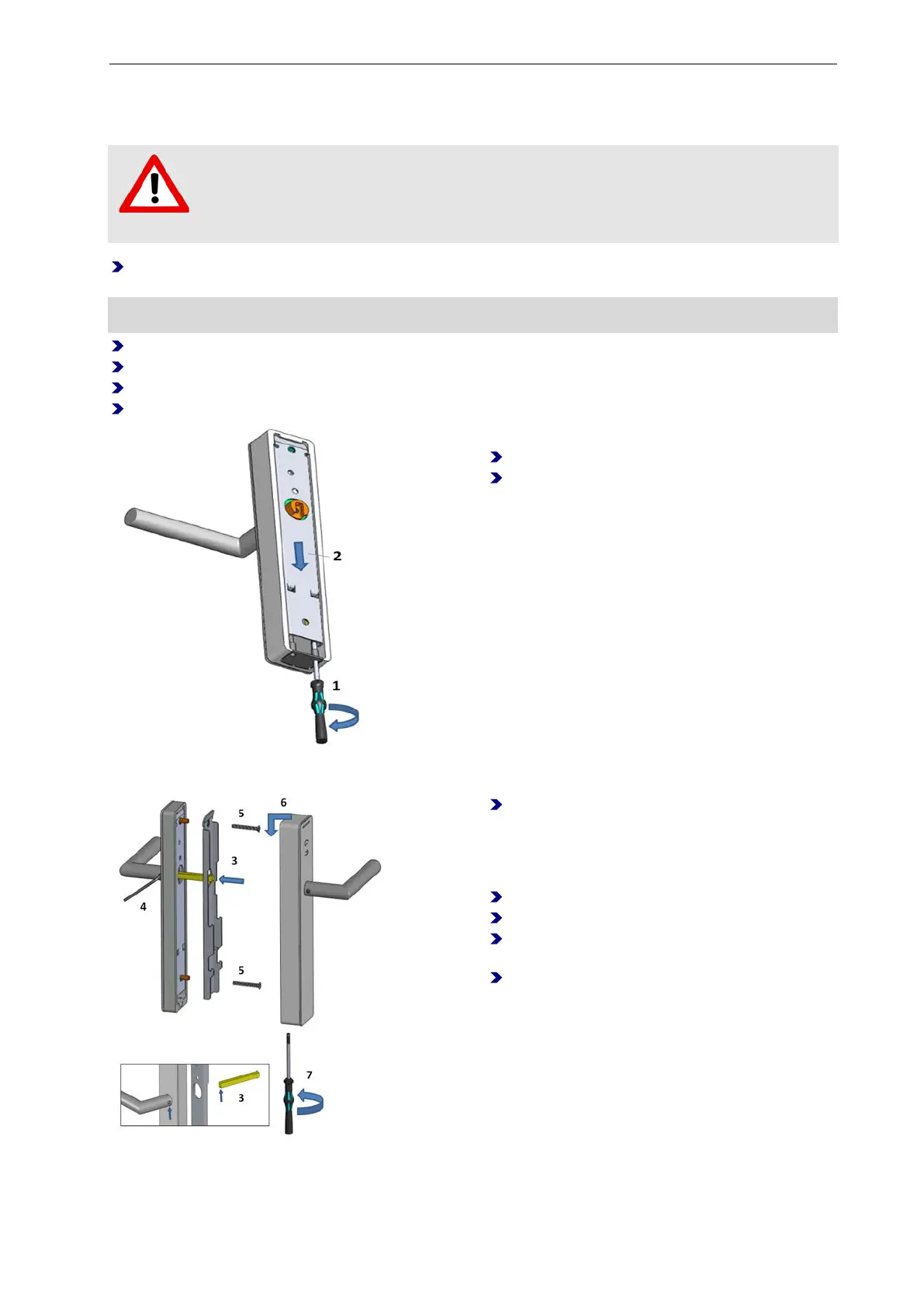

Further installation:
(1) Loosen screws.
(2) Remove base plate from exterior fitting.
(3) Position interior fitting against the door
leaf and insert square spindle flush with the
door leaf into the lock follower (pin of the
square spindle on the side of interior fitting,
thin wall towards the latch bolt).
(4) Tighten socket head screw.
(5) Screw base plate to interior fitting.
(6) Hang on exterior fitting and position it
against the door leaf.
(7) Tighten the screws.
