Electronic Door Fittings of the PegaSys Series 25

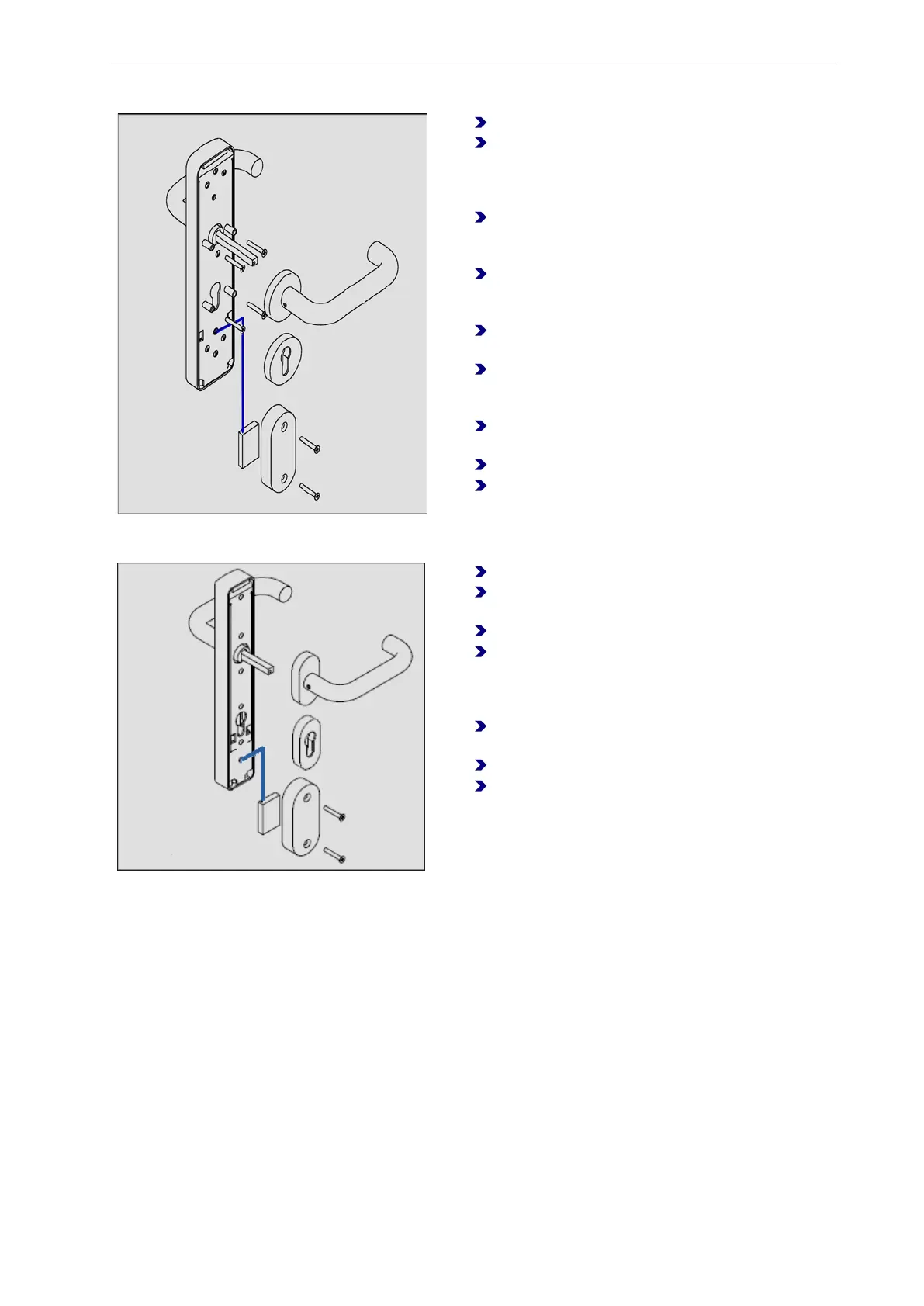

Single-sided, wide PegaSys door fitting
Drill holes into the door leaf.
Determine an appropriate location below the
cover plate of the interior fitting and establish a
connection to the fitting. The drill hole depends
on the door design and the lock used.
Lead the battery cable through the drilled hole
to the outside and connect it with the
electronics.
Insert the square spindle into the lock follower
(pin of the spindle on the side with the PegaSys
fitting, thin wall towards the latch bolt).
Hang fitting onto the pin of the spindle and
position it against the door leaf.
With the supplied screw set, screw on the
bottom parts of the rose fitting or plate until they
are hand-tight.
Screw tight the set screw in the interior door
handle, make sure that it is flush.
Clamp on rose or plate covering.
Attach the battery case cover below the interior
fitting.
Single-sided, narrow PegaSys door fitting
Drill holes into the door leaf.
Align the mounting plate of the exterior fitting
and bolt it to the door.
Fasten the door handle of the interior fitting.
Position the door handle of the interior door
plate correctly and, from the exterior side of the
door, push the square spindle through the door
lock and into the interior lever handle.
Lead the battery cable from the inside to the
outside and connect with the electronics cable.
Hook in the fitting and bolt it into place.
Position and fasten the covering.
