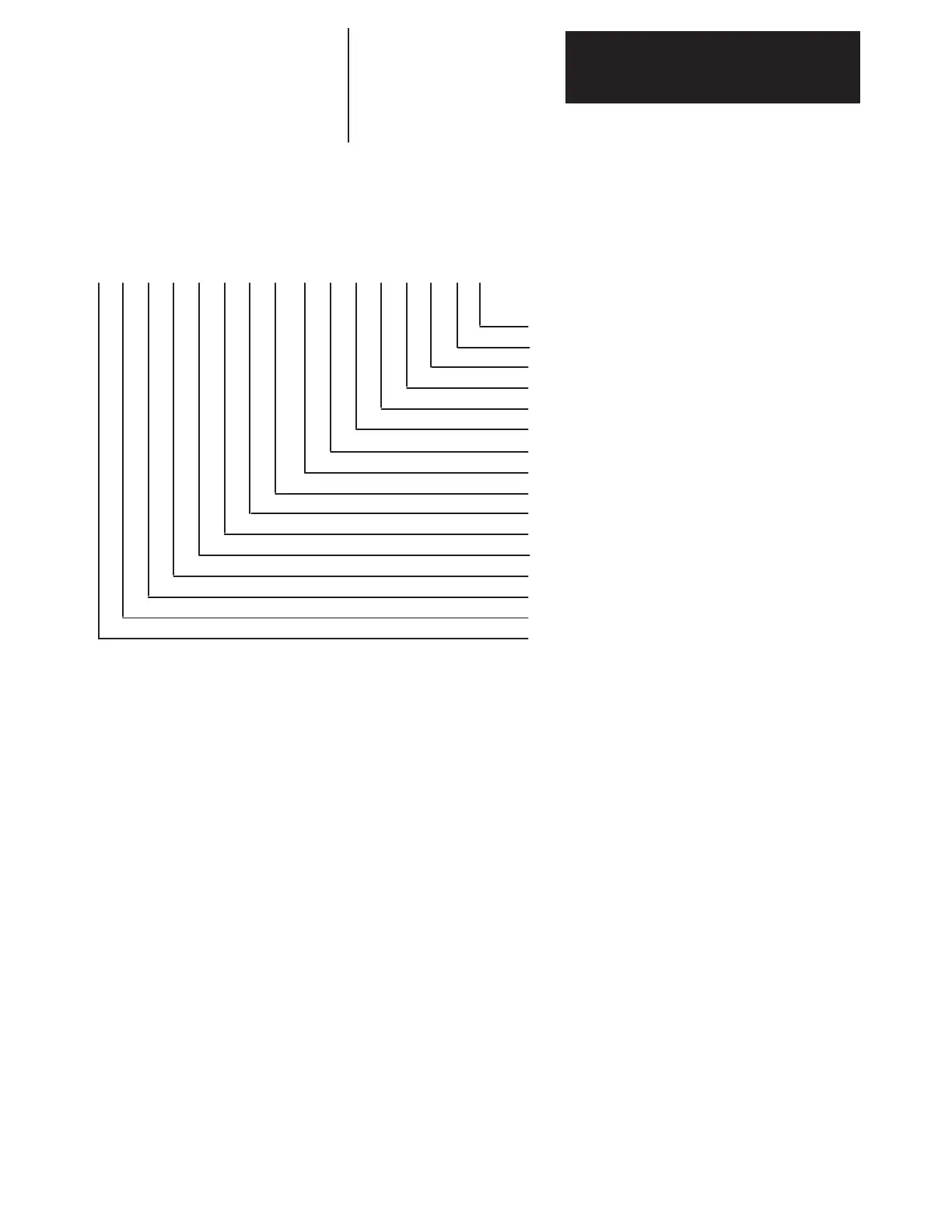

Figure 6.8
Parameter 85 (VP Configurable Warning Status (bits))
Feedback Loss
Inverter Overtemp Pending
Motor Overtemperature Tripped
Motor Overload Pending – IIT
Motor Overload Trip – IIT
Motor Stalled
External Fault
RMS Fault
NOT USED
Parameter Limit
Math Limit
Dynamic Brake Resistor Overtemperature
AC Motor Contactor Failure
Inverter Overload Pending (IT)
Drive–to–Drive communication fault
Inverter Overload Foldback (IT)
O O O O O O O O. O O O O O O O O
Bit#
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
This word parameter indicates conditions detected by the Velocity Processor (VP) that have been configured to report as
a Drive warning condition. Each configuration bit matches the bit definitions of Parameters 83, 88 and 89. When a bit is
set to “1”, the corresponding condition in the Drive is true, otherwise the condition is false.
